Mechanical

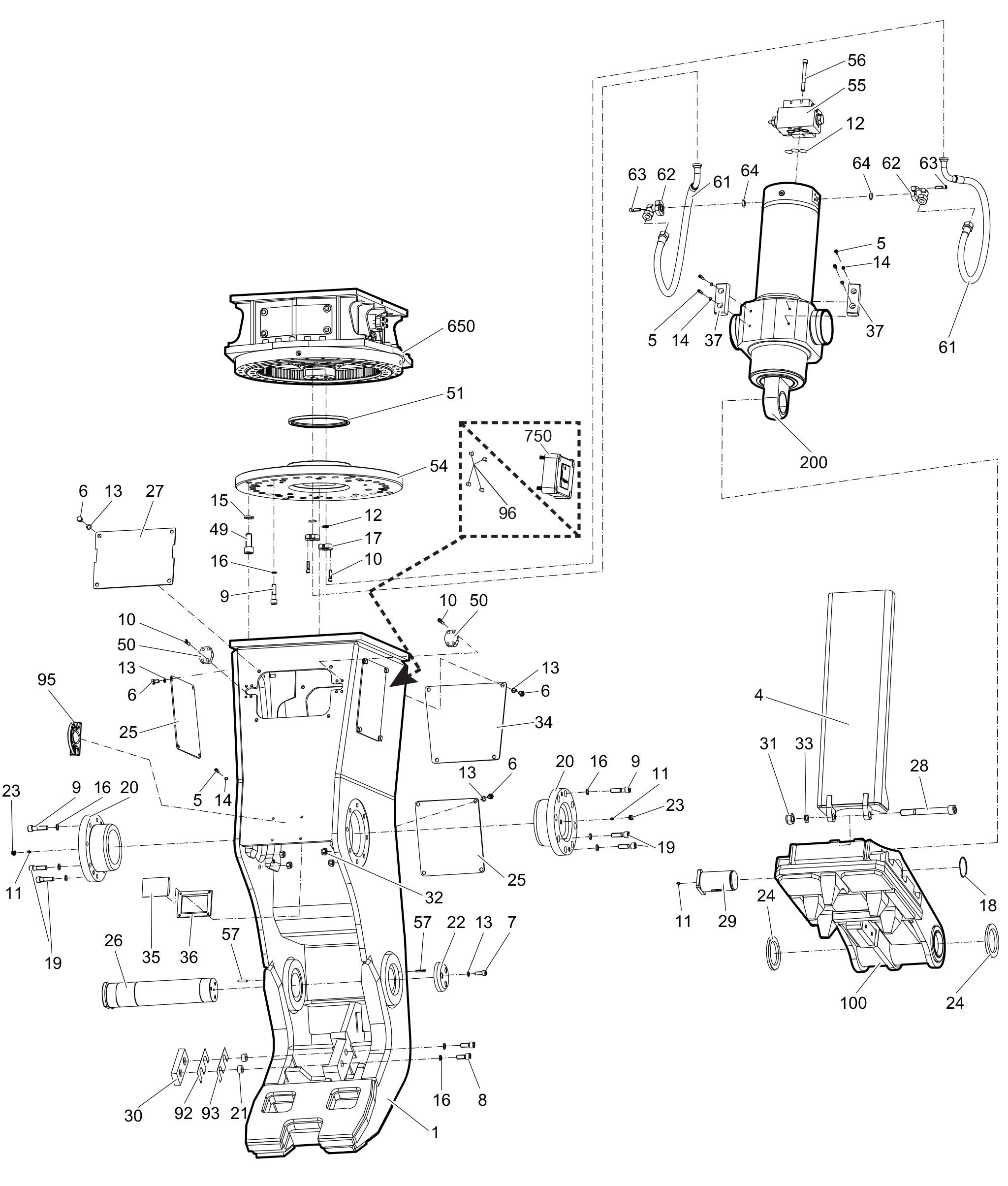

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363119420 | Housing | 1 | with item 95 and 96 | |||
| 3363112733 | Protective sheath | 1 | ||||
| 3360103745 | ALLEN SCREW | 8 | ||||
| 3360105141 | HEXAGON HEAD BOLT | 20 | ||||
| 3360106079 | ALLEN SCREW | 3 | ||||
| 3360106092 | ALLEN SCREW | 2 | ||||
| 3360106098 | ALLEN SCREW | 44 | ||||
| 3360026513 | ALLEN SCREW | 16 | ||||
| 3360209834 | GREASE NIPPLE | 3 | ||||
| 3360314370 | O-RING | 5 | ||||
| 3361333703 | PAIR OF LOCK WASHERS | 23 | ||||
| 3361850745 | PAIR OF LOCK WASHERS | 8 | ||||
| 3361850747 | PAIR OF LOCK WASHERS | 16 | ||||
| 3361850748 | PAIR OF LOCK WASHERS | 50 | ||||
| 3361853208 | FLANGE HALF | 4 | ||||
| 3362328072 | LOCK RING | 1 | ||||
| 3362328117 | ALLEN SCREW | 4 | ||||
| 3363088851 | Cap | 2 | ||||
| 3363035107 | LOCK RING | 2 | ||||
| 3363069911 | CAP | 1 | ||||
| 3363070084 | THREADED PLUG | 2 | ||||
| 3363070088 | DISK | 2 | ||||
| 3363082455 | PLATE | 3 | ||||
| 3363082491 | Bolt | 1 | ||||
| 3363112732 | PLATE | 1 | ||||
| 3363111908 | ALLEN SCREW | 1 | ||||
| 3363086439 | BOLT | 1 | ||||
| 3363086455 | CUTTER BLADE | 1 | ||||
| 3363122939 | HEXAGON NUT | 1 | ||||
| 3363087619 | HEXAGON NUT | 4 | ||||
| 3360108520 | DISK | 1 | ||||
| 3363088269 | PLATE | 1 | ||||
| 3363088385 | GUIDE PART | 1 | ||||
| 3363088387 | SUPPORT | 1 | ||||
| 3363088389 | GUIDE PART | 2 | ||||
| 3363083003 | Allen screw | 16 | ||||
| 3363034040 | BLIND FLANGE | 2 | with 4 times item 10 | |||
| 3363070083 | SEAL | 1 | ||||
| 3363111963 | Plate | 1 | ||||
| 3363103691 | RAPID MOVEMENT VALVE | 1 | ||||
| 3363091092 | ALLEN SCREW | 4 | ||||
| 3363098104 | SPRING DOWEL SLEEVE | 2 | ||||
| 3363117256 | Hydraulic hose | 2 | ||||
| 3362263593 | FITTING complete | 2 | with 4 times item 63 and 1 times item 64 | |||
| 3360026513 | ALLEN SCREW | 8 | ||||
| 3360314370 | O-RING | 2 | ||||
| 3363092403 | SHIM | 1 | 0.2 mm (0.01 in.) thick, as required | |||
| 3363091026 | SHIM | 1 | 1.0 mm (0.04 in.) thick, as required | |||
| 3363111994 | LIFTING EYE | 1 | professional welding process necessary | |||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | only for hydraulic pulverizers without HATCON | |||
| 3363112730 | Pulverizer jaw complete | 1 | see separate chapter | |||
| 3363112731 | Hydraulic cylinder | 1 | see separate chapter | |||
| 3363104175 | Upper part complete | 1 | see separate chapter | |||
| 3315439180 | HATCON | 1 | only for hydraulic pulverizers with HATCON / see separate chapter |
