Mechanical
Spare Parts

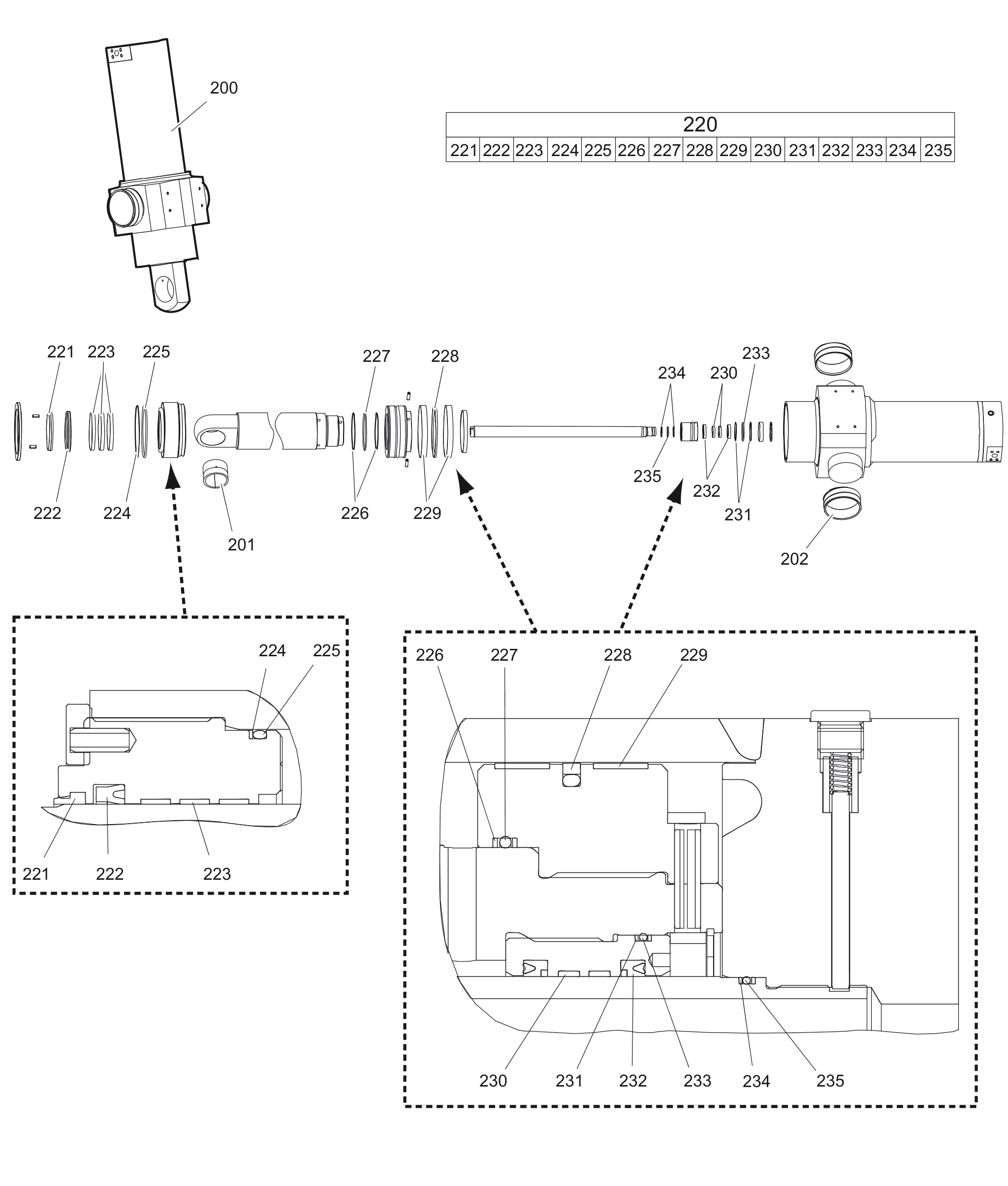

Hydraulic cylinder
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363112731 | Hydraulic cylinder | 1 | with parts item 201 to 235 | |||
| 3363112970 | Clamping bush | 1 | ||||
| 3363069873 | Clamping bush | 2 | ||||
| 3363112987 | Seal kit | 1 | ||||
| - | Wiper | 1 | ||||
| - | Seal | 1 | ||||
| - | Guide ring | 3 | ||||
| - | Back-up ring | 1 | ||||
| - | O-ring | 1 | ||||
| - | Back-up ring | 2 | ||||
| - | O-ring | 1 | ||||
| - | Seal | 1 | ||||
| - | Guide ring | 2 | ||||
| - | Guide ring | 2 | ||||
| - | Back-up ring | 2 | ||||
| - | Seal | 2 | ||||
| - | O-ring | 1 | ||||
| 3363112980 | BACK-UP RING | 2 | ||||
| - | O-ring | 1 |
