Spare Parts

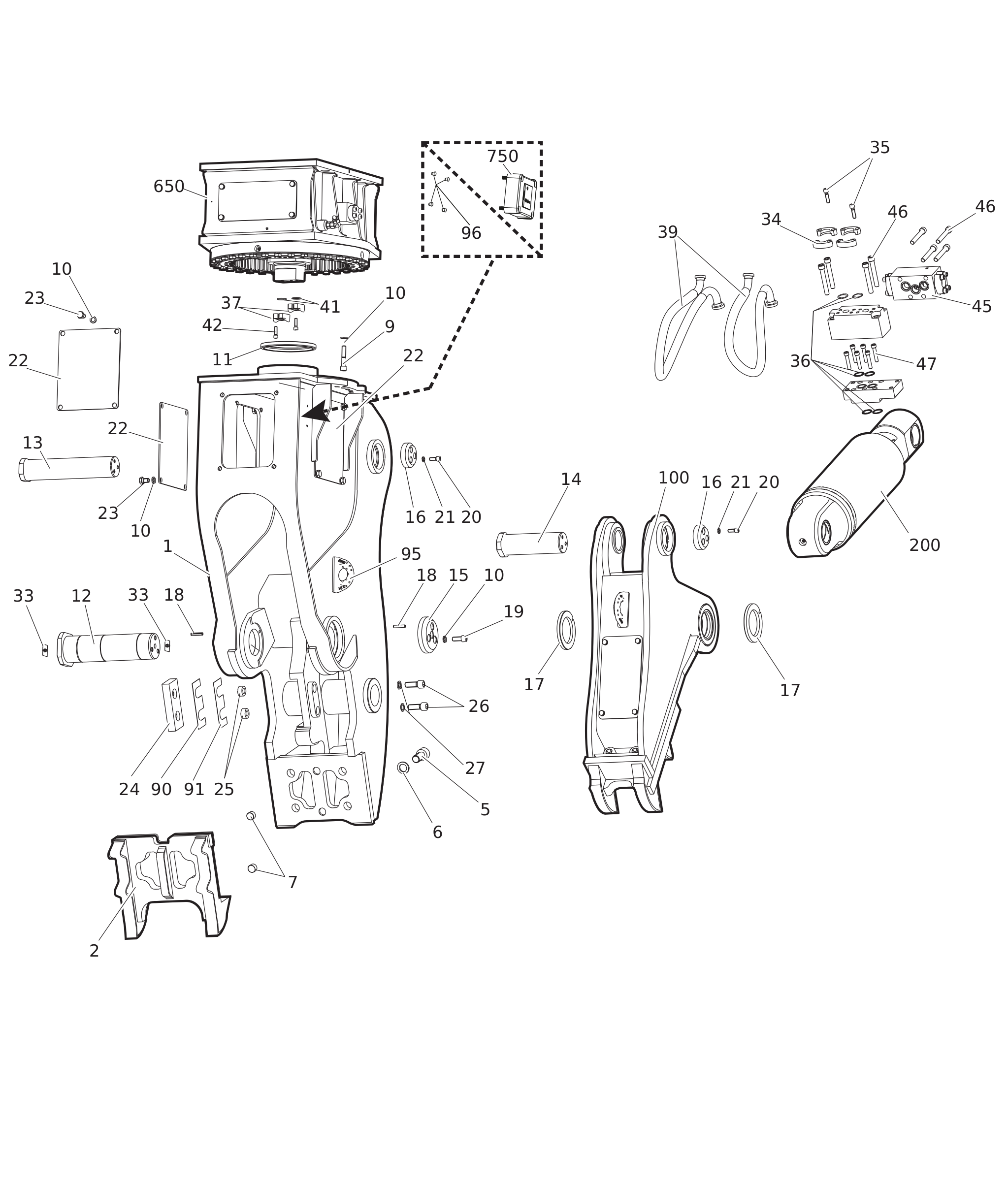

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363127292 | HOUSING | 1 | ||||
| 3363127849 | TOOTH PLATE | 1 | ||||
| 3360438210 | HEXAGON HEAD BOLT | 4 | ||||
| 3361850747 | PAIR OF LOCK WASHERS | 4 | ||||
| 3363086441 | LOCK PIN | 2 | ||||
| 3363070490 | ALLEN SCREW | 24 | ||||
| 3361333703 | LOCK WASHER | 39 | ||||
| 3363091934 | ROTARY SHAFT SEAL | 1 | ||||
| 3363127057 | BOLT | 1 | ||||
| 3363127056 | BOLT | 1 | ||||
| 3363127060 | BOLT | 1 | ||||
| 3363127059 | CAP | 1 | ||||
| 3363127058 | CAP | 2 | ||||
| 3363085879 | DISK | 2 | ||||
| 3363098104 | SPRING DOWEL SLEEVE | 2 | ||||
| 3360106079 | ALLEN SCREW | 3 | ||||
| 3360103751 | ALLEN SCREW | 6 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 6 | ||||
| 3363088313 | PLATE | 3 | ||||
| 3360105141 | HEXAGON HEAD BOLT | 12 | ||||
| 3363086455 | CUTTER BLADE | 1 | ||||
| 3363035107 | LOCK RING | 2 | ||||
| 3362328057 | ALLEN SCREW | 2 | ||||
| 3361850748 | LOCK WASHER | 2 | ||||
| 3360209834 | GREASE NIPPLE | 2 | ||||
| 3361853208 | FLANGE HALF | 4 | ||||
| 3360026513 | ALLEN SCREW | 8 | ||||
| 3360314370 | O-RING | 6 | ||||
| 3360995664 | FLANGE HALF | 4 | ||||
| 3363127325 | HYDRAULIC HOSE | 2 | ||||
| 3360314549 | O-RING | 2 | ||||
| 3360026393 | ALLEN SCREW | 8 | ||||
| 3363127125 | RAPID MOVEMENT VALVE | 1 | ||||
| - | ALLEN SCREW | 8 | ||||
| - | ALLEN SCREW | 6 | ||||
| 3363091026 | SHIM | 1 | ||||
| 3363092403 | SHIM | 1 | ||||
| 3363111994 | LIFTING EYE | 2 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | ||||
| 3363127195 | PULVERIZER JAW complete | 1 | ||||
| 3363127194 | HYDRAULIC CYLINDER complete | 1 | ||||
| 3363125715 | UPPER PART complete | 1 | ||||
| 3315439180 | HATCON | 1 | only for hydraulic pulverizers with HATCON / see separate chapter |
