Mechanical
Spare Parts

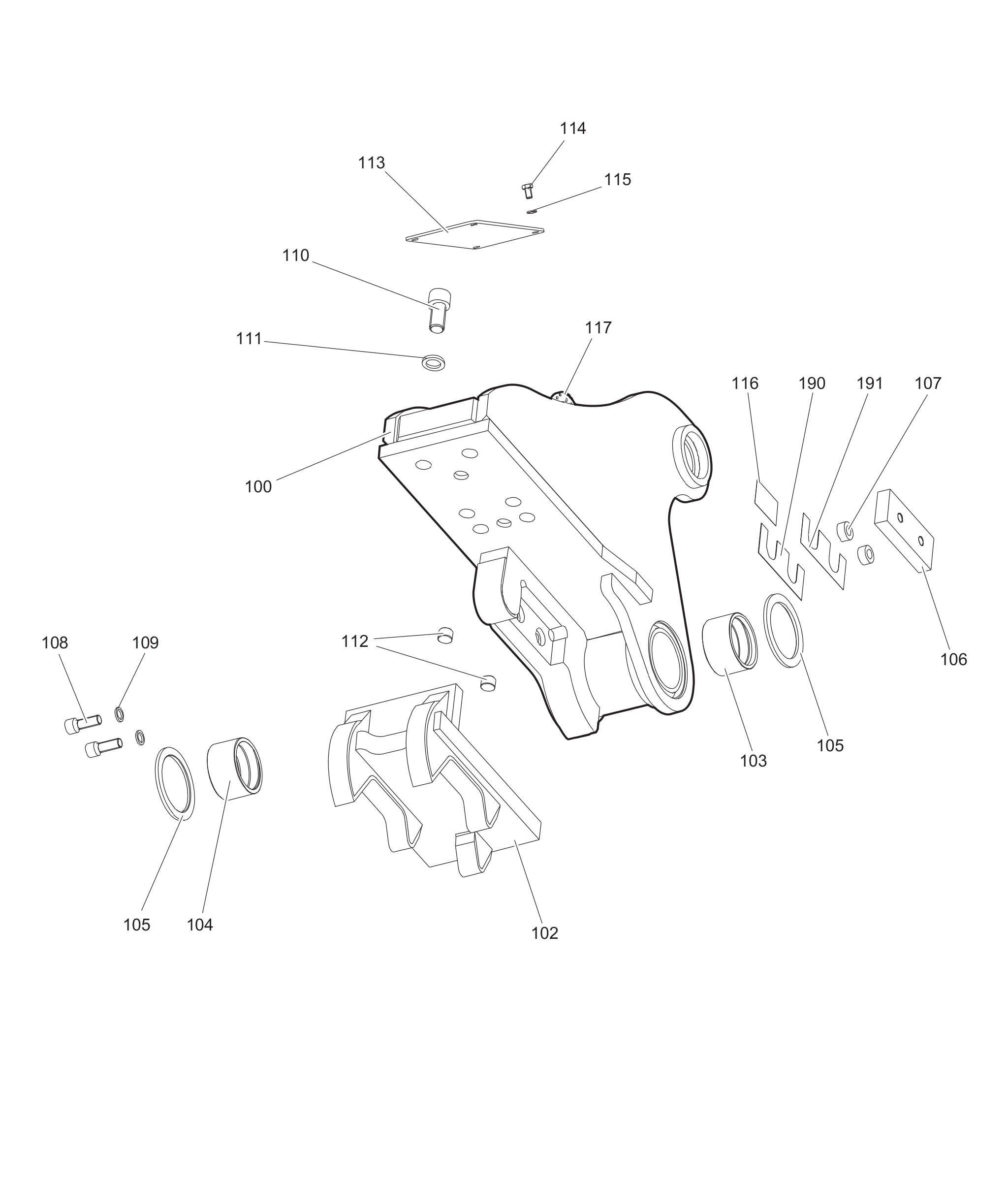

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363127195 | PULVERIZER JAW complete | 1 | ||||
| 3363127850 | TOOTH PLATE | 1 | ||||
| 3363088319 | BEARING BUSH | 1 | ||||
| 3363088321 | BEARING BUSH | 1 | ||||
| 3363085851 | DISK | 2 | ||||
| 3363086455 | CUTTER BLADE | 1 | ||||
| 3363035107 | LOCK RING | 2 | ||||
| 3362328057 | ALLEN SCREW | 2 | ||||
| 3361850748 | LOCK WASHER | 2 | ||||
| 3360438210 | HEXAGON HEAD BOLT | 6 | ||||
| 3361850747 | PAIR OF LOCK WASHERS | 6 | ||||
| 3363086441 | LOCK PIN | 2 | ||||
| 3363127192 | COVER | 1 | ||||
| 3360433381 | HEXAGON HEAD BOLT | 4 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 4 | ||||
| 3362268751 | LABEL TIGHTENING TORQUE | 2 | ||||
| 3363111994 | LIFTING EYE | 1 | ||||
| 3363091026 | SHIM | 1 | ||||
| 3363092403 | SHIM | 1 | 0.2 mm (0.01 in.) thick, as required |
