Spare Parts

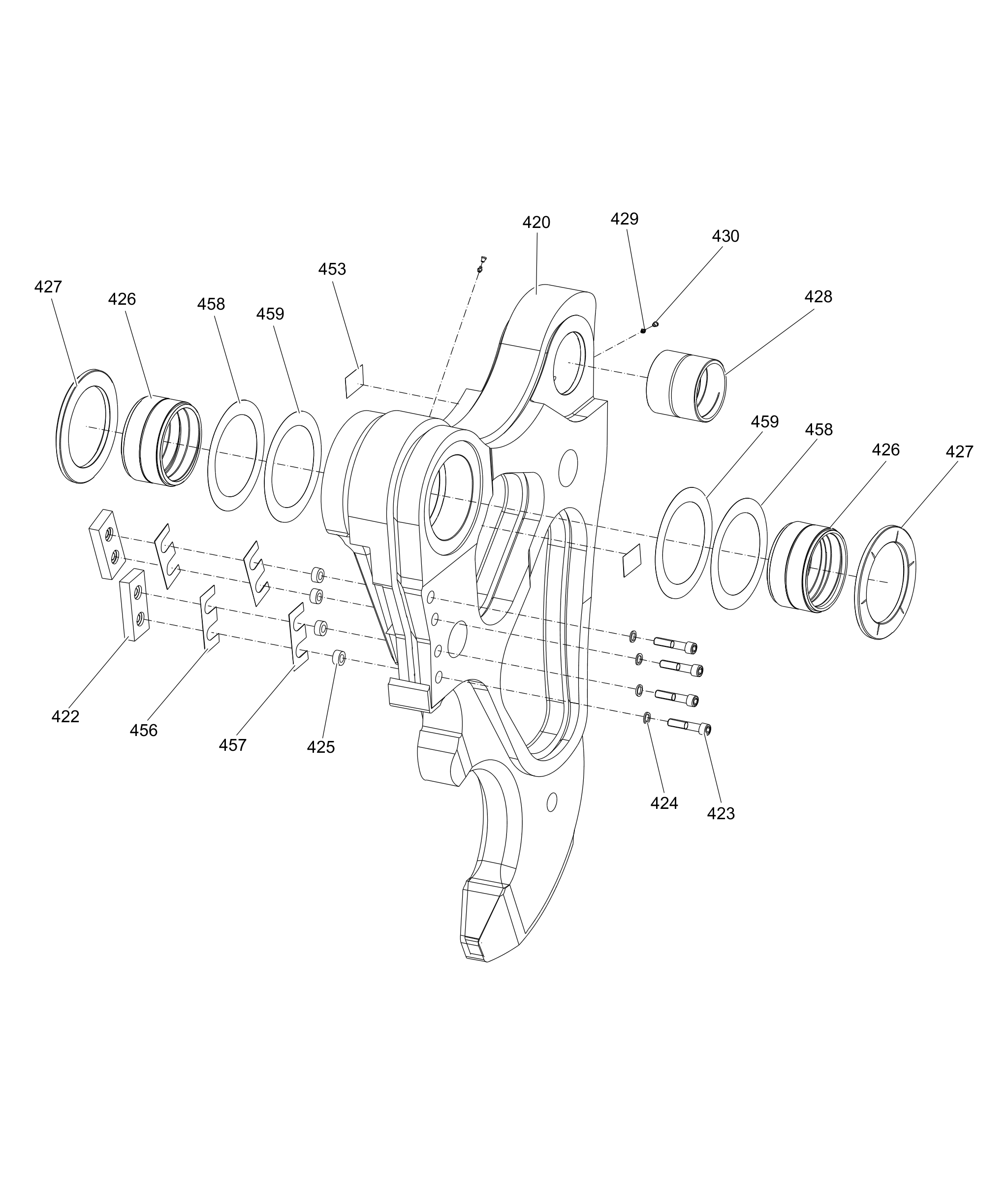

Cutter jaw

#		Part number	Name	QTY	Remarks	Information
		3363124615	CUTTER JAW, complete	2	with parts 422 - 453
		3363086479	CUTTER BLADE	4
		3360106100	ALLEN SCREW	8
		3361850748	PAIR OF LOCK WASHERS	8
		3363035107	LOCK RING	8
		3363121388	BEARING BUSH	4
		3363099495	WEAR RING	4
		3363121387	BEARING BUSH	2
		3360209834	GREASE NIPPLE	4
		3363087600	CAP	4
		3362268751	LABEL TIGHTENING TORQUE	4	German/English
		3363088149	SHIM	4	0.2 mm (0.01 in.) thick, as required
		3363087607	SHIM	4	1.0 mm (0.04 in.) thick, as required
		3363099491	SPACER RING	4	0.2 mm (0.01 in.) thick, as required
		3363099493	SPACER RING	4	0.5 mm (0.02 in.) thick, as required
