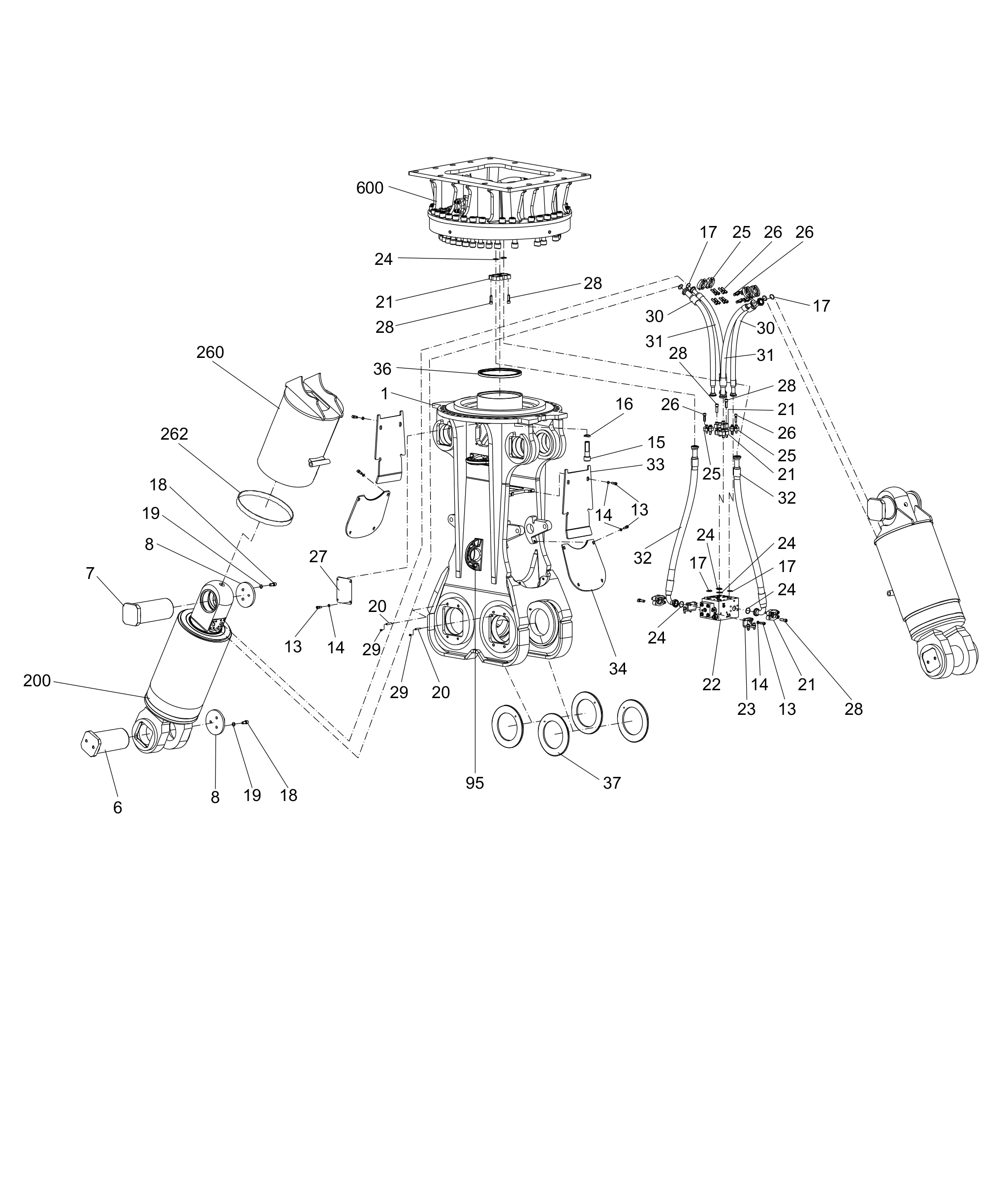

Hydraulic concrete buster part 1
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363121340 | HOUSING | 1 | with item 95 | |||
| 3363121446 | BOLT | 2 | ||||
| 3363118628 | BOLT | 2 | ||||
| 3363114743 | CAP | 4 | ||||
| 3360103751 | ALLEN SCREW | 28 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 28 | ||||
| 3363083947 | ALLEN SCREW | 34 | ||||
| 3361850747 | PAIR OF LOCK WASHERS | 34 | ||||
| 3360314370 | O-RING | 6 | ||||
| 3362328113 | ALLEN SCREW | 12 | ||||
| 3361333703 | PAIR OF LOCK WASHERS | 12 | ||||
| 3363098104 | SPRING DOWEL SLEEVE | 4 | ||||
| 3360992488 | FLANGE HALF | 8 | ||||
| 3363099407 | RAPID MOVEMENT VALVE | 1 | ||||
| 3363105487 | HOLDER | 2 | ||||
| 3360314372 | O-RING | 4 | ||||
| 3361853208 | FLANGE HALF | 12 | ||||
| 3360026513 | ALLEN SCREW | 24 | ||||
| 3362262371 | CAP | 2 | ||||
| 3363034274 | ALLEN SCREW | 16 | ||||
| 3363118258 | PIN | 2 | ||||
| 3363121726 | HYDRAULIC HOSE | 2 | ||||
| 3363121727 | HYDRAULIC HOSE | 2 | ||||
| 3363121728 | HYDRAULIC HOSE | 2 | ||||
| 3363121450 | COVER | 2 | ||||
| 3363121448 | COVER | 2 | ||||
| 3363070083 | SEAL | 1 | ||||
| 3363121436 | RING | 4 | ||||
| 3363111996 | LIFTING EYE | 4 | professional welding process necessary | |||
| 3363124616 | HYDRAULIC CYLINDER, complete | 2 | see separate chapter | |||
| 3363121452 | PROTECTIVE PISTON ROD SHEATH, complete | 2 | with item 262 | |||
| 3363099497 | GUIDE STRIP | 2 | ||||
| 3363121401 | UPPER PART, complete | 1 | see separate chapter |
