Mechanical
Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|

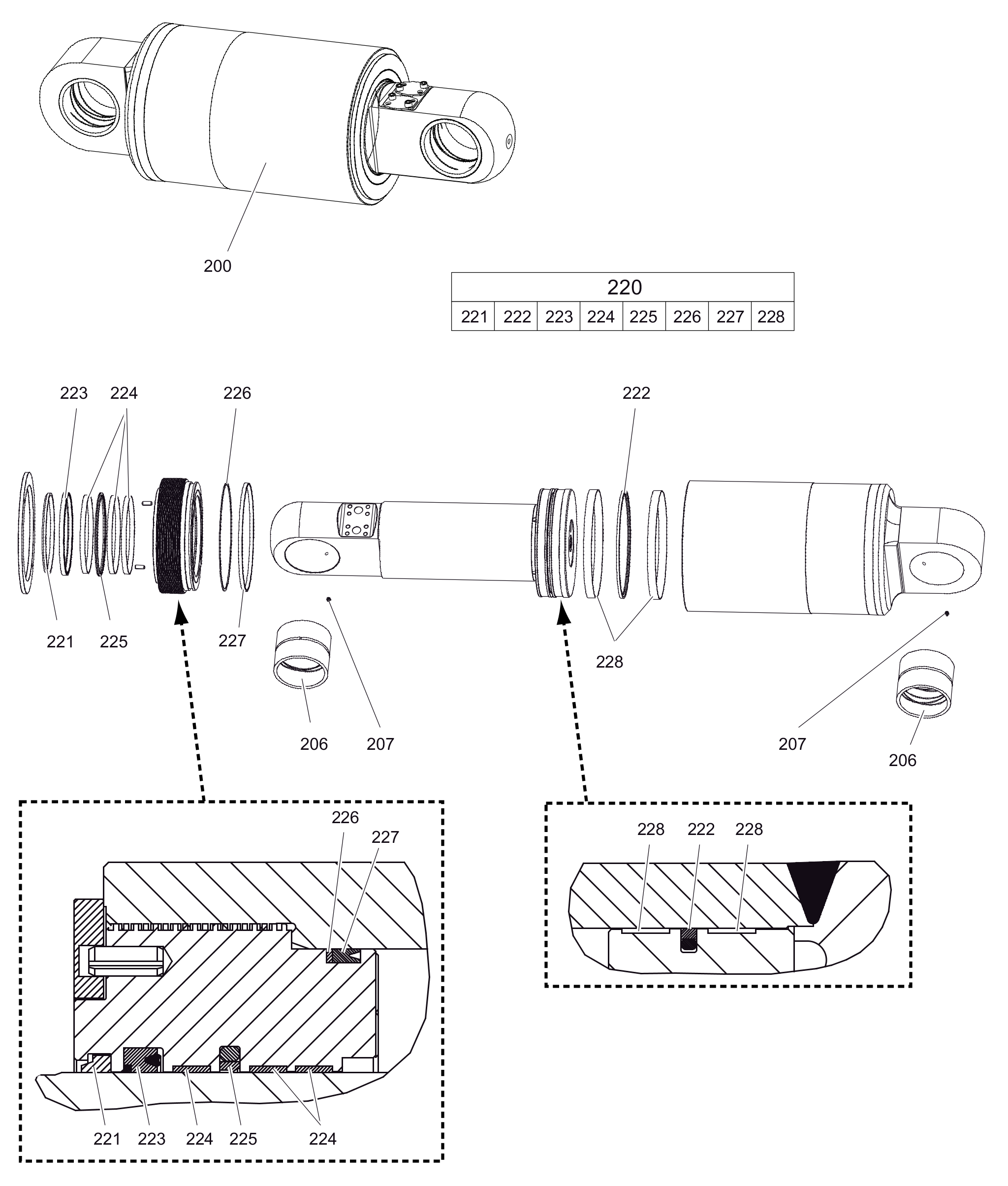

| 3363124616 | HYDRAULIC CYLINDER, complete | 2 | with item 206 - 228 | |||
| 3363109393 | CLAMPING BUSH | 4 | ||||
| 3360209834 | GREASE NIPPLE | 4 | ||||
| 3363106772 | SEAL KIT (Hydraulic cylinder) | 2 | ||||
| 3363106775 | WIPER | 1 | ||||
| 3363125128 | SEAL | 1 | ||||
| 3363106776 | SEAL | 1 | ||||
| 3363125131 | GUIDE RING | 3 | ||||
| 3363125130 | SEAL | 1 | ||||
| 3363106779 | BACK-UP RING | 1 | ||||
| 3363125137 | O-RING | 1 | ||||
| 3363125132 | GUIDE RING | 2 |
