Mechanical
Spare Parts

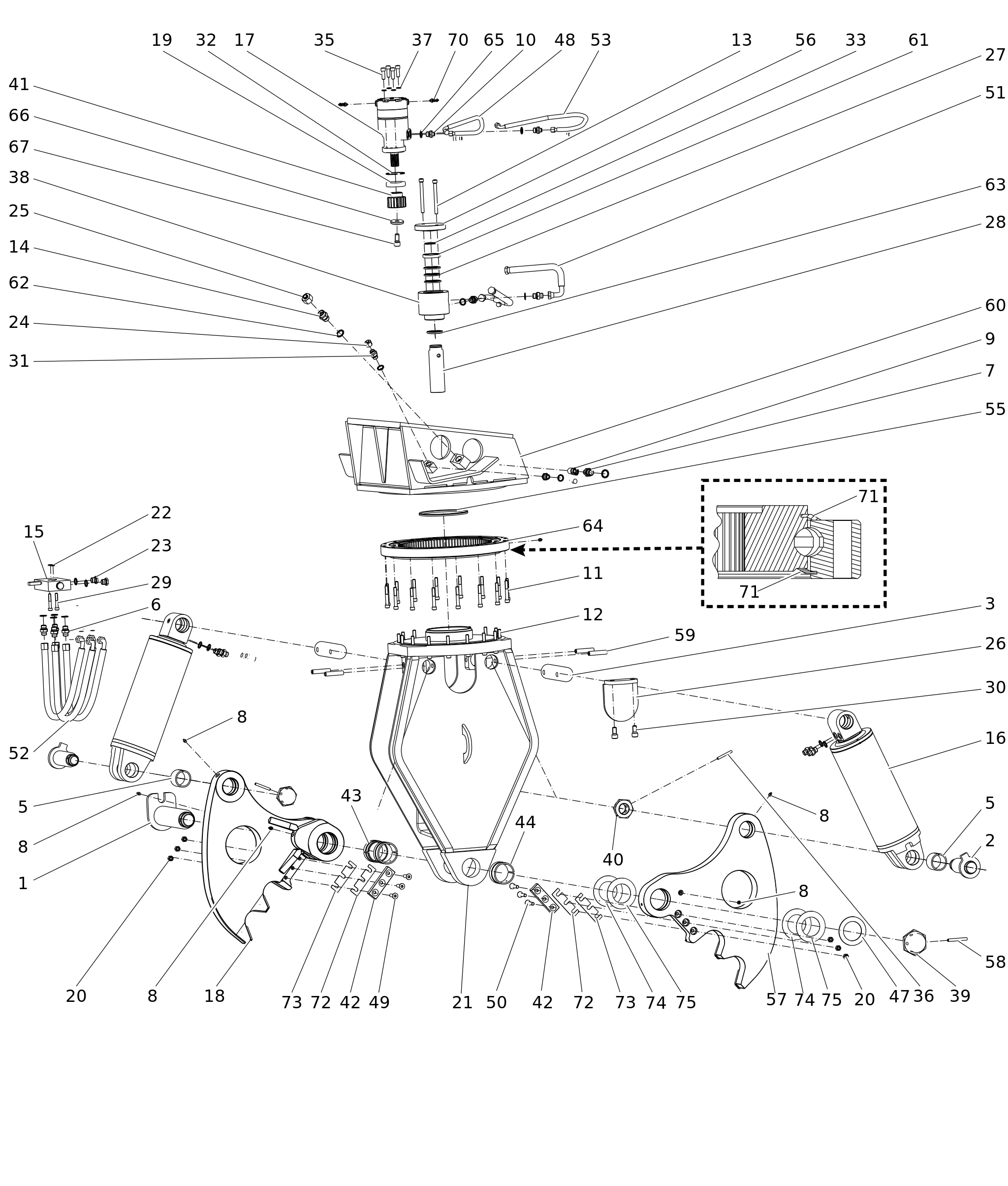

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363126208 | Bolt | 1 | ||||
| 3376675049 | BOLT | 2 | ||||
| 3376675052 | BOLT | 2 | ||||
| 3376100848 | BEARING BUSH | 2 | ||||
| 3371805711 | NIPPLE, 1/2 in. BSP | 10 | ||||
| 3371803718 | FITTING | 2 | ||||
| 3360209834 | GREASE NIPPLE | 6 | ||||
| 0606000057 | ADAPTER | 2 | ||||
| 3376100872 | FITTING | 4 | ||||
| 3376100996 | ALLEN SCREW | 16 | ||||
| 3376100866 | ALLEN SCREW | 16 | ||||
| 3371818702 | ALLEN SCREW | 2 | ||||
| 3376100893 | FITTING | 2 | ||||
| 3376676040 | CONNECTION BLOCK | 1 | ||||
| 3363126004 | HYDRAULIC CYLINDER | 2 | ||||
| 3376100864 | HYDRAULIC MOTOR | 1 | ||||
| 3363125991 | CUTTER JAW | 1 | ||||
| 4700000115 | BALL BEARING | 1 | ||||
| 5730008013 | HEXAGON NUT | 6 | ||||
| 3363126293 | Housing | 1 | ||||
| 3361031925 | O-RING | 2 | ||||
| 3376100896 | PLUG | 4 | ||||
| 3376100873 | PLUG | 2 | ||||
| 3376100986 | PLUG | 2 | ||||
| 3363126002 | COVER SHEET | 2 | ||||
| 3376100865 | SEAL | 3 | ||||
| 3376682044 | ROTOR | 1 | ||||
| 0211136900 | ALLEN SCREW M10 x 60 MM 12.9 | 2 | ||||
| 3360103766 | ALLEN SCREW | 4 | ||||
| 3376560020 | FITTING | 2 | ||||
| 3376100863 | SNAP RING | 1 | ||||
| 0335114500 | CIRCLIP | 1 | ||||
| 0211140200 | CAP SCREW | 4 | ||||
| 0108136600 | SPRING PIN | 2 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 4 | ||||
| 3376682045 | STATOR | 1 | ||||
| 3376675070 | CAP NUT | 1 | ||||
| 3376675071 | CAP NUT | 2 | ||||
| 3376682061 | PINION | 1 | ||||
| 3376675036 | CUTTER BLADE | 2 | ||||
| 3363125675 | BEARING BUSH | 2 | ||||
| 3363125674 | BEARING BUSH | 1 | ||||
| 3376675060 | SPACER RING | 1 | ||||
| 3376100869 | HYDRAULIC HOSE | 1 | ||||
| 5730082558 | HEX SOCK. SCREW | 3 | ||||
| 0216110035 | HEX SOCK. SCREW | 3 | ||||
| 3376100871 | HYDRAULIC HOSE | 2 | ||||
| 3376100900 | HYDRAULIC HOSE | 4 | ||||
| 3376100870 | HYDRAULIC HOSE | 1 | ||||
| 3376100935 | V-RING | 1 | ||||
| 3376682058 | COVER | 1 | ||||
| 3363125994 | CUTTER JAW | 1 | ||||
| 3376100978 | SPRING PIN | 1 | ||||
| 3360206736 | SPRING PIN 60 x 80 mm | 4 | ||||
| 3363123857 | UPPER PART | 1 | ||||
| 3376100862 | BEARING | 1 | ||||
| 3371813705 | SEAL | 4 | ||||
| 3376100851 | SEAL | 1 | ||||
| 3376100876 | LIVE RING | 1 | ||||
| 3371805714 | U-SEAL RING 1/2 in. | 20 | ||||
| 3363123263 | WASHER | 1 | ||||
| 3361031981 | ALLEN SCREW | 1 | ||||
| 3376683100 | PRESSURE RELIEF VALVE | 2 | ||||
| 3376682108 | SEAL KIT ( live ring) | 1 | ||||
| 3376675072 | SHIM | 2 | ||||
| 3363125335 | SHIM | 2 | ||||
| 3363127184 | SPACER RING 0,3 mm | 2 | ||||
| 3363127185 | SPACER RING 0,5 mm | 2 |
