Base plate (8) BC 2100, MB 750, MB 1000, MG 800, HC 850, HC 920, CB 750, CB 950, CC 650, CC 950, DC 600, DC 1000
Spare Parts

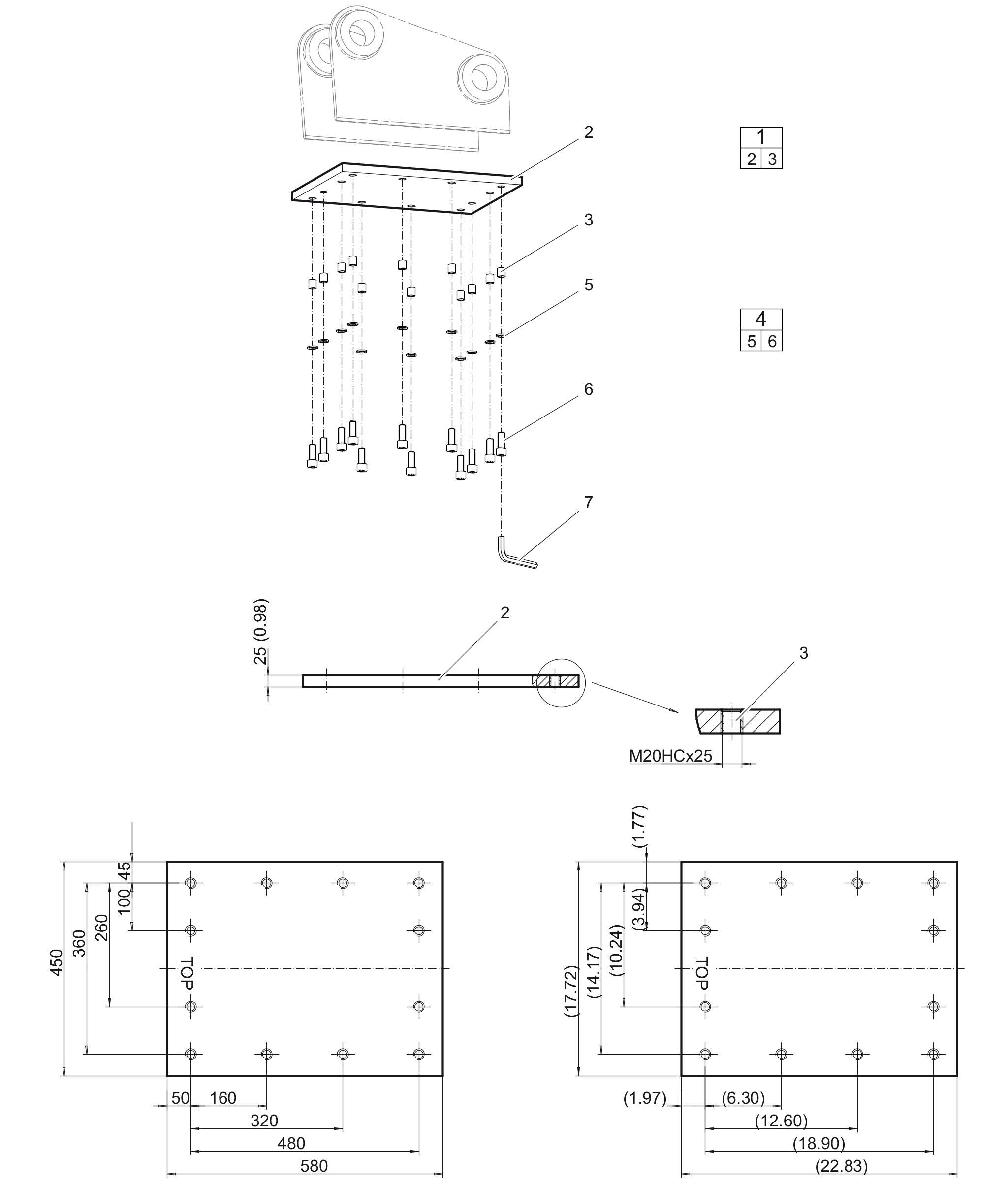

Base plate
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363099797 | BASE PLATE WITH THREADED INSERTS | 1 | ||||
| - | Base plate | 1 | ||||
| 3360478345 | Threaded insert, M20x25, factory assembled | 12 | ||||
| 3363094537 | BOLT KIT | 1 | ||||
| 3361850748 | LOCK WASHER | 12 | ||||
| 3360026782 | ALLEN SCREW | 12 | ||||
| 3360209253 | ALLEN KEY (19 mm) | 1 |
