Spare Parts

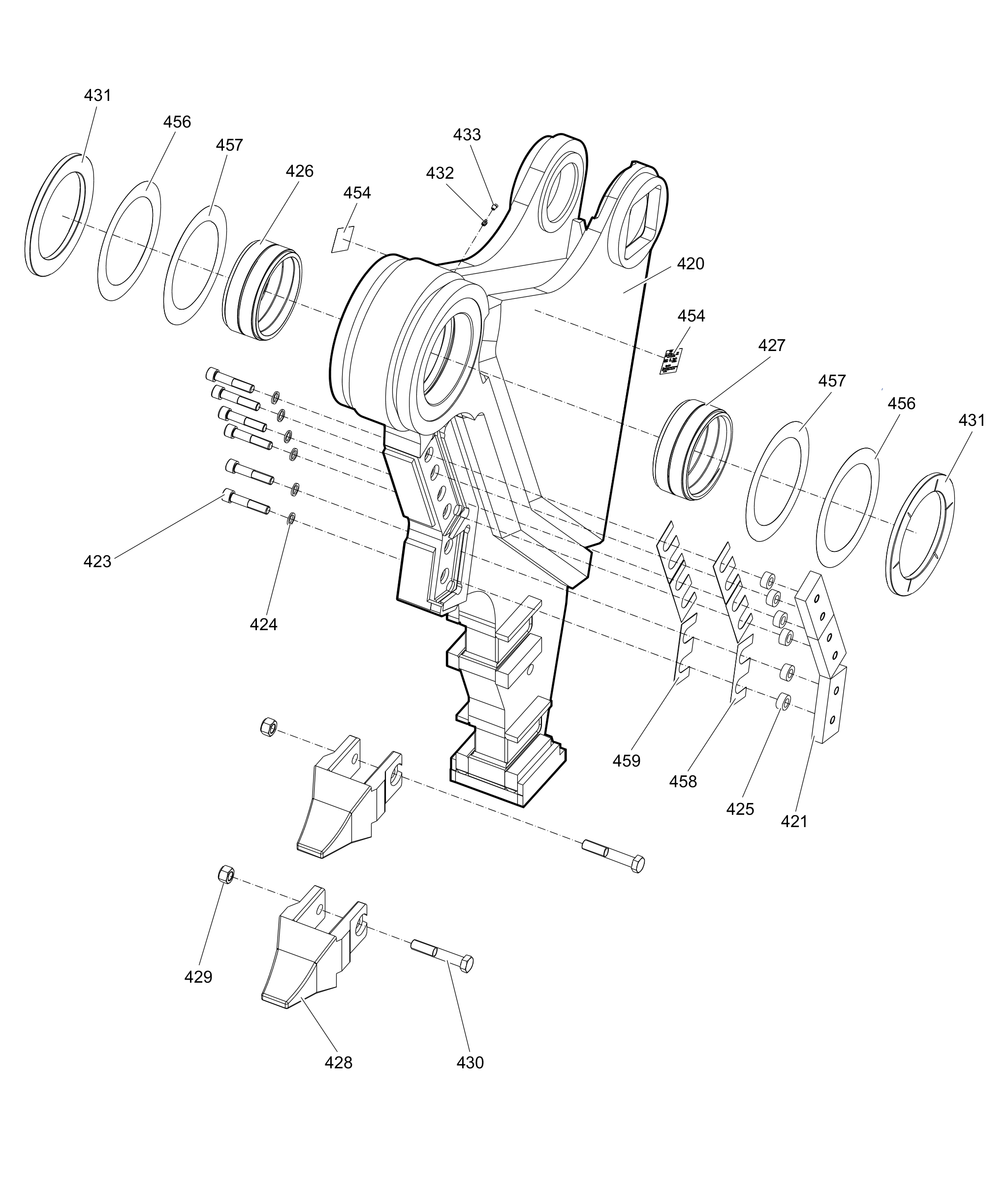

Cutter jaw (single) U
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363118863 | CUTTER JAW (single) U | 1 | with item 421 - 454B | with item 429 and 430C | German/EnglishD | 0.2 mm (0.01 in.) thick, as requiredE | 0.5 mm (0.02 in.) thick, as requiredF | 1.0 mm (0.04 in.) thick, as required | |||
| 3363086479 | CUTTER BLADE | 3 | ||||
| 3360106100 | ALLEN SCREW | 6 | ||||
| 3361850748 | LOCK WASHER | 6 | ||||
| 3363035107 | LOCK RING | 6 | ||||
| 3363118616 | BEARING BUSH | 1 | ||||
| 3363118617 | BEARING BUSH | 1 | ||||
| 3363098963 | TIP OF TOOTH | 2 | ||||
| 3363098934 | HEXAGON NUT | 2 | ||||
| 3363083963 | HEXAGON HEAD SCREW | 2 | ||||
| 3363099495 | WEAR RING | 2 | ||||
| 3360209834 | GREASE NIPPLE | 1 | ||||
| 3363087600 | CAP | 1 | ||||
| 3362268751 | LABEL TIGHTENING TORQUE | 2 | ||||
| 3363099491 | SPACER RING | 2 | ||||
| 3363099493 | SPACER RING | 2 | ||||
| 3363088149 | SHIM | 3 | ||||
| 3363087607 | SHIM | 3 |
