Mechanical

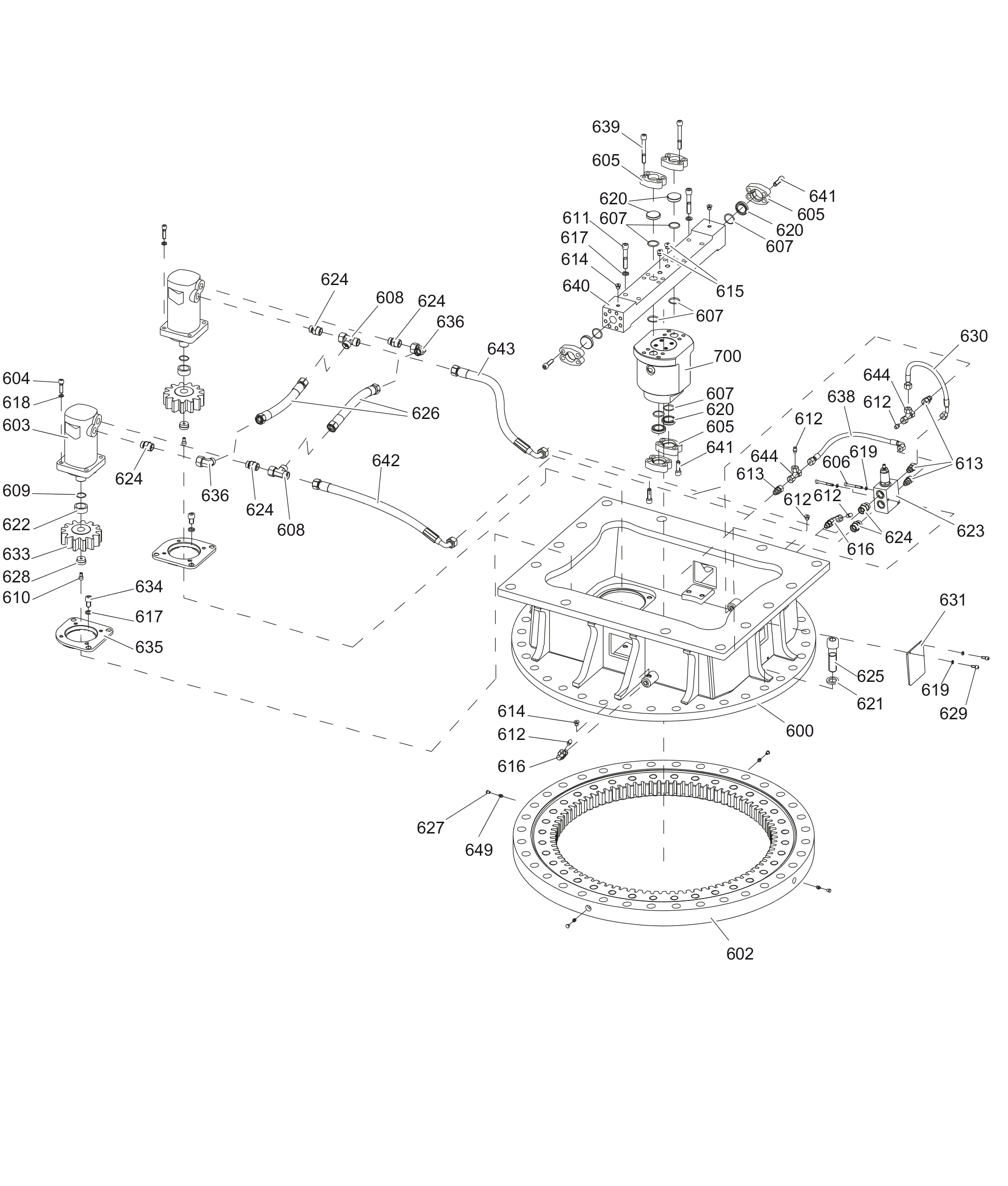

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363099509 | UPPER PART, complete | 1 | with item 602 - 700B | see separate chapter | |||
| 3363099513 | FOUR POINT BEARING | 1 | ||||
| 3363098967 | HYDRAULIC MOTOR | 2 | ||||
| 3360026513 | ALLEN SCREW | 8 | ||||
| 3360992488 | FLANGE HALF | 12 | ||||
| 3360103738 | ALLEN SCREW | 2 | ||||
| 3360314372 | O-RING | 8 | ||||
| 3363113033 | FITTING | 2 | ||||
| 3360313304 | O-RING | 2 | ||||
| 3361031981 | ALLEN SCREW | 2 | ||||
| 3362328096 | ALLEN SCREW | 4 | ||||
| 3360314593 | PLUG | 4 | ||||
| 3360478333 | FITTING | 4 | ||||
| 3360478439 | THREADED PLUG | 4 | ||||
| 3360478440 | THREADED PLUG | 2 | ||||
| 3363091912 | FITTING | 2 | ||||
| 3361333703 | LOCK WASHER | 10 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 8 | ||||
| 3361850743 | PAIR OF LOCK WASHERS | 4 | ||||
| 3363031348 | BLIND PLATE | 6 | ||||
| 3361850747 | PAIR OF LOCK WASHERS | 36 | ||||
| 3362265869 | RING | 2 | ||||
| 3363127360 | VALVE BLOCK | 1 | ||||
| 3363113032 | FITTING | 6 | ||||
| 3362328083 | ALLEN SCREW | 36 | ||||
| 3363113061 | HYDRAULIC HOSE | 2 | ||||
| 3363087600 | CAP | 4 | ||||
| 3363088327 | RING | 2 | ||||
| 3360103733 | ALLEN SCREW | 2 | ||||
| 3363083972 | HYDRAULIC HOSE | 1 | ||||
| 3363099489 | COVER SHEET | 1 | ||||
| 3363099597 | SPUR PINION | 2 | ||||
| 3360026641 | ALLEN SCREW | 6 | ||||
| 3363109941 | PLATE | 2 | ||||
| 3363113034 | FITTING | 2 | ||||
| 3362263704 | HYDRAULIC HOSE | 1 | ||||
| 3363105485 | ALLEN SCREW | 8 | ||||
| 3363105495 | CONNECTION PLATE | 1 | ||||
| 3363034274 | ALLEN SCREW | 16 | ||||
| 3363113410 | HYDRAULIC HOSE | 1 | ||||
| 3363113411 | HYDRAULIC HOSE | 1 | ||||
| 3360314543 | FITTING | 2 | ||||
| 3360209834 | GREASE NIPPLE | 4 | ||||
| 3363105471 | ROTARY TRANSMISSION | 1 |
