Mechanical
Spare Parts

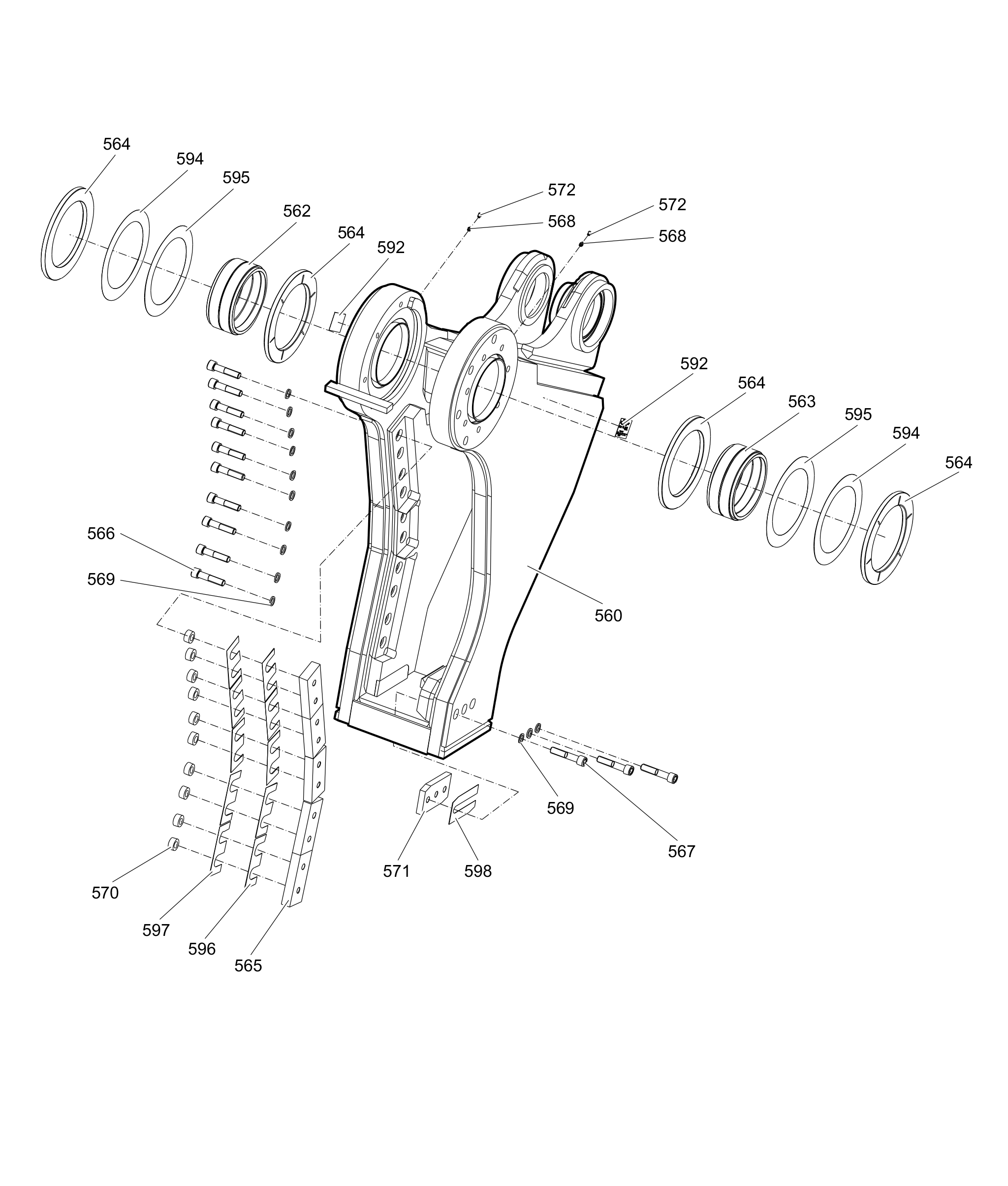

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363119320 | CUTTER JAW (double) S | 1 | with item 562 - 592B | German/EnglishC | 0.2 mm (0.01 in.) thick, as requiredD | 0.5 mm (0.01 in.) thick, as requiredE | 1.0 mm (0.04 in.) thick, as required | |||
| 3363118617 | BEARING BUSH | 1 | ||||
| 3363118616 | BEARING BUSH | 1 | ||||
| 3363099495 | WEAR RING | 4 | ||||
| 3363086479 | CUTTER BLADE | 5 | ||||
| 3360106099 | ALLEN SCREW | 10 | ||||
| 3360106100 | ALLEN SCREW | 3 | ||||
| 3360209834 | GREASE NIPPLE | 2 | ||||
| 3361850748 | LOCK WASHER | 13 | ||||
| 3363035107 | LOCK RING | 10 | ||||
| 3363090241 | SLIDING PLATE | 1 | ||||
| 3363087600 | CAP | 2 | ||||
| 3362268751 | LABEL TIGHTENING TORQUE | 2 | ||||
| 3363099491 | SPACER RING | 2 | ||||
| 3363099493 | SPACER RING | 2 | ||||
| 3363088149 | SHIM | 5 | ||||
| 3363087607 | SHIM | 5 | ||||
| 3363093749 | SHIM | 1 |
