Base plate (33) CB 7500, CC 6000, CC 7000
Spare Parts

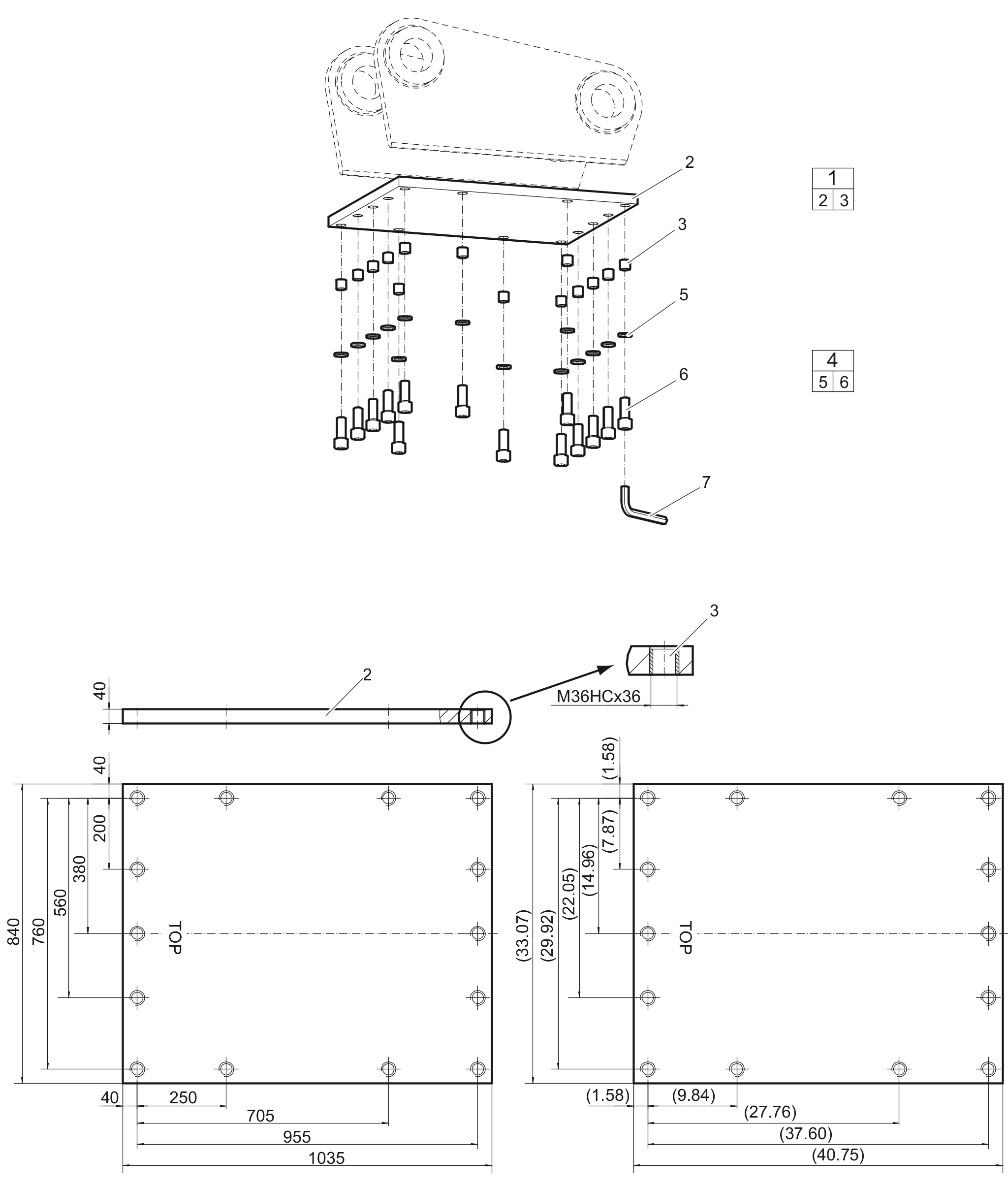

Base plate
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363093497 | BASE PLATE WITH THREADED INSERTS | 1 | ||||
| 3363093497 | BASE PLATE WITH THREADED INSERTS | 0 | ||||
| - | Base plate | 1 | ||||
| 3361031611 | Threaded insert, M36x36, factory assembled | 14 | ||||
| 3363106593 | BOLT KIT | 1 | ||||
| 3363106593 | BOLT KIT | 0 | ||||
| 3361853365 | PAIR OF LOCK WASHERS | 14 | ||||
| 3363087309 | Allen screw | 14 | ||||
| 3360478949 | ALLEN KEY (27 mm) | 1 | ||||
| 3360478949 | ALLEN KEY (27 mm) | 0 |
