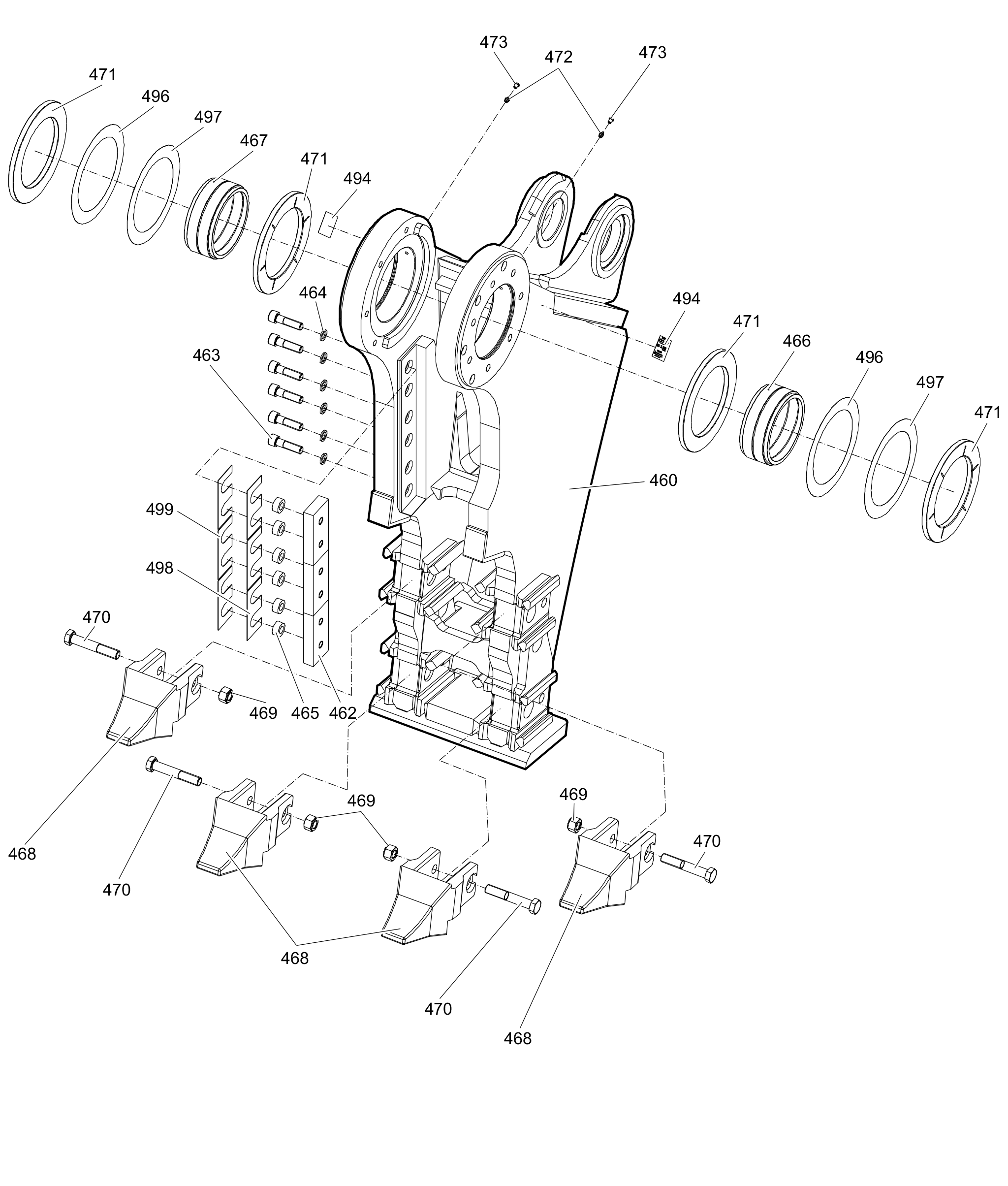

Cutter jaw (double) U
# | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363118303 | CUTTER JAW (double) U | 1 | ||||
| 3363086479 | CUTTER BLADE | 3 | ||||
| 3363070085 | ALLEN SCREW | 6 | ||||
| 3361850748 | PAIR OF LOCK WASHERS | 6 | ||||
| 3363035107 | LOCK RING | 6 | ||||
| 3363118090 | BEARING BUSH | 1 | ||||
| 3363118084 | BEARING BUSH | 1 | ||||
| 3363098963 | TIP OF TOOTH | 4 | with item 469 and 470B | German/EnglishC | 0.2 mm (0.01 in.) thick, as requiredD | 0.5 mm (0.02 in.) thick, as requiredE | 1.0 mm (0.04 in.) thick, as required | |||
| 3363098934 | HEXAGON NUT | 4 | ||||
| 3363083963 | HEXAGON HEAD SCREW | 4 | ||||
| 3363109965 | WEAR RING | 4 | ||||
| 3360209834 | GREASE NIPPLE | 2 | ||||
| 3363087600 | CAP | 2 | ||||
| 3362268751 | LABEL TIGHTENING TORQUE | 2 | ||||
| 3363109961 | SPACER RING | 1 | ||||
| 3363109963 | SPACER RING | 1 | ||||
| 3363088149 | SHIM | 3 | ||||
| 3363087607 | SHIM | 3 |
