Spare Parts

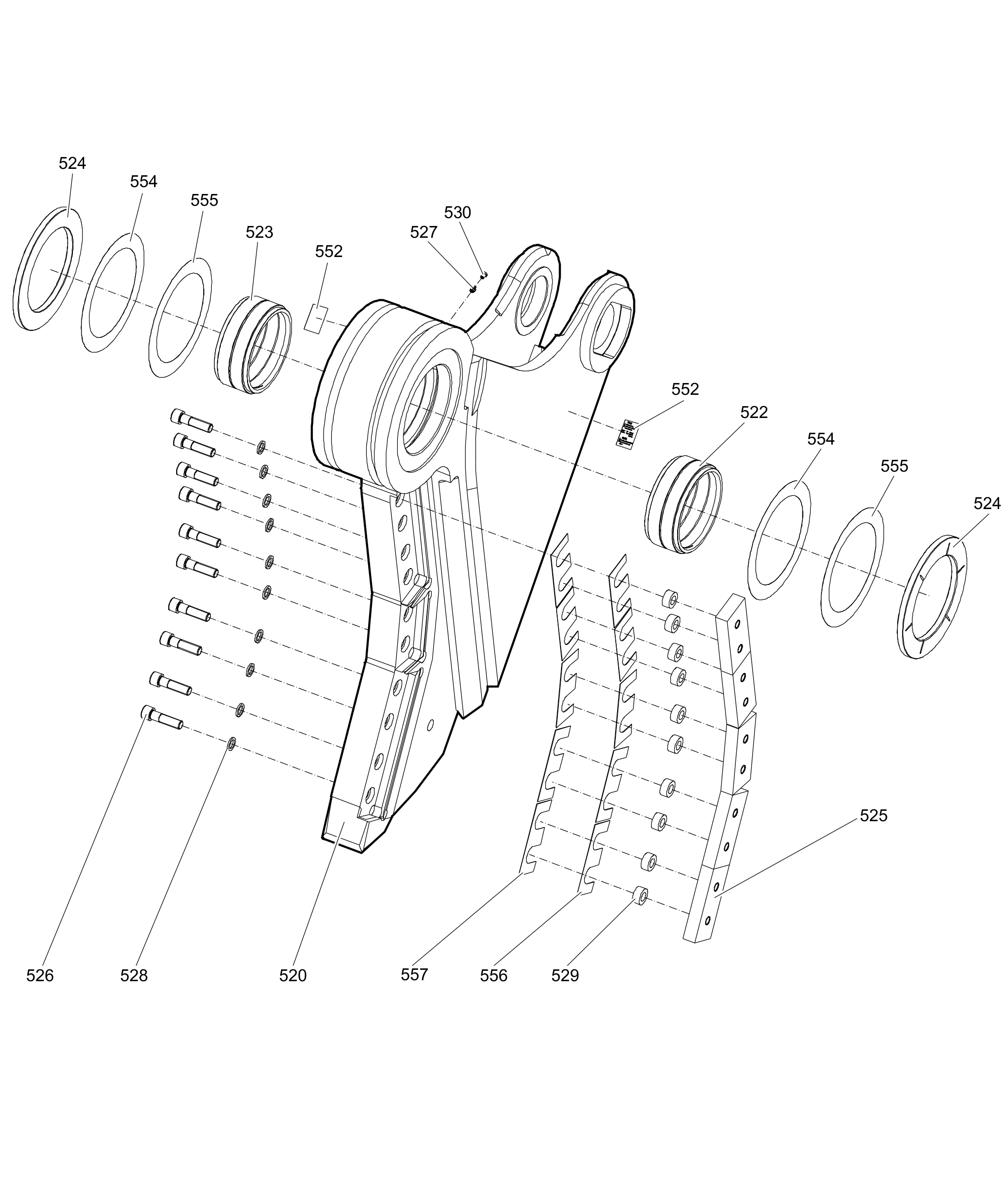

Cutter jaw (single) S

#Part numberNameQTYRemarksInformation
3363118306CUTTER JAW (single) S1
3363118084BEARING BUSH1
3363118090BEARING BUSH1
3363109965WEAR RING2
3363086479CUTTER BLADE5
3363070085ALLEN SCREW10
3360209834GREASE NIPPLE1
3361850748LOCK WASHER10
3363035107LOCK RING10
3363087600CAP1
3362268751LABEL TIGHTENING TORQUE2German/EnglishB | 0.2 mm (0.01 in.) thick, as requiredC | 0.5 mm (0.02 in.) thick, as requiredD | 1.0 mm (0.04 in.) thick, as required
3363109961SPACER RING1
3363109963SPACER RING1
3363088149SHIM5
3363087607SHIM5
