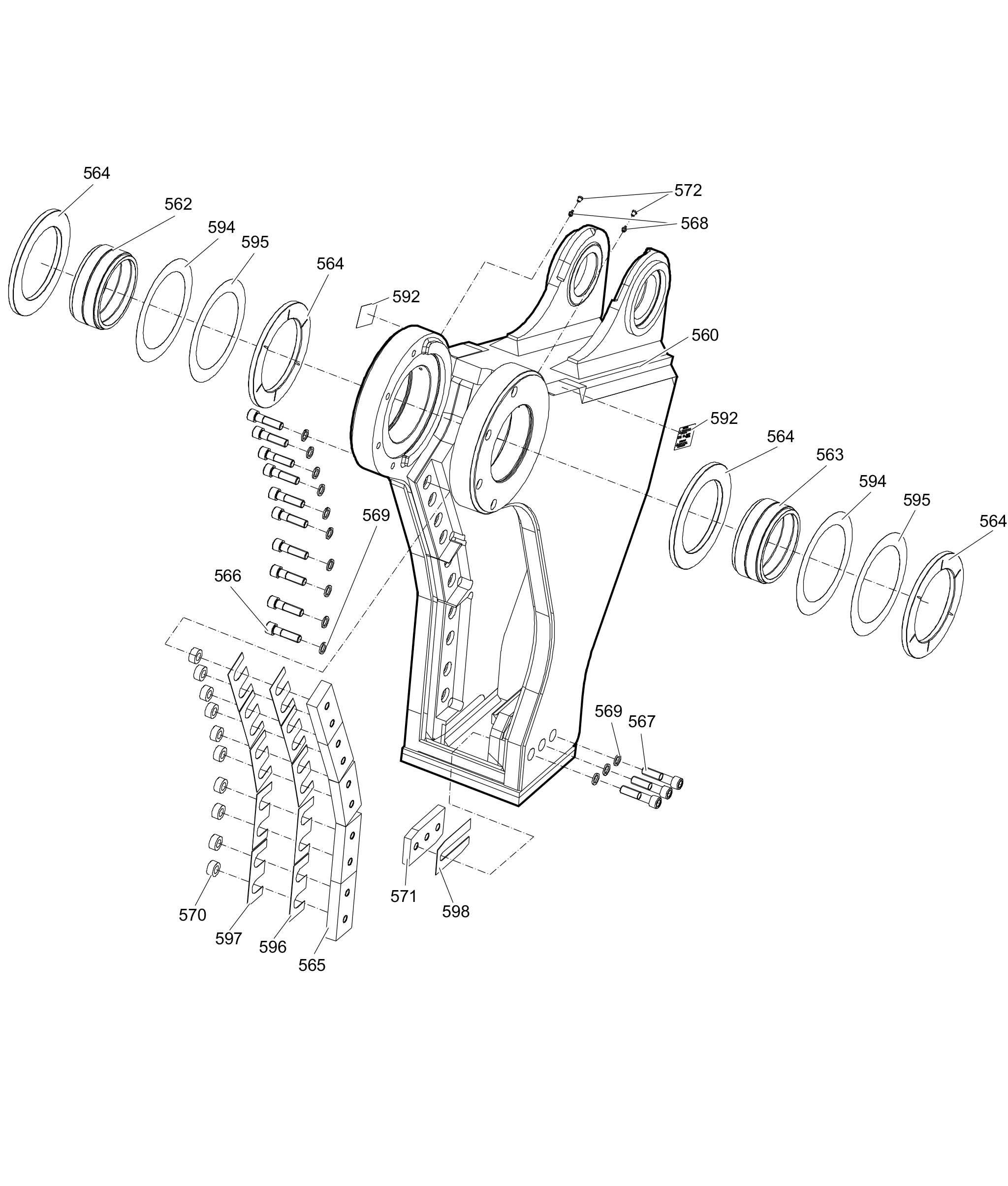

Cutter jaw (double) S
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363118307 | CUTTER JAW (double) S | 1 | ||||
| 3363118084 | BEARING BUSH | 1 | ||||
| 3363118090 | BEARING BUSH | 1 | ||||
| 3363109965 | WEAR RING | 4 | ||||
| 3363086479 | CUTTER BLADE | 5 | ||||
| 3363070085 | ALLEN SCREW | 10 | ||||
| 3360106099 | ALLEN SCREW | 3 | ||||
| 3360209834 | GREASE NIPPLE | 2 | ||||
| 3361850748 | PAIR OF LOCK WASHERS | 13 | ||||
| 3363035107 | LOCK RING | 10 | ||||
| 3363090241 | SLIDING PLATE | 1 | ||||
| 3363087600 | CAP | 2 | ||||
| 3362268751 | LABEL TIGHTENING TORQUE | 2 | German/EnglishB | 0.2 mm (0.01 in.) thick, as requiredC | 0.5 mm (0.01 in.) thick, as requiredD | 1.0 mm (0.04 in.) thick, as required | |||
| 3363109961 | SPACER RING | 1 | ||||
| 3363109963 | SPACER RING | 1 | ||||
| 3363088149 | SHIM | 5 | ||||
| 3363087607 | SHIM | 5 | ||||
| 3363093749 | SHIM | 1 |
