Spare Parts

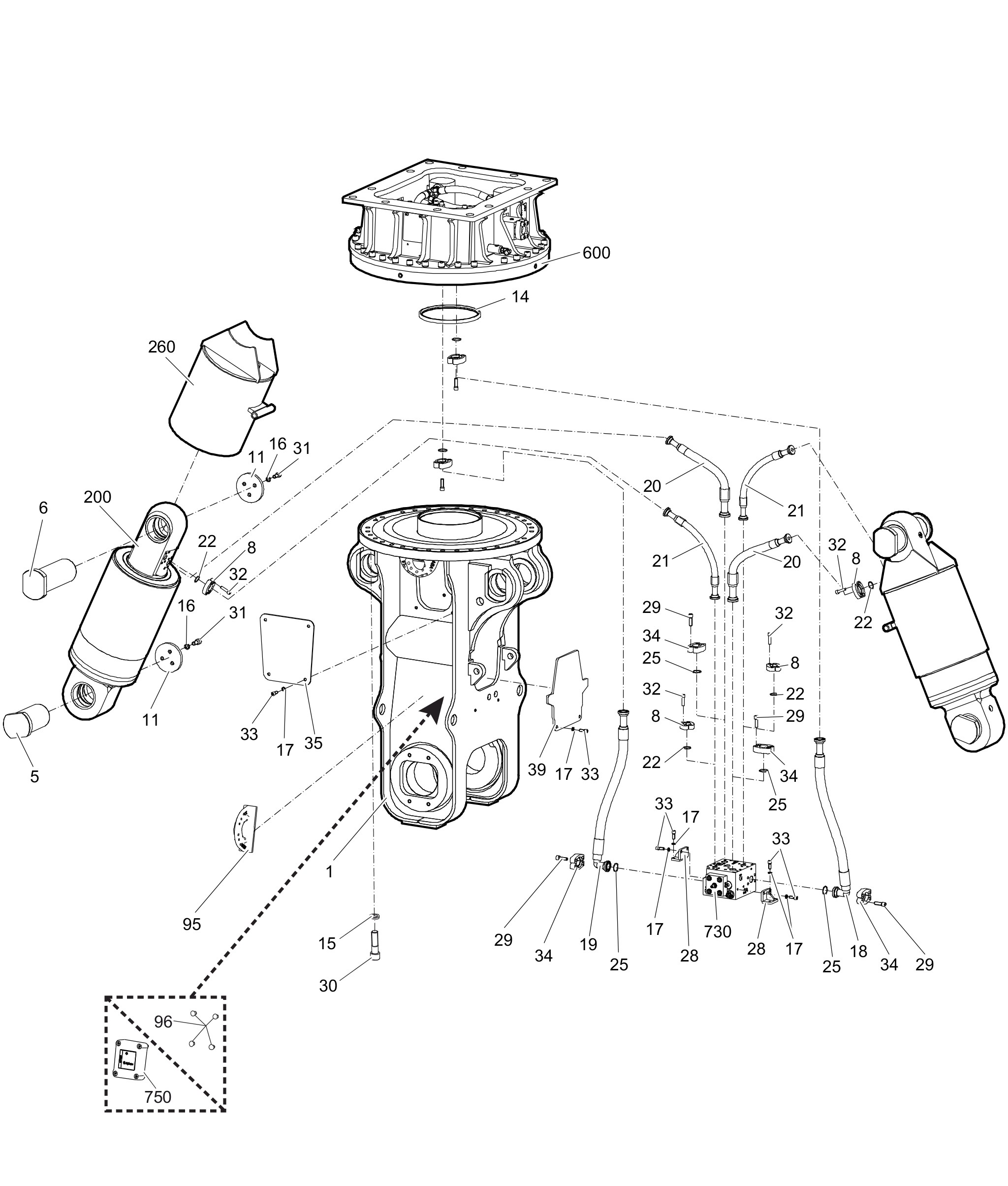

Hydraulic demolition cutter part 2

#Part numberNameQTYRemarksInformation
3363118098HOUSING1with item 95
3363118160BOLT2
3363118161BOLT2
3361853208FLANGE HALF12
3363114744CAP4
3363070083SEAL1
3361850748LOCK WASHER32
3361333703LOCK WASHER12
3361850596PAIR OF LOCK WASHERS20
3363109933HYDRAULIC HOSE1
3363109936HYDRAULIC HOSE1
3363109932HYDRAULIC HOSE2
3363109934HYDRAULIC HOSE2
3360314370O-RING6
3360314372O-RING4
3363105487HOLDER2
3363034274ALLEN SCREW16
3360106101ALLEN SCREW 32
3362328113ALLEN SCREW12
3360026513ALLEN SCREW24
3360103751ALLEN SCREW20
3360992488FLANGE HALF8
3363106338PLATE2
3363112220PLATE2
3363111996LIFTING EYE4professional welding process necessary
3315439145PROTECTIVE PLUG HATCON1only for hydraulic demolition cutters without HATCON
3363115236HYDRAULIC CYLINDER, complete2see separate chapter
3363118137PROTECTIVE PISTON ROD SHEATH, complete2see separate chapter
3363115332UPPER PART, complete1see separate chapter
3363099407RAPID MOVEMENT VALVE1
3315439180HATCON1only for hydraulic demolition cutters with HATCON / see separate chapter
