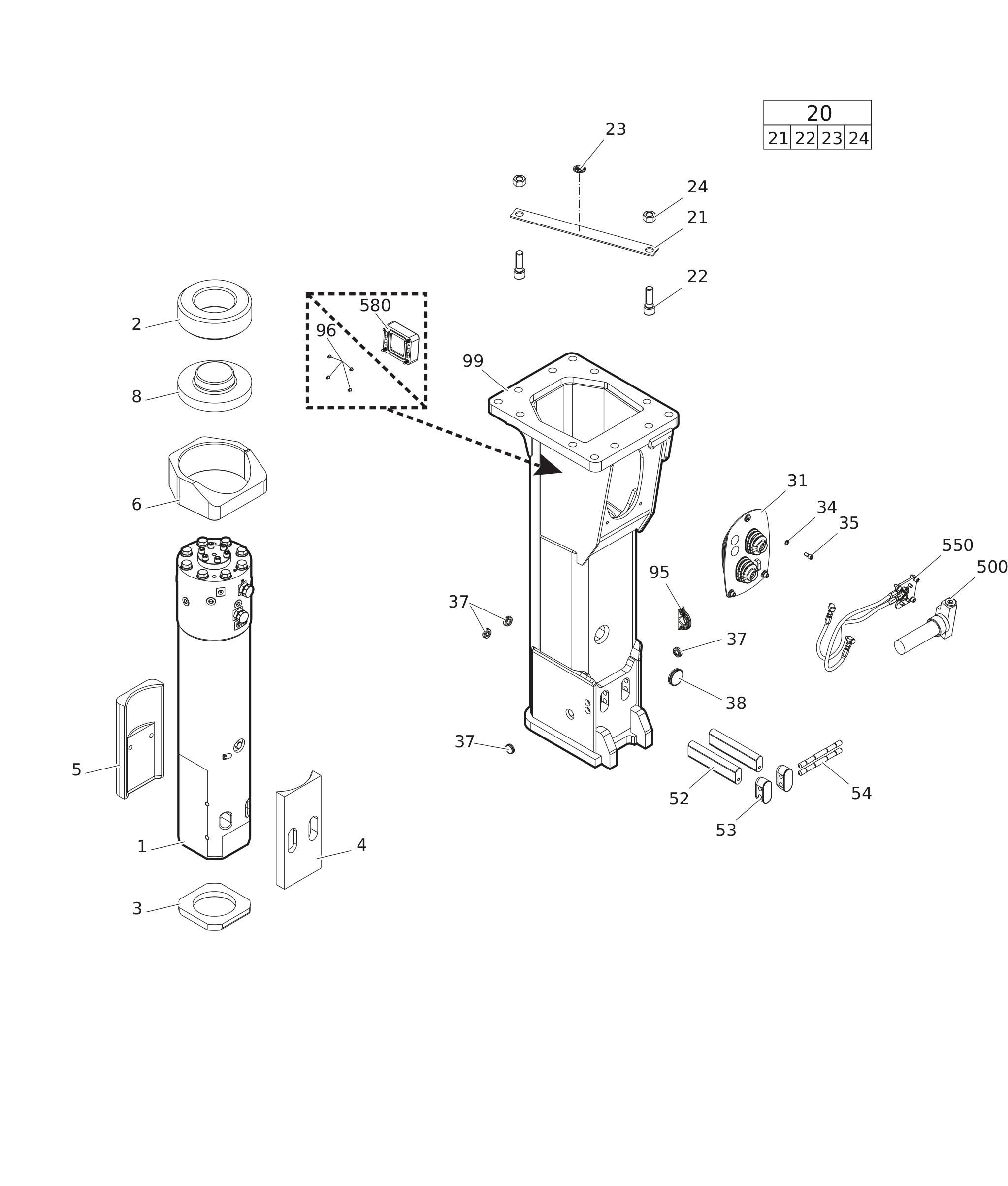

Hydraulic breaker
# | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | PERCUSSION UNIT | 1 | see separate chapter | |||
| 3363104967 | Elastic pad | 1 | ||||
| 3363122763 | SHOCK ABSORBER | 1 | ||||
| 3363115023 | Guide plate | 1 | ||||
| 3363115910 | GUIDE PLATE | 1 | ||||
| 3363115912 | GUIDE RING | 1 | ||||
| 3363104979 | Cap | 1 | ||||
| 3363083416 | SAFETY DEVICE | 1 | ||||
| - | TRANSORT SAFETY DEVICE | 1 | ||||
| 3360026883 | ALLEN SCREW | 2 | ||||
| 3363091872 | LABEL | 1 | ||||
| 3360103254 | NUT | 2 | ||||
| 3363115905 | COVER | 1 | ||||
| 3361850596 | LOCK WASHERS | 3 | ||||
| 3360103750 | ALLEN SCREW | 3 | ||||
| 3362267897 | PLUG | 4 | ||||
| 3362267893 | PLUG | 1 | ||||
| 3363115024 | Retainer bar | 2 | ||||
| 3363114673 | PLUG | 2 | ||||
| 3363115025 | Bolt | 2 | ||||
| 3363111993 | LIFTING EYE | 1 | professional welding process necessary | |||
| 3315439145 | PROTECTIVE PLUG | 4 | only for hydraulic breakers without HATCON | |||
| 3363115925 | Breaker box | 1 | with item 95 and 96 | |||
| 3363067123 | AUTO LUB SYSTEM | 1 | ||||
| 3363115911 | CONNECTING PARTS | 1 | see separate chapter | |||
| - | HATCON | 1 | only for hydraulic breakers with HATCON / see separate chapter |
