Mechanical
Spare Parts

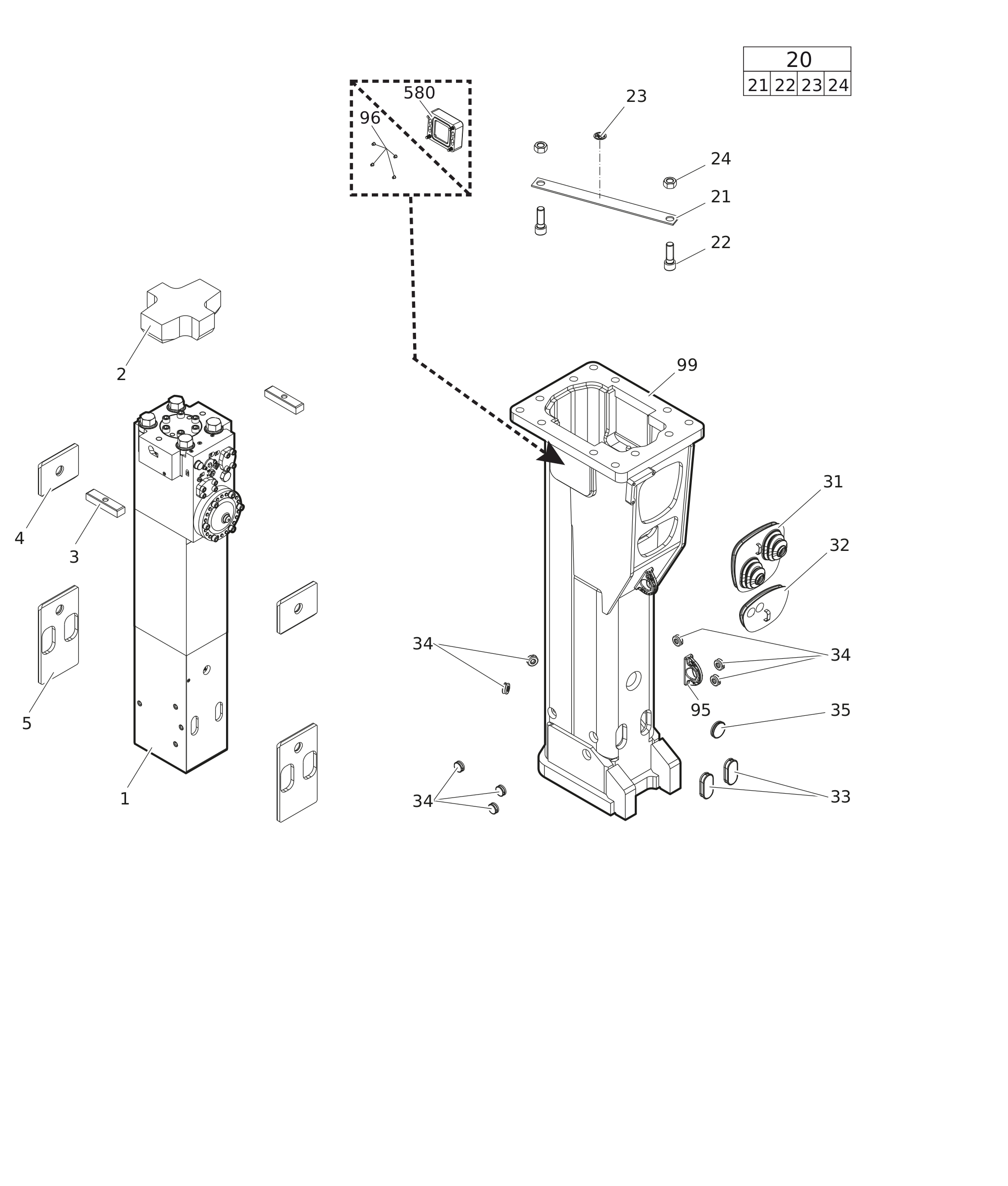

Hydraulic breaker
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | Percussion unit | 1 | see separate chapter | |||
| 3363105171 | Elastic pad | 1 | ||||
| 3363105173 | Shock absorber | 2 | ||||
| 3363115969 | GUIDE PLATE | 2 | ||||
| 3363115970 | Guide plate | 2 | ||||
| 3363083416 | TRANSPORT SAFETY DEVICE complete | 1 | ||||
| - | TRANSORT SAFETY DEVICE | 1 | ||||
| 3360026883 | ALLEN SCREW | 2 | ||||
| 3363091872 | LABEL TRANSPORT SAFETY DEVICE | 1 | ||||
| 3360103254 | NUT | 2 | ||||
| 3363033551 | Cover | 1 | ||||
| 3363116113 | Cover | 1 | ||||
| 3363086011 | PLUG | 2 | ||||
| 3363086015 | PLUG | 8 | ||||
| 3362267893 | PLUG | 1 | ||||
| 3363111994 | LIFTING EYE | 2 | professional welding process necessary | |||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | only for hydraulic breakers without HATCON | |||
| 3363116108 | Breaker box | 1 | with item 95 and 96 | |||
| 3315439180 | HATCON | 1 | only for hydraulic breakers with HATCON / see separate chapter |
