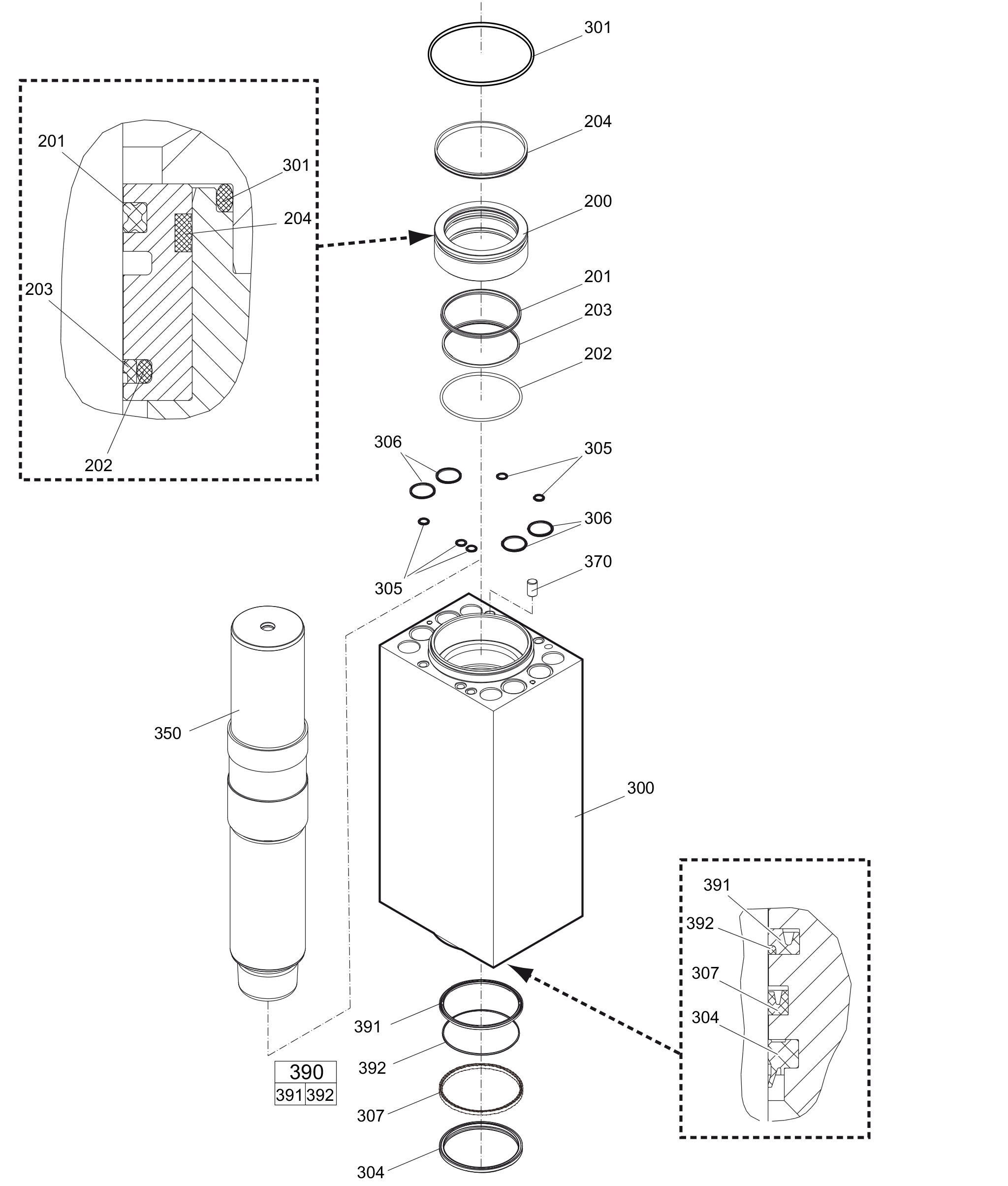

Percussion unit part 2: cylinder
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363105557 | Seal bush | 1 | ||||
| 3363031872 | Seal | 1 | ||||
| 3360479721 | O-ring | 1 | ||||
| 3363031973 | Seal | 1 | ||||
| 3363114621 | Seal | 1 | ||||
| 3363112441 | Cylinder | 1 | ||||
| 3362328126 | O-ring | 1 | ||||
| 3363083668 | Wiper | 1 | ||||
| 3362267584 | SEAL - Merkel Stircomatic Sealing | 5 | ||||
| 3362267589 | Seal | 4 | ||||
| 3362267557 | Seal | 1 | ||||
| 3363085730 | Percussion piston | 1 | ||||
| 3363033051 | Lock pin | 1 | ||||
| 3362263822 | Seal kit | 1 | ||||
| - | SEAL | 1 | ||||
| - | BACK-UP RING | 1 |
