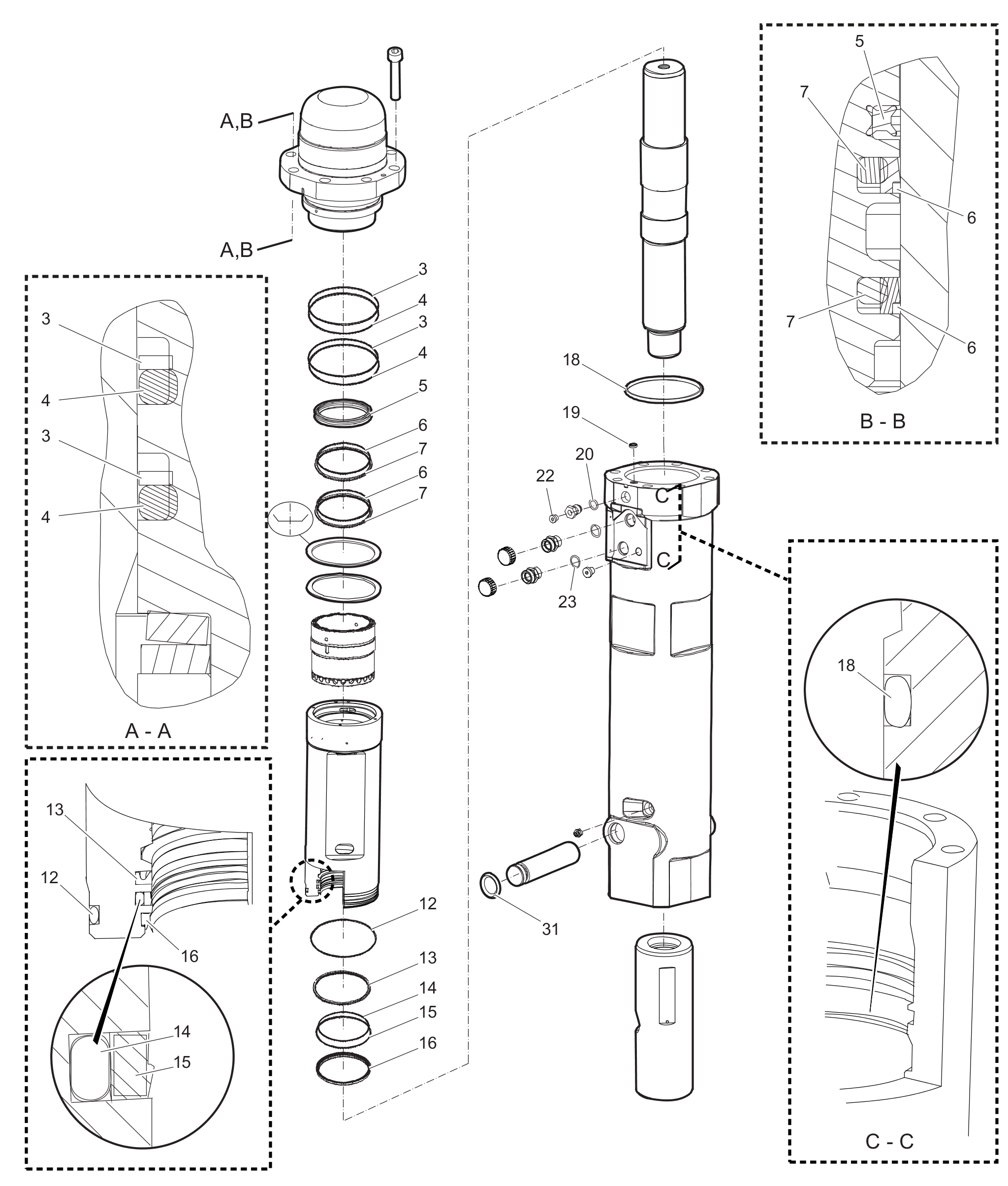

Spare Parts
Seal kit
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | SEAL KIT | 1 | ||||
| 0661150127 | BACK-UP RING | 2 | ||||
| 3361192007 | O-RING | 2 | ||||
| 3361192002 | QUAD-RING | 1 | ||||
| 3361192003 | SEAL | 2 | ||||
| 3361192004 | O-RING | 2 | ||||
| 3361192011 | O-RING | 1 | ||||
| 3361192013 | SEAL | 1 | ||||
| 3361192015 | O-RING | 1 | ||||
| 3361192014 | SEAL | 1 | ||||
| 3361192016 | WIPER | 1 | ||||
| 3315296625 | SEAL | 1 | ||||
| 3115329002 | SEAL RING | 1 | ||||
| 0663925100 | O-RING | 1 | ||||
| 3360478426 | THREADED PLUG | 1 | ||||
| 3361192067 | O-RING | 2 | ||||
| 0663212005 | O-RING | 1 | ||||
| 3361192066 | O-RING | 1 |
