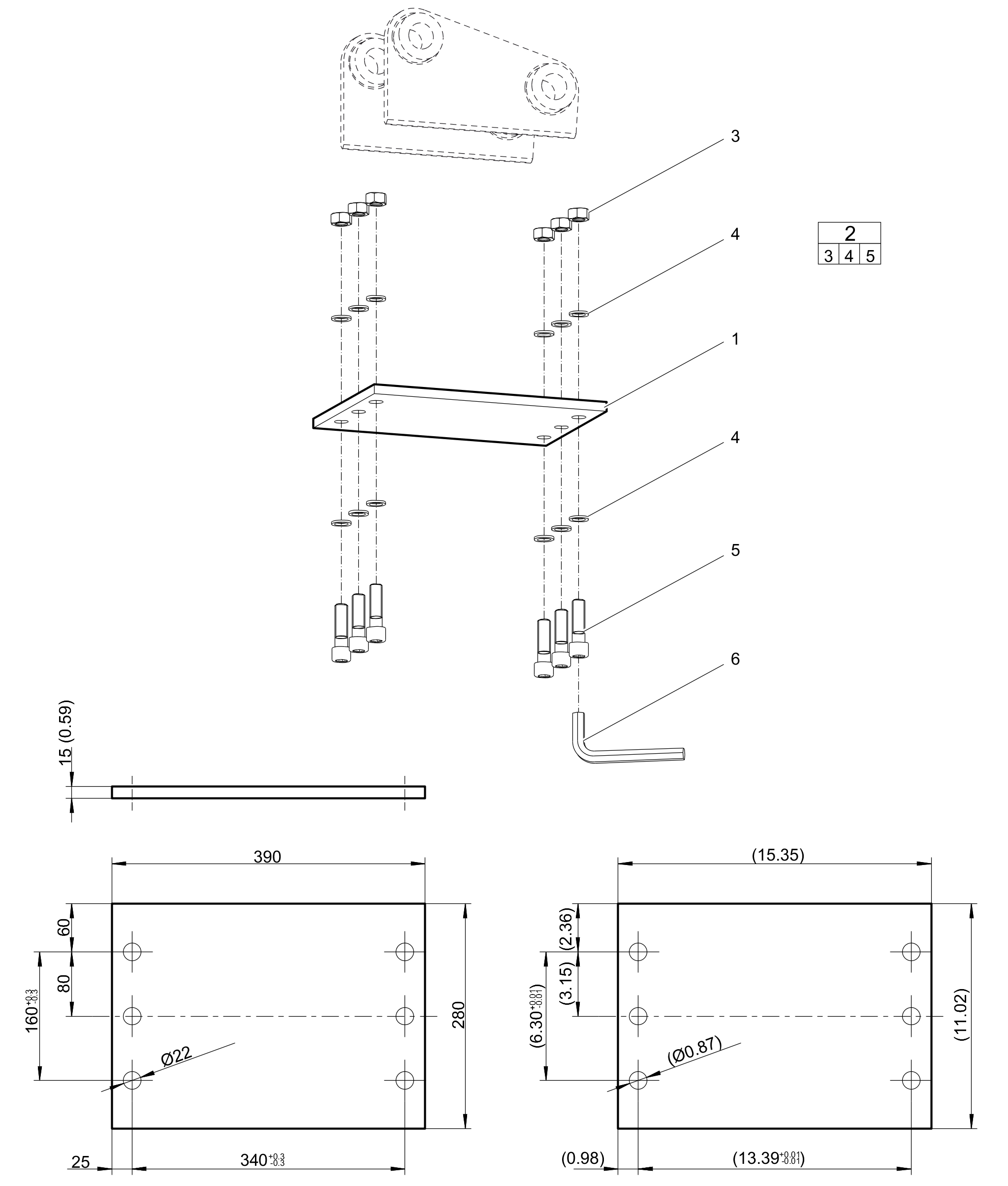

Base plate (39) EC 60T, EC 70T, EC 80T
Spare Parts
Base plate
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363099701 | BASE PLATE WITH THROUGH BORINGS | 1 | material: EN10025-S355 J2G3 | |||
| 3363106508 | BOLT KIT | 1 | ||||
| 3360103251 | NUT | 6 | ||||
| 3361850748 | LOCK WASHER | 12 | ||||
| 3360026786 | ALLEN SCREW | 6 | ||||
| 3360209253 | ALLEN KEY (19 mm) | 1 |
