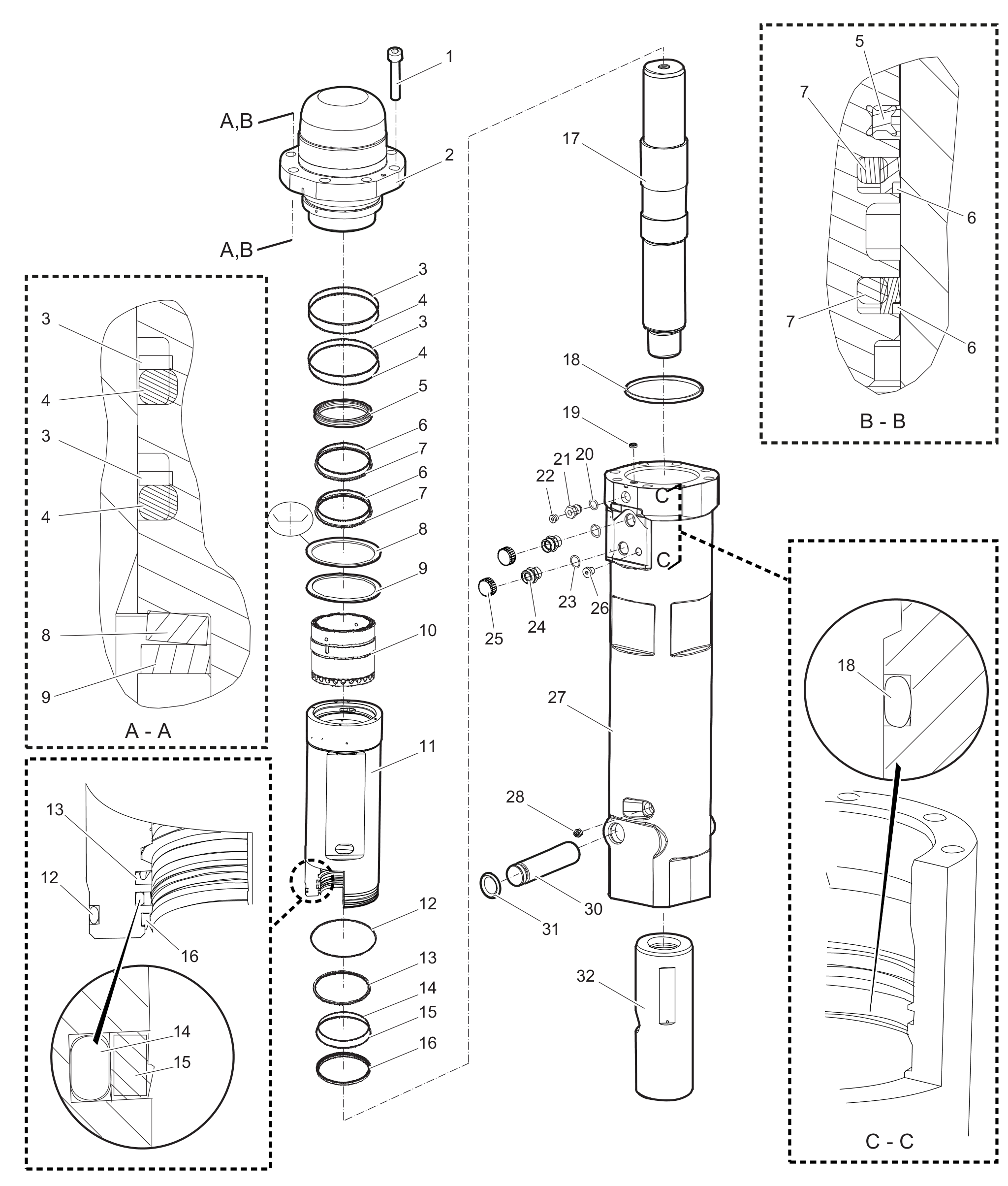

Percussion unit from BES114055
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 0211148303 | SCREW | 8 | ||||
| 3315411000 | BACK HEAD | 1 | ||||
| 0661150127 | BACK-UP RING | 2 | ||||
| 3361192007 | O-RING | 2 | ||||
| 3361192002 | QUAD-RING | 1 | ||||
| 3361192003 | SEAL | 2 | ||||
| 3361192004 | O-RING | 2 | ||||
| 3361150004 | PLATE SPRING | 1 | ||||
| 3361150005 | SPACER | 1 | ||||
| 3361150106 | CONTROL VALVE | 1 | ||||
| 3361150002 | CYLINDER BUSH | 1 | ||||
| 3361192011 | O-RING | 1 | ||||
| 3361192013 | SEAL | 1 | ||||
| 3361192015 | O-RING | 1 | ||||
| 3361192014 | SEAL | 1 | ||||
| 3361192016 | WIPER | 1 | ||||
| 3315332830 | PISTON | 1 | ||||
| 3315296625 | SEAL | 1 | ||||
| 3115329002 | SEAL RING | 1 | ||||
| 0663925100 | O-RING | 1 | ||||
| 3363087286 | FILLING VALVE, complete | 1 | ||||
| 3360478426 | THREADED PLUG | 1 | ||||
| 3361192067 | O-RING | 2 | ||||
| 3361031476 | FITTING | 2 | ||||
| 3361353486 | COVER | 2 | ||||
| 3363066963 | PLUG | 1 | ||||
| 3315408005 | CYLINDER HOUSING | 1 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| 3315418110 | TOOL RETAINER | 1 | ||||
| 0663212005 | O-RING | 1 | ||||
| 3361150012 | TOOL BUSHING | 1 |
