Service, repair and wear part kits
Spare Parts

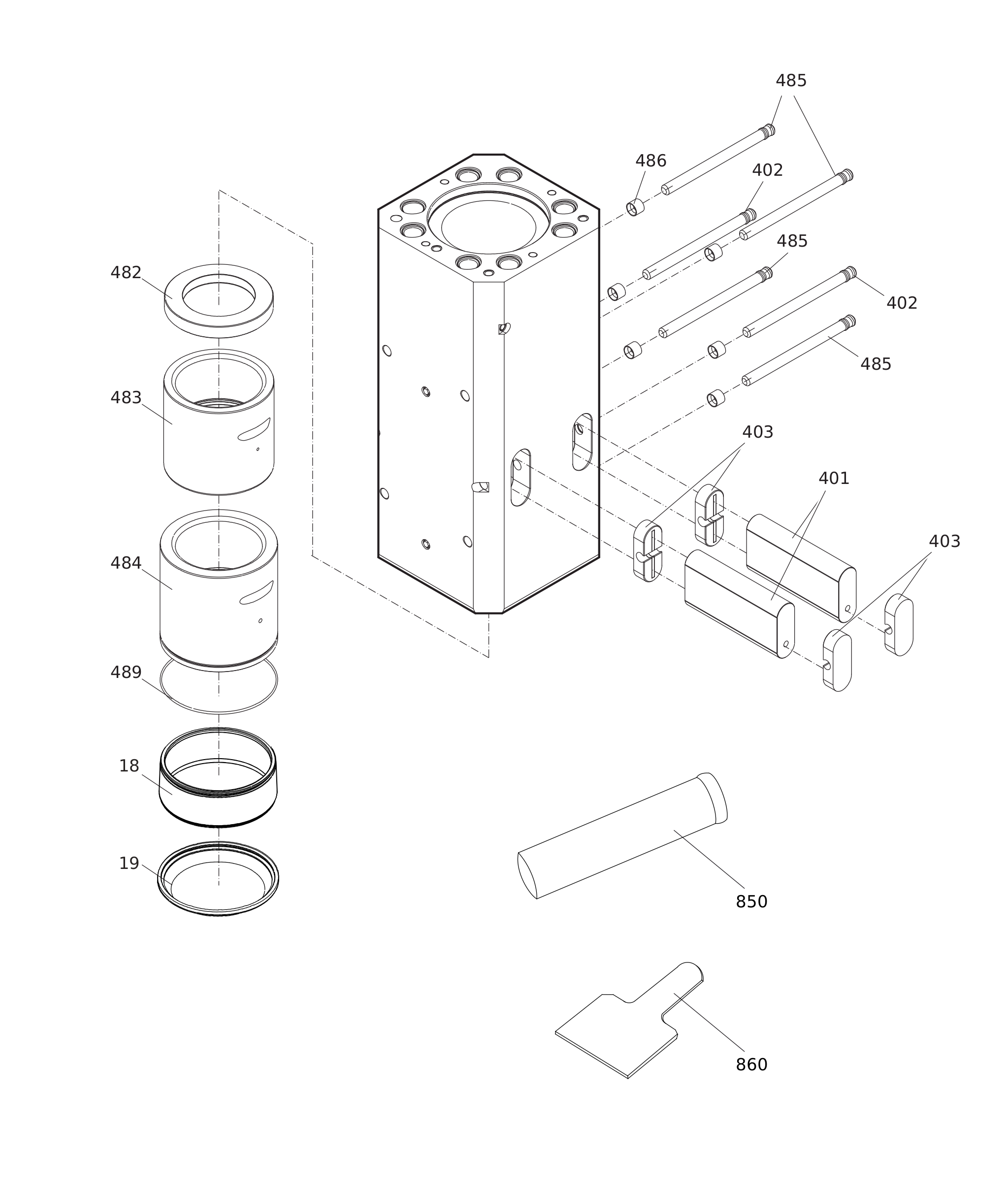

Lower breaker part kit (steel)
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363098332 | Lower breaker part kit (steel) | 1 | ||||
| 3363100709 | Base for wiper | 1 | ||||
| 3363100711 | Wiper | 1 | ||||
| 3363100027 | Retainer bar | 2 | ||||
| 3362260431 | BOLT | 4 | ||||
| 3362260431 | BOLT | 2 | ||||
| 3363100029 | Plug | 4 | ||||
| 3363100035 | Impact ring | 1 | ||||
| 3363100037 | Wear bush | 1 | ||||
| 3363100041 | Wear bush (steel) | 1 | ||||
| 3362260433 | LOCKING BUSH | 6 | ||||
| 3363094978 | O-ring | 1 | ||||
| - | BIO CHISEL PASTE CARTRIDGE, 1 x 400 g (0.88 lbs) | 1 | ||||
| 3363100467 | Test gauge lower wear bush | 1 |
