Spare Parts

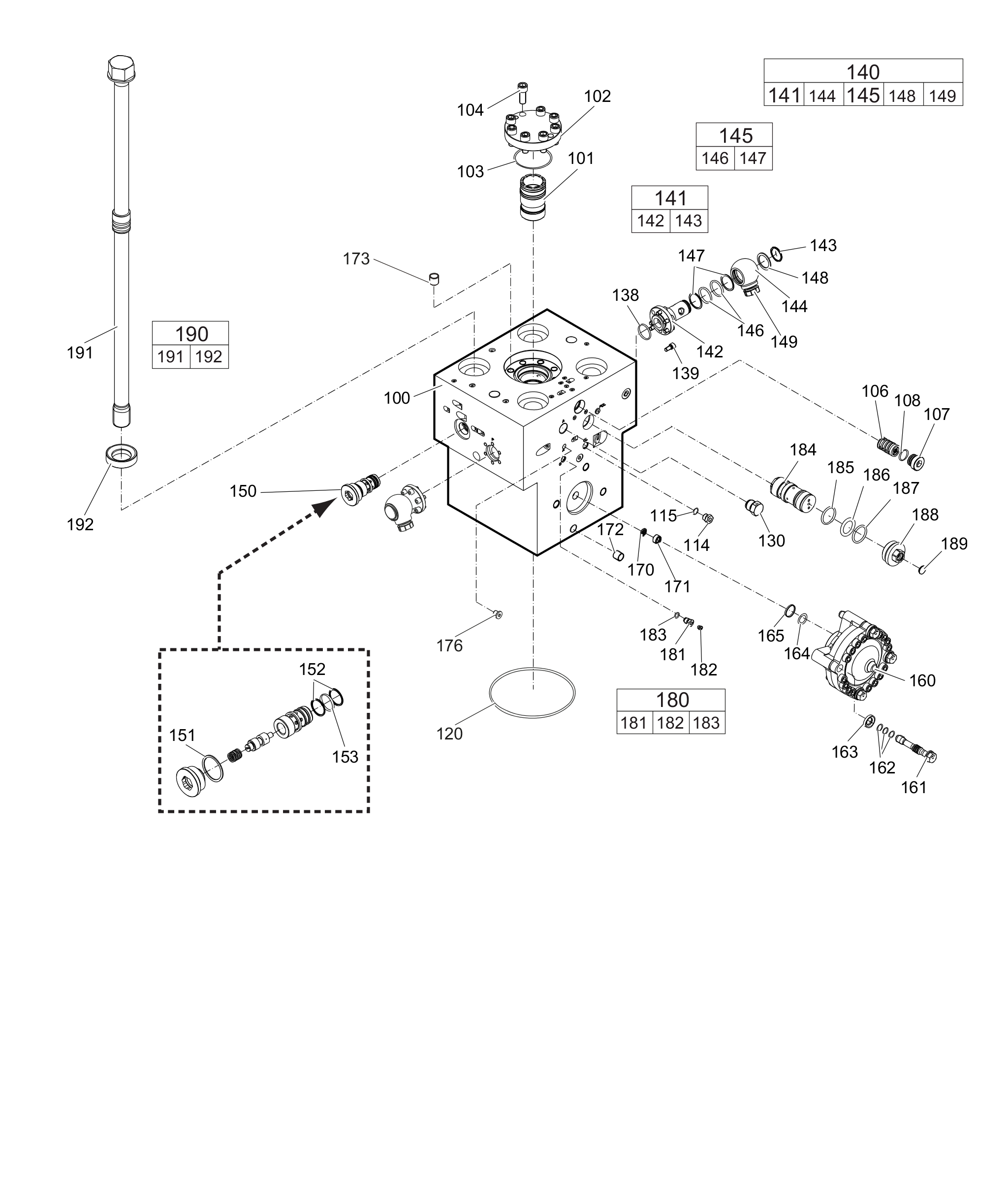

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363120163 | Cylinder cover | 1 | ||||
| 3363105013 | Main control valve | 1 | ||||
| 3363105015 | Cover | 1 | ||||
| 3360314849 | O-ring | 1 | ||||
| 3360026782 | ALLEN SCREW | 8 | ||||
| 3363035453 | VALVE | 1 | ||||
| 3363035425 | THREADED PLUG | 1 | ||||
| 3360314370 | O-RING | 1 | ||||
| 3361854657 | CONNECTING SCREW | 1 | ||||
| 3360478171 | O-RING | 1 | ||||
| 3363103803 | O-RING | 1 | ||||
| 3361854511 | NON-RETURN VALVE | 1 | ||||
| 3360314373 | O-RING | 2 | ||||
| 3360103750 | ALLEN SCREW | 12 | ||||
| 3363116891 | SWIVEL JOINT, complete | 2 | ||||
| 3363116890 | ADAPTER, complete | 1 | ||||
| - | ADAPTER | 1 | ||||
| 3363116062 | SNAPRING | 1 | ||||
| 3361356643 | ADAPTER | 1 | ||||
| 3361850422 | SEAL KIT | 1 | ||||
| - | O-RING | 2 | ||||
| - | BACK-UP RING | 2 | ||||
| 3361356645 | DISK | 1 | ||||
| 3361353489 | CAP | 1 | ||||
| 3363120683 | VALVE | 1 | ||||
| 3363121175 | SEAL | 1 | ||||
| 3363121176 | BACK-UP RING | 2 | ||||
| 3360314453 | O-RING | 1 | ||||
| 3363094981 | HP-ACCUMULATOR | 1 | ||||
| 3363113101 | FASTENING SCREW | 4 | ||||
| 3363114730 | SERVICE KIT O-RINGS | 1 | ||||
| 3363100049 | WASHER | 4 | ||||
| 3360314364 | O-RING | 1 | ||||
| 3360328046 | BACK-UP RING | 1 | ||||
| 3361844113 | STRAINER DISK | 1 | ||||
| 3361844115 | THREADED PLUG | 1 | ||||
| 3361031546 | THREADED INSERT | 4 | ||||
| 3361031529 | THREADED INSERT | 8 | ||||
| 3360478439 | THREADED PLUG | 1 | ||||
| 3363087286 | FILLING VALVE, complete | 1 | ||||
| 3362264253 | FILLING VALVE | 1 | ||||
| 3360478426 | THREADED PLUG | 1 | ||||
| 3360175125 | O-RING | 1 | ||||
| 3363126207 | SAFETY VALVE | 1 | ||||
| 3363123253 | SEAL | 1 | ||||
| 3360314790 | O-RING | 1 | ||||
| 3363126739 | BACK-UP RING | 1 | ||||
| 3363126740 | THREADED PLUG | 1 | with item 186, 187, 189 | |||
| 3363087087 | CAP | 1 | ||||
| 3363103835 | Tensioning bolt complete | 4 | ||||
| 3363105003 | Tensioning bolt | 1 | ||||
| 3363093653 | Washer | 1 |
