Mechanical
Spare Parts

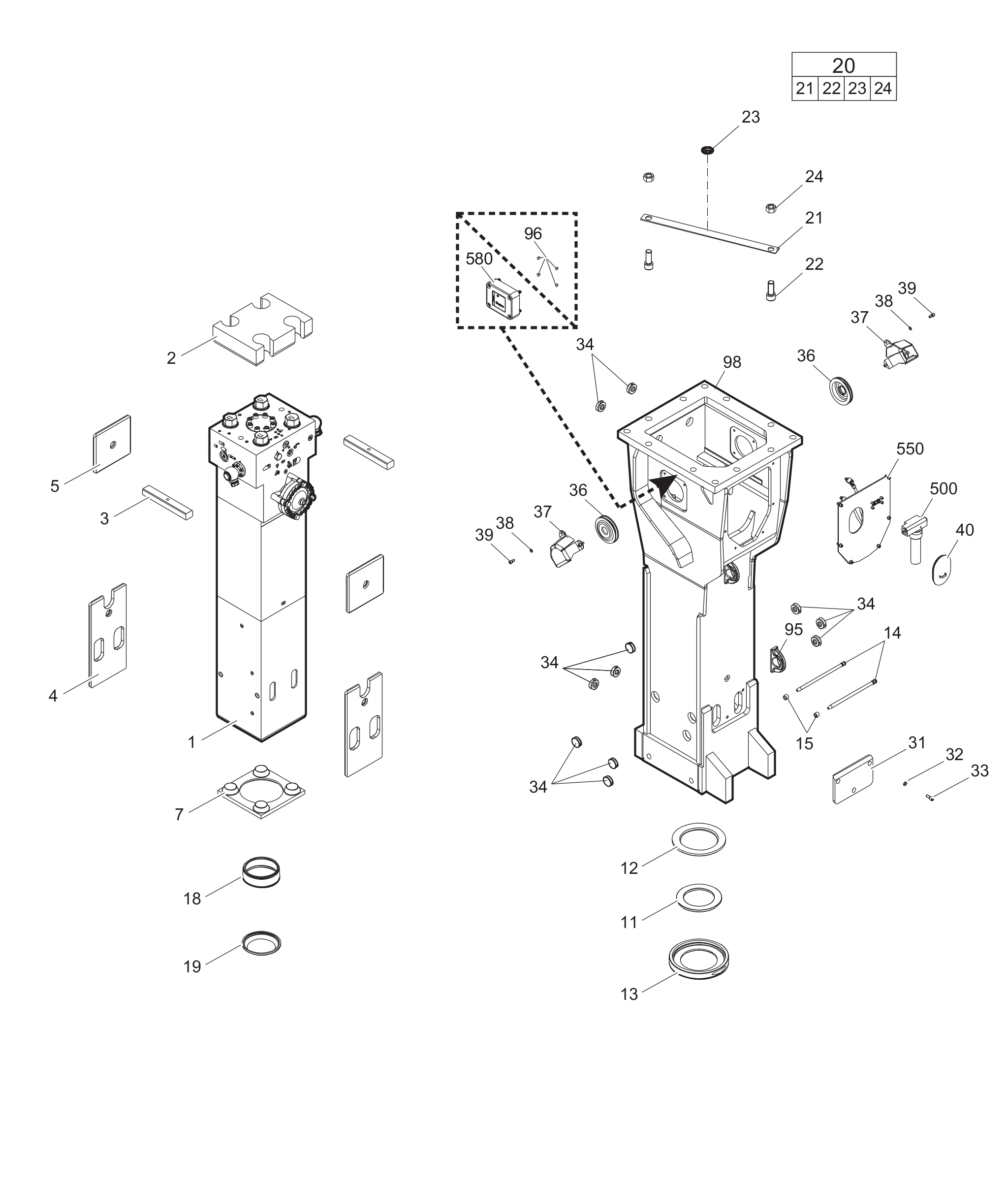

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | Percussion unit | 1 | see separate chapterB | steel see chapter Optional parts C | professional welding process necessary | |||
| 3363102759 | Elastic pad | 1 | ||||
| 3363102755 | Shock absorber | 2 | ||||
| 3363115360 | Guide plate | 2 | ||||
| 3363115361 | Guide plate | 2 | ||||
| 3363086237 | Plate | 1 | ||||
| 3363104427 | Floating ring (tribolid) | 1 | ||||
| 3363104425 | Counter ring | 1 | ||||
| 3363104429 | Guide ring | 1 | ||||
| 3363070644 | Bolt | 2 | ||||
| 3361854363 | LOCKING BUSH | 2 | ||||
| 3363105045 | Base for wiper | 1 | ||||
| 3363105047 | Wiper | 1 | ||||
| 3363094826 | Transport safety device complete | 1 | ||||
| - | Transport safety device | 1 | ||||
| 3360114151 | ALLEN SCREW | 2 | ||||
| 3363091872 | LABEL TRANSPORT SAFETY DEVICE | 1 | ||||
| 3360103255 | NUT | 2 | ||||
| 3363115523 | Plate | 1 | ||||
| 3361333703 | LOCK WASHER | 3 | ||||
| 3362328113 | ALLEN SCREW | 3 | ||||
| 3363086017 | PLUG | 11 | ||||
| 3363115515 | Cover | 2 | ||||
| 3363115524 | Swivel joint cover | 2 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 6 | ||||
| 3360103750 | ALLEN SCREW | 6 | ||||
| 3363092697 | COVER | 1 | ||||
| 3363111995 | LIFTING EYE | 2 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | only for hydraulic breakers without HATCON | |||
| 3363115538 | Breaker box | 1 | with item 95 and 96 | |||
| 3363067123 | AUTOMATIC LUBRICATION SYSTEM | 1 | ||||
| 3363115517 | Connecting kit for automatic lubrication system | 1 | see separate chapterB | steel see chapter Optional parts C | professional welding process necessary | |||
| 3315439180 | HATCON | 1 | only for hydraulic breakers with HATCON / see separate chapter |
