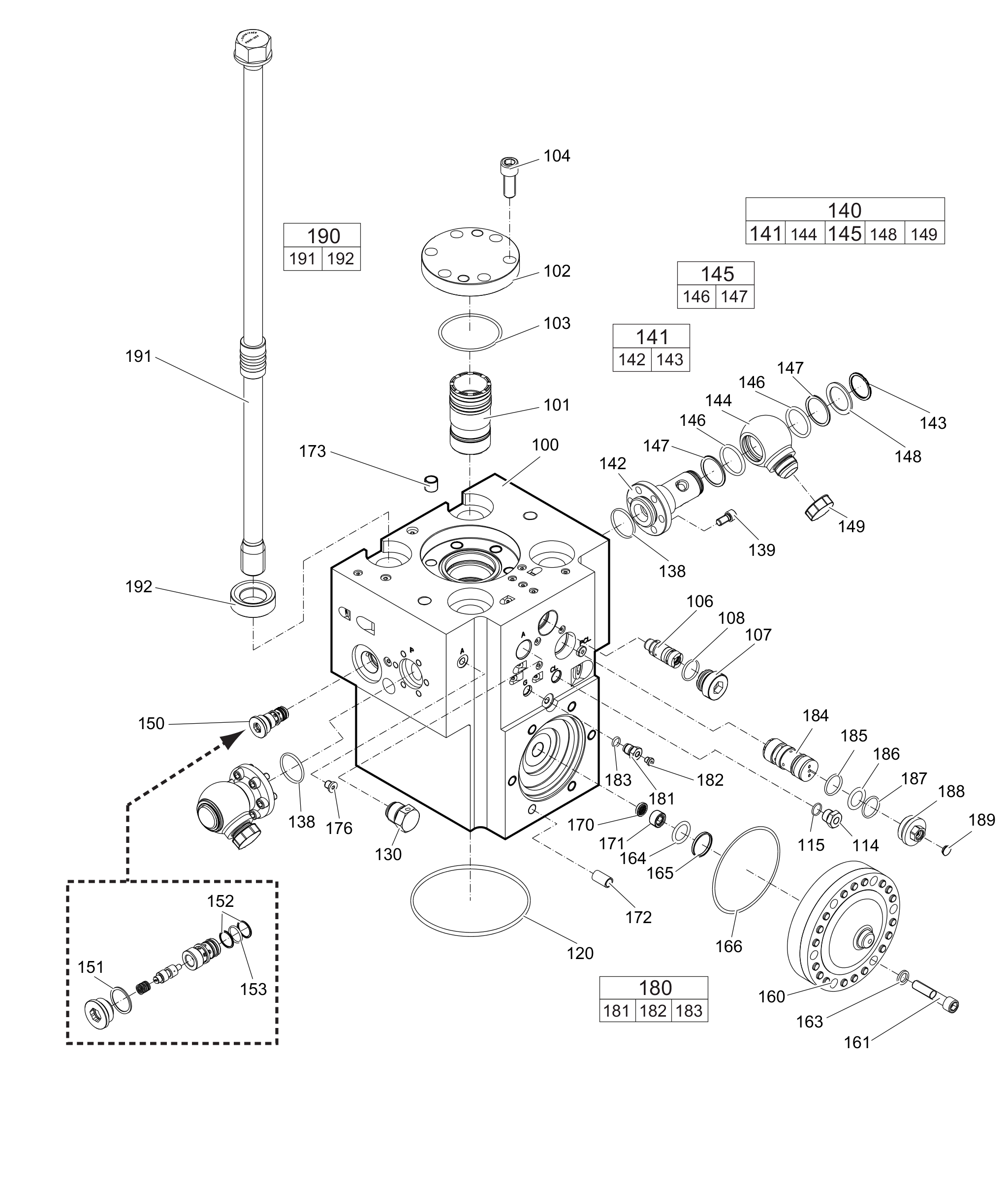

Percussion unit part 1: cylinder cover
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363119865 | CYLINDER COVER | 1 | ||||
| 3363097715 | Main control valve | 1 | ||||
| 3363097717 | Cover | 1 | ||||
| 3360314375 | O-RING | 1 | ||||
| 3360026782 | ALLEN SCREW | 6 | ||||
| 3363035453 | VALVE | 1 | ||||
| 3363035425 | THREADED PLUG | 1 | ||||
| 3360314370 | O-RING | 1 | ||||
| 3361854657 | CONNECTING SCREW | 1 | ||||
| 3360478171 | O-RING | 1 | ||||
| 3361031950 | O-ring | 1 | ||||
| 3361854511 | NON-RETURN VALVE | 1 | ||||
| 3360314373 | O-RING | 2 | ||||
| 3360103750 | ALLEN SCREW | 12 | ||||
| 3363116891 | SWIVEL JOINT, complete | 2 | ||||
| 3363116890 | ADAPTER, complete | 1 | ||||
| - | ADAPTER | 1 | ||||
| 3363116062 | SNAPRING | 1 | ||||
| 3361356643 | ADAPTER | 1 | ||||
| 3361850422 | SEAL KIT | 1 | ||||
| - | O-RING | 2 | ||||
| - | BACK-UP RING | 2 | ||||
| 3361356645 | DISK | 1 | ||||
| 3361353489 | CAP | 1 | ||||
| 3363120683 | VALVE | 1 | ||||
| 3363121175 | SEAL | 1 | ||||
| 3363121176 | BACK-UP RING | 2 | ||||
| 3360314453 | O-RING | 1 | ||||
| 3363069585 | HP-accumulator | 1 | ||||
| 3363070490 | ALLEN SCREW | 6 | ||||
| 3361333703 | LOCK WASHER | 6 | ||||
| 3361031912 | O-ring | 1 | ||||
| 3361850529 | Back-up ring | 1 | ||||
| 3361031990 | O-ring | 1 | ||||
| 3361844113 | STRAINER DISK | 1 | ||||
| 3361844115 | THREADED PLUG | 1 | ||||
| 3361031989 | Threaded insert | 6 | ||||
| 3361031529 | THREADED INSERT | 6 | ||||
| 3360478439 | THREADED PLUG | 1 | ||||
| 3363087286 | FILLING VALVE, complete | 1 | ||||
| 3362264253 | FILLING VALVE | 1 | ||||
| 3360478426 | THREADED PLUG | 1 | ||||
| 3360175125 | O-RING | 1 | ||||
| 3363126207 | SAFETY VALVE | 1 | ||||
| 3363123253 | SEAL | 1 | ||||
| 3360314790 | O-RING | 1 | ||||
| 3363126739 | BACK-UP RING | 1 | ||||
| 3363126740 | THREADED PLUG | 1 | with item 186, 187, 189 | |||
| 3363087087 | CAP | 1 | ||||
| 3363106905 | Tensioning bolt complete | 4 | ||||
| 3363109215 | Tensioning bolt | 1 | ||||
| 3363093649 | WASHER | 1 |
