Mechanical
Spare Parts

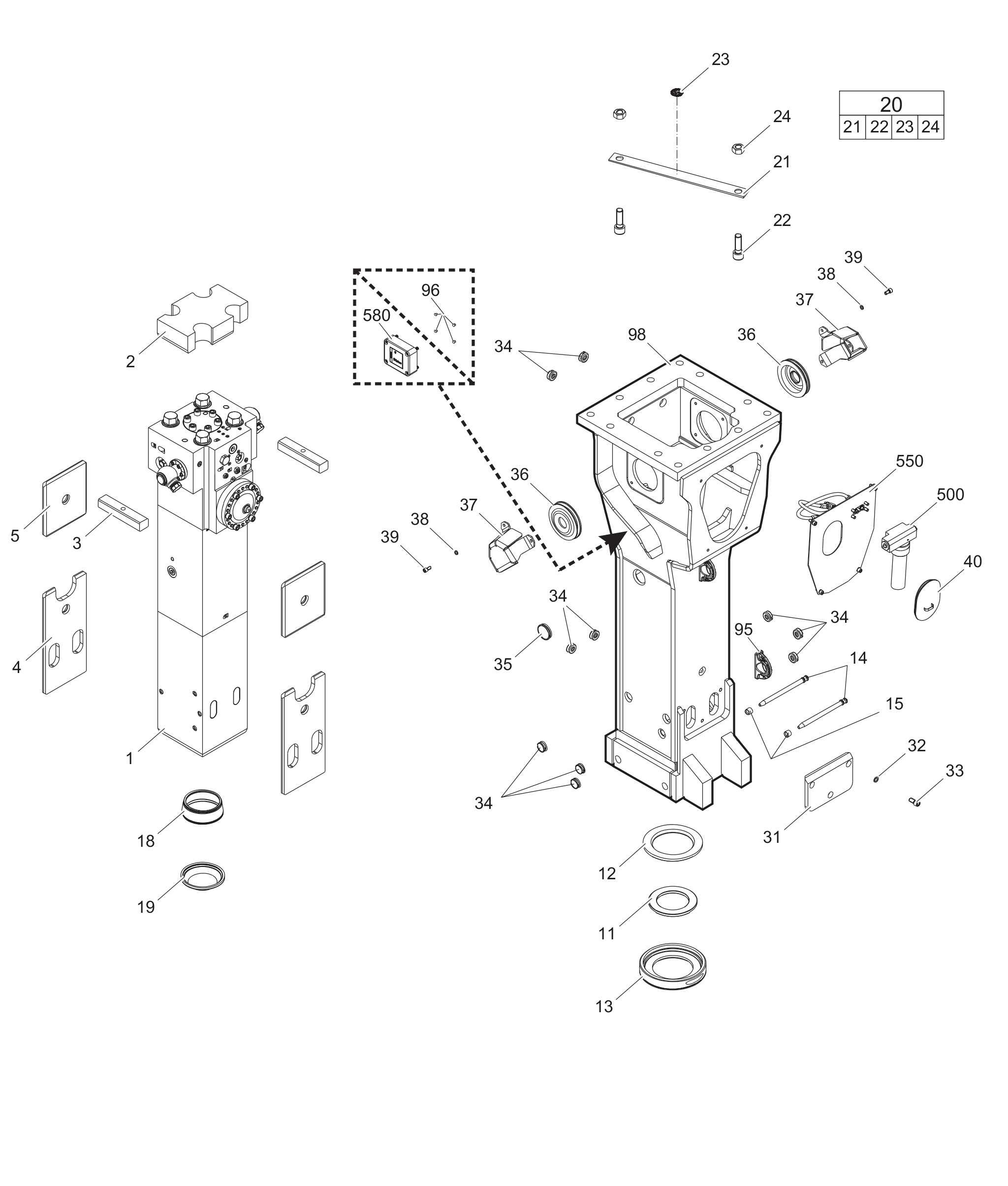

Hydraulic breaker HB 2000 DP
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | PERCUSSION UNIT | 1 | see separate chapterB | steel see chapter Optional parts C | professional welding process necessary | |||
| 3363104071 | Elastic pad | 1 | ||||
| 3363104073 | Shock absorber | 2 | ||||
| 3363115362 | Guide plate | 2 | ||||
| 3363115363 | Guide plate | 2 | ||||
| 3363100795 | Floating ring (tribolid) | 1 | ||||
| 3363100797 | Counter ring | 1 | ||||
| 3363100799 | Guide ring | 1 | ||||
| 3363069769 | Bolt | 2 | ||||
| 3361854363 | LOCKING BUSH | 2 | ||||
| 3363109243 | Base for wiper | 1 | ||||
| 3363109245 | Wiper | 1 | ||||
| 3363083343 | Transport safety device complete | 1 | ||||
| - | TRANSORT SAFETY DEVICE | 1 | ||||
| 3360026883 | ALLEN SCREW | 2 | ||||
| 3363091872 | LABEL TRANSPORT SAFETY DEVICE | 1 | ||||
| 3360103254 | NUT | 2 | ||||
| 3363115644 | Plate | 1 | ||||
| 3361333703 | LOCK WASHER | 3 | ||||
| 3362328113 | ALLEN SCREW | 3 | ||||
| 3363086015 | PLUG | 10 | ||||
| 3362267893 | PLUG | 1 | ||||
| 3363115515 | Cover | 2 | ||||
| 3363115524 | Swivel joint cover | 2 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 6 | ||||
| 3360103750 | ALLEN SCREW | 6 | ||||
| 3363092697 | COVER | 1 | ||||
| 3363111994 | LIFTING EYE | 2 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | only for hydraulic breakers without HATCON | |||
| 3363115643 | Breaker box | 1 | with item 95 and 96 | |||
| 3363067123 | AUTOMATIC LUBRICATION SYSTEM | 1 | ||||
| 3363115634 | Connecting kit for automatic lubrication system | 1 | see separate chapterB | steel see chapter Optional parts C | professional welding process necessary | |||
| 3315439180 | HATCON | 1 | only for hydraulic breakers with HATCON / see separate chapter |
