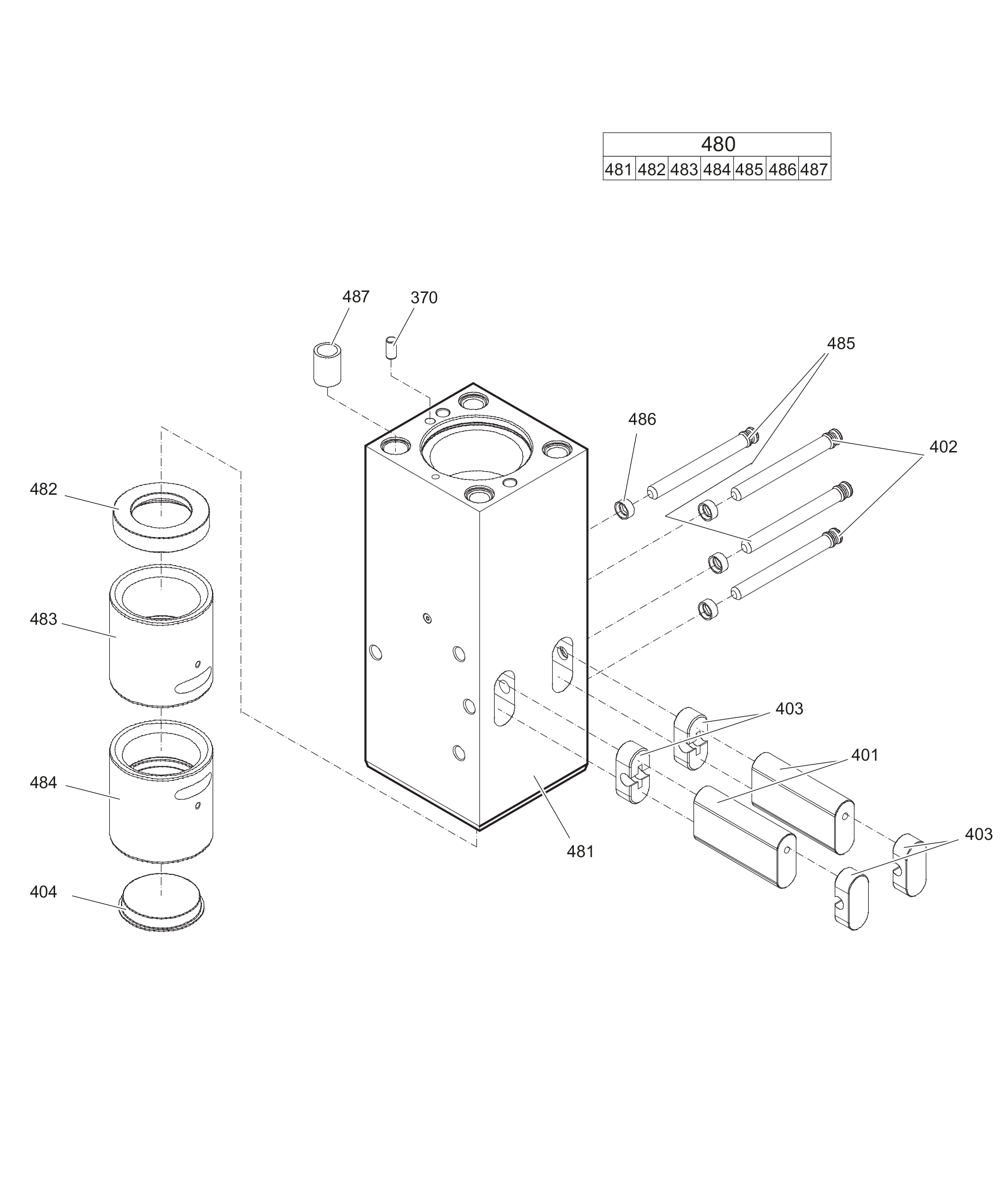

Percussion unit part 3: lower breaker part
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3360106784 | Parallel pin 14X28 | 1 | ||||
| 3363084075 | Retainer bar | 2 | ||||
| 3363085110 | Bolt | 2 | ||||
| 3362262925 | Plug | 4 | ||||
| 3363031714 | Protective cap | 1 | ||||
| 3363089402 | Lower breaker part complete | 1 | Note: When ordering a lower breaker part for DustProtector version it is imperative to order additionally the base for wiper (item 18) and the wiper (item 19). | |||
| - | Lower breaker part | 1 | ||||
| 3363084077 | Impact ring | 1 | ||||
| 3363084071 | Wear bush | 1 | ||||
| 3363090503 | Wear bush (steel) | 1 | ||||
| 3363085110 | Bolt | 2 | ||||
| 3363033043 | Locking bush | 4 | ||||
| 3363089419 | Threaded insert | 4 |
