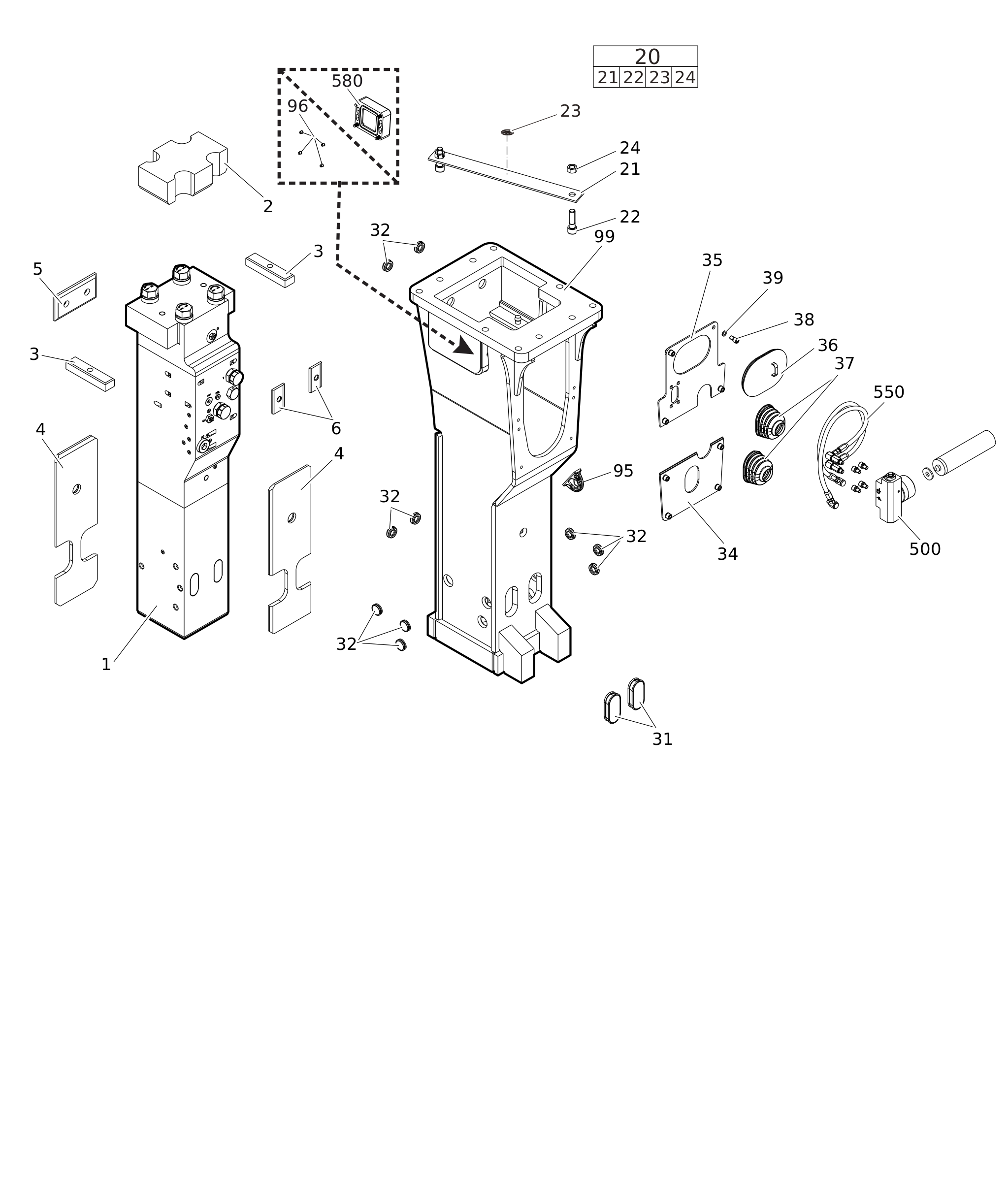

Hydraulic breaker
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | Percussion unit | 1 | see separate chapterB | professional welding process necessary | |||
| 3363082899 | Elastic pad | 1 | ||||
| 3361852237 | Shock absorber | 2 | ||||
| 3363120055 | Guide plate | 2 | ||||
| 3363084231 | Guide plate | 1 | ||||
| 3363082897 | Guide plate | 2 | ||||
| 3363083731 | TRANSPORT SAFETY DEVICE, complete | 1 | ||||
| 3361855779 | TRANSPORT SAFETY DEVICE | 1 | ||||
| 3360026786 | ALLEN SCREW | 2 | ||||
| 3363091872 | LABEL TRANSPORT SAFETY DEVICE | 1 | ||||
| 3360103251 | NUT | 2 | ||||
| 3363086011 | PLUG | 2 | ||||
| 3362267897 | PLUG | 10 | ||||
| 3363120045 | Plate | 1 | ||||
| 3363120044 | Plate | 1 | ||||
| 3363092697 | COVER | 1 | ||||
| 3363118186 | BELLOWS | 2 | ||||
| 3362328480 | ALLEN SCREW | 8 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 8 | ||||
| 3363111993 | LIFTING EYE | 1 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | only for hydraulic breakers without HATCOND | with item 95 and 96 | |||
| 3363120046 | Breaker box | 1 | ||||
| 3363067123 | AUTOMATIC LUBRICATION SYSTEM | 1 | ||||
| 3363120047 | Connection kit for automatic lubrication system | 1 | see separate chapterB | professional welding process necessary | |||
| 3315439180 | HATCON | 1 | only for hydraulic breakers with HATCON / see separate chapter |
