Spare Parts

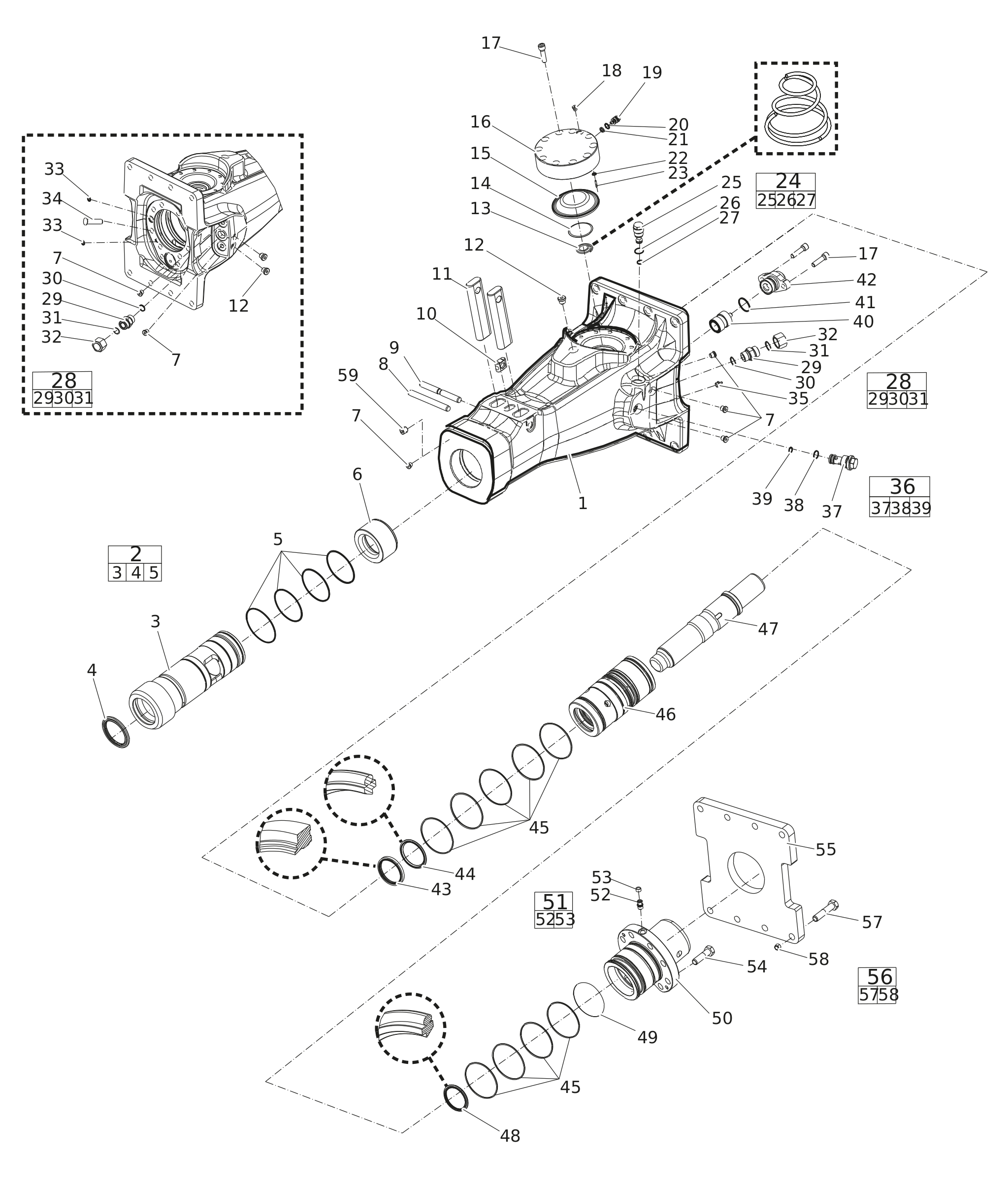

Hydraulic breaker
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | BREAKER BODY | 1 | ||||
| - | BREAKER BODY | 1 | ||||
| - | BREAKER BODY | 1 | ||||
| - | BREAKER BODY | 1 | ||||
| 3315354080 | BUSHING STANDARD, complete | 1 | ||||
| - | BUSHING, Ø 90 mm (Ø 3.54 in.) | 1 | ||||
| 3315356200 | SCRAPER RING | 1 | ||||
| 0663210498 | O-RING | 4 | ||||
| 3315277800 | STOP RING | 1 | ||||
| 0686644207 | PLUG | 6 | ||||
| 0108169127 | SPRING PIN, option | 1 | ||||
| 3315135000 | LOCK PIN | 1 | ||||
| 3315141900 | LOCK BUFFER | 1 | ||||
| 3315134900 | RETAINER BAR | 2 | ||||
| 0686371801 | PLUG | 3 | ||||
| 3315359600 | COIL SPRING | 1 | ||||
| 3315359500 | DIAPHRAGM SUPPORT | 1 | ||||
| 3315289000 | DIAPHRAGM | 1 | ||||
| 3315359400 | ACCUMULATOR HOUSE | 1 | ||||
| 0211196534 | HEX SOCK. SCREW | 12 | ||||
| 0686371805 | PLUG | 1 | ||||
| 3315366000 | VALVE | 1 | ||||
| 0663212000 | O-RING | 1 | ||||
| 3115329002 | SEAL RING | 1 | ||||
| 0663211400 | O-RING | 1 | ||||
| 0101414000 | PIN | 1 | ||||
| 3315335000 | PRESSURE RELIEF VALVE, complete | 1 | ||||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| 0663903201 | O-RING | 1 | ||||
| 0663903201 | O-RING | 1 | ||||
| - | O-RING | 1 | ||||
| - | O-RING | 1 | ||||
| 0580001845 | NIPPLE, complete | 2 | ||||
| - | NIPPLE | 1 | ||||
| - | NIPPLE | 1 | ||||
| - | NIPPLE | 1 | ||||
| 0664000004 | SEAL RING | 1 | ||||
| 0663210217 | O-RING | 1 | ||||
| 0570700010 | CAP | 2 | ||||
| 0665090014 | SEAL RING | 2 | ||||
| 3315301100 | PLUG | 1 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| 3315369551 | RESTRICTOR STANDARD, complete Ø 5.1 mm (Ø 0.20 in.) | 1 | ||||
| - | RESTRICTION | 1 | ||||
| 3315362400 | CONTROL VALVE | 1 | ||||
| 0663990033 | SEAL | 1 | ||||
| 3315362900 | VALVE COVER | 1 | ||||
| 0665909956 | WIPER | 1 | ||||
| 0665070130 | PISTEN ROD SEAL | 1 | ||||
| 0663990036 | SEAL RING | 9 | ||||
| 3315359210 | LINER | 1 | ||||
| 3315359110 | PISTON | 1 | ||||
| 0665070129 | PISTON ROD SEAL | 1 | ||||
| 0663211516 | O-RING | 1 | ||||
| 3315359300 | BACK HEAD | 1 | ||||
| 3315244881 | CHECK VALVE, complete | 1 | ||||
| - | CHECK VALVE | 1 | ||||
| 3315280800 | VALVE RUBBER | 1 | ||||
| 3315431201 | HEXAGON BOLT | 8 | ||||
| 3315295100 | BASE PLATE | 1 | ||||
| 3315296490 | BOLT KIT | 1 | ||||
| - | SCREW, M16 x 75 mm 8.8 | 8 | ||||
| - | SCREW, M16 x 75 mm 8.8 | 8 | ||||
| - | SCREW, M16 x 75 mm 8.8 | 8 | ||||
| - | NUT, M16 | 8 | ||||
| - | NUT, M16 | 8 | ||||
| - | NUT, M16 | 8 | ||||
| 3315395200 | WATER NOSSLE | 1 |
