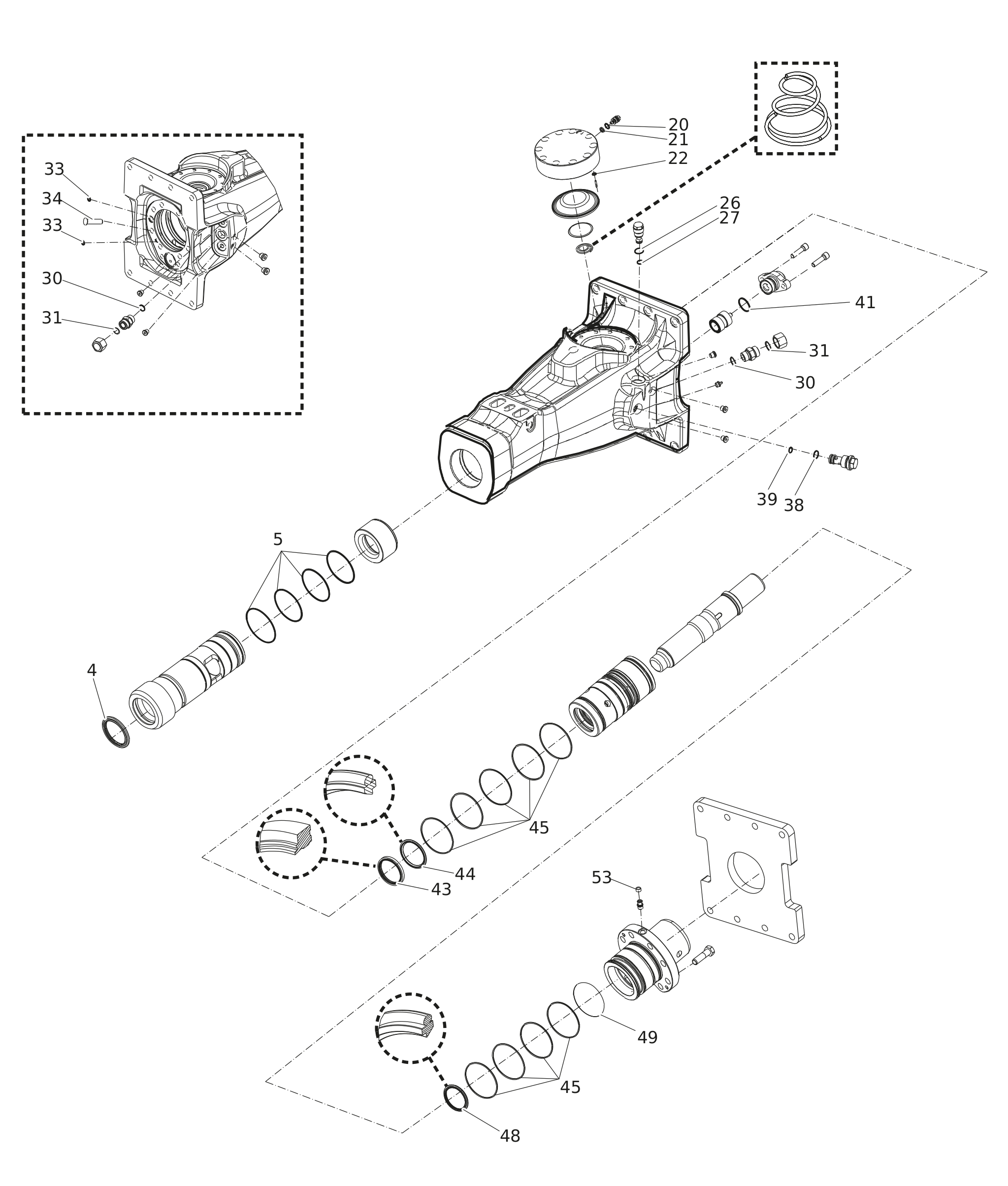

Spare Parts
Seal kit
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | SEAL KIT | 1 | ||||
| 3315356200 | SCRAPER RING | 1 | ||||
| 0663210498 | O-RING | 4 | ||||
| 0663212000 | O-RING | 1 | ||||
| 3115329002 | SEAL RING | 1 | ||||
| 0663211400 | O-RING | 1 | ||||
| 0663903201 | O-RING | 1 | ||||
| 0663903201 | O-RING | 1 | ||||
| - | O-RING | 1 | ||||
| - | O-RING | 1 | ||||
| 0664000004 | SEAL RING | 1 | ||||
| 0663210217 | O-RING | 1 | ||||
| 0665090014 | SEAL RING | 2 | ||||
| 3315301100 | PLUG | 1 | ||||
| 0663990033 | SEAL | 1 | ||||
| 3315362900 | VALVE COVER | 1 | ||||
| 0665909956 | WIPER | 1 | ||||
| 0665070130 | PISTEN ROD SEAL | 1 | ||||
| 0663990036 | SEAL RING | 9 | ||||
| 0665070129 | PISTON ROD SEAL | 1 | ||||
| 0663211516 | O-RING | 1 | ||||
| 3315280800 | VALVE RUBBER | 1 |
