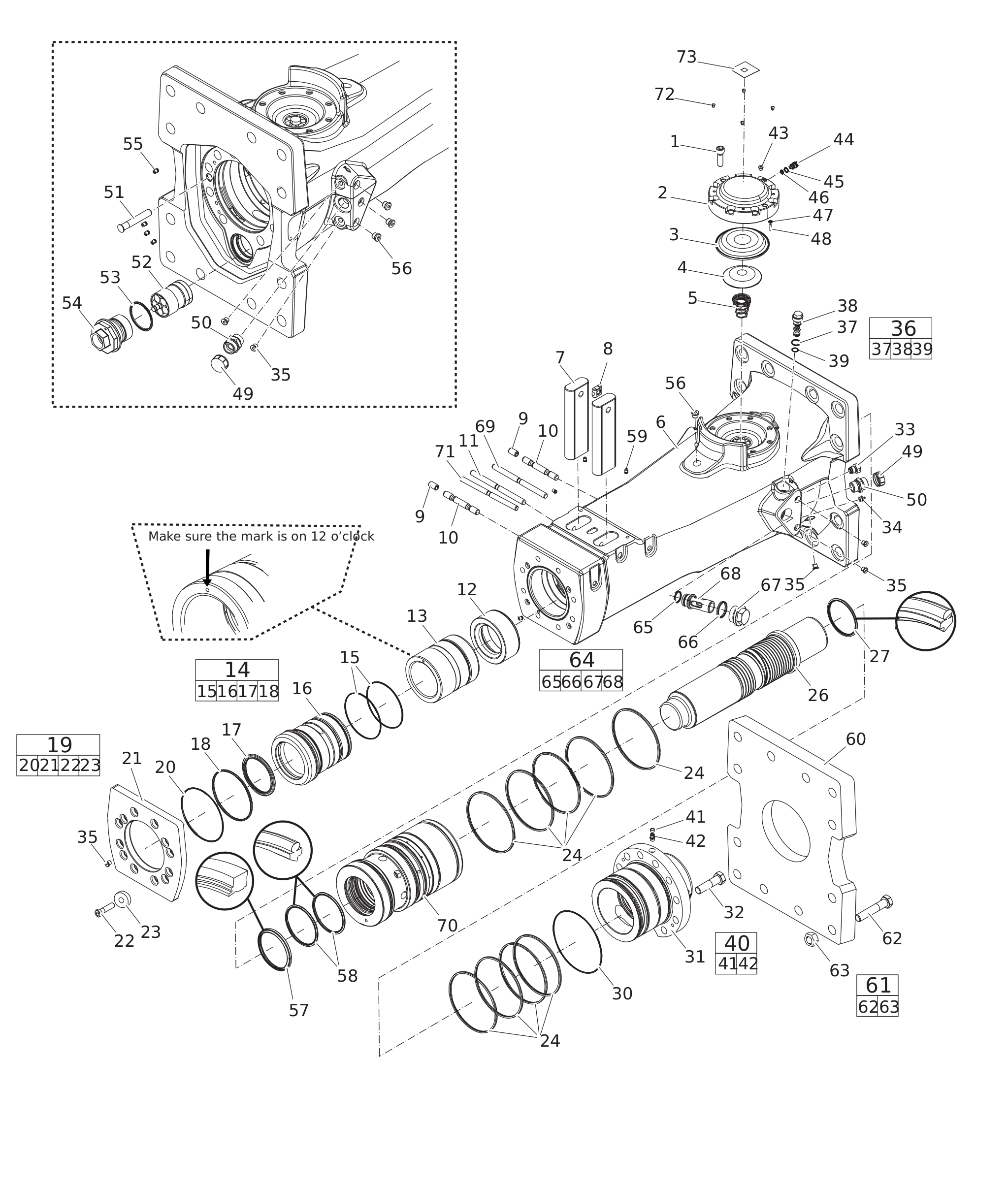

Hydraulic breaker
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | HAMMER BODY | 0 | ||||
| - | HAMMER BODY | 1 | ||||
| 0211196544 | HEXAGON SOCKET SCREW | 8 | ||||
| 0211196544 | HEXAGON SOCKET SCREW | 0 | ||||
| 3315414100 | DIAPHRAGM COVER | 1 | ||||
| 3315414100 | DIAPHRAGM COVER | 0 | ||||
| 3315416300 | DIAPHRAGM | 1 | ||||
| 3315416300 | DIAPHRAGM | 0 | ||||
| 3315414200 | DIAPHRAGM SUPPORT | 1 | ||||
| 3315414200 | DIAPHRAGM SUPPORT | 0 | ||||
| 3315418800 | COIL SPRING | 0 | ||||
| 3315418800 | COIL SPRING | 1 | ||||
| - | BREAKER BODY | 1 | ||||
| - | BREAKER BODY | 1 | ||||
| 3315412100 | RETAINER BAR | 2 | ||||
| 3315412100 | RETAINER BAR | 0 | ||||
| 3315141900 | LOCK BUFFER | 1 | ||||
| 3315141900 | LOCK BUFFER | 0 | ||||
| 0108110322 | SPRING PIN | 0 | ||||
| 0108110322 | SPRING PIN | 2 | ||||
| 3315395700 | LOCKING PIN | 0 | ||||
| 3315395700 | LOCKING PIN | 2 | ||||
| 3315411800 | LOCKING PIN | 1 | ||||
| 3315411800 | LOCKING PIN | 0 | ||||
| 3315411500 | STOP RING | 1 | ||||
| 3315411500 | STOP RING | 0 | ||||
| 3315411600 | WEAR BUSH | 0 | ||||
| 3315411600 | WEAR BUSH | 1 | ||||
| - | WEAR BUSH, complete | 0 | ||||
| - | WEAR BUSH, complete | 1 | ||||
| 0663212001 | O-RING | 2 | ||||
| - | WEAR BUSH | 1 | ||||
| 3315412200 | SCRAPER RING | 1 | ||||
| 0663212002 | O-RING | 1 | ||||
| - | WEAR PLATE, complete | 0 | ||||
| - | WEAR PLATE, complete | 1 | ||||
| 0663211999 | O-RING | 1 | ||||
| - | 1 | |||||
| 3315431101 | HEXAGON SOCKET SCREW | 8 | ||||
| 0333520027 | LOCK WASHER | 8 | ||||
| 0663990045 | SEAL | 9 | ||||
| 0663990045 | SEAL | 0 | ||||
| 3315411200 | PISTON | 1 | ||||
| 3315411200 | PISTON | 0 | ||||
| 0665070175 | PISTON ROD SEAL | 0 | ||||
| 0665070175 | PISTON ROD SEAL | 1 | ||||
| 0663212003 | O-RING | 1 | ||||
| 0663212003 | O-RING | 0 | ||||
| 3315411455 | BACK HEAD | 0 | ||||
| 3315411455 | BACK HEAD | 1 | ||||
| 0147163803 | SCREW, HEX HEAD | 0 | ||||
| 0147163803 | SCREW, HEX HEAD | 10 | ||||
| 3363109435 | NON RETURN VALVE | 1 | ||||
| 3363109435 | NON RETURN VALVE | 0 | ||||
| 3360433774 | GREASE NIPPLE | 0 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| 0686644207 | PLUG | 0 | ||||
| 0686644207 | PLUG | 9 | ||||
| 3315401100 | PRESSURE RELIEF VALVE, complete | 0 | ||||
| 3315401100 | PRESSURE RELIEF VALVE, complete | 1 | ||||
| 0663910401 | O-RING | 1 | ||||
| 0663910401 | O-RING | 1 | ||||
| 0663903201 | O-RING | 1 | ||||
| 0663903201 | O-RING | 1 | ||||
| 3315244881 | CHECK VALVE, complete | 0 | ||||
| 3315244881 | CHECK VALVE, complete | 1 | ||||
| 3315280800 | VALVE RUBBER | 1 | ||||
| - | CHECK VALVE | 1 | ||||
| 0686371805 | PLUG | 0 | ||||
| 0686371805 | PLUG | 1 | ||||
| 3315366000 | VALVE | 0 | ||||
| 3315366000 | VALVE | 1 | ||||
| 0663212000 | O-RING | 1 | ||||
| 0663212000 | O-RING | 0 | ||||
| 3115329002 | SEAL RING | 0 | ||||
| 3115329002 | SEAL RING | 1 | ||||
| 0663211400 | O-RING | 0 | ||||
| 0663211400 | O-RING | 1 | ||||
| 0101414000 | PIN | 1 | ||||
| 0101414000 | PIN | 0 | ||||
| 0686925030 | CAP | 0 | ||||
| 0686925030 | CAP | 2 | ||||
| 0580001476 | PIPE COUPLING | 2 | ||||
| 0580001476 | PIPE COUPLING | 0 | ||||
| 3315412300 | PLUG | 1 | ||||
| 3315412300 | PLUG | 0 | ||||
| 3315414000 | VALVE | 1 | ||||
| 3315414000 | VALVE | 0 | ||||
| 0663990049 | STIRCOMATIC | 0 | ||||
| 0663990049 | STIRCOMATIC | 1 | ||||
| 3315413900 | VALVE COVER | 0 | ||||
| 3315413900 | VALVE COVER | 1 | ||||
| 0686100009 | PLUG | 8 | ||||
| 0686100009 | PLUG | 0 | ||||
| 0686100009 | PLUG | 0 | ||||
| 0686100009 | PLUG | 8 | ||||
| 0686371801 | PLUG | 0 | ||||
| 0686371801 | PLUG | 4 | ||||
| 3315411320 | WIPER | 0 | ||||
| 3315411320 | WIPER | 1 | ||||
| 0665070174 | PISTON ROD SEAL | 0 | ||||
| 0665070174 | PISTON ROD SEAL | 2 | ||||
| 3315415800 | BASE PLATE | 1 | ||||
| 3315415800 | BASE PLATE | 0 | ||||
| 3315426602 | BOLT KIT | 0 | ||||
| 3315426602 | BOLT KIT | 1 | ||||
| 3315426600 | SCREW | 12 | ||||
| 0266113601 | NUT | 12 | ||||
| 3315409703 | RESTRICTOR, complete | 0 | ||||
| 3315409703 | RESTRICTOR, complete | 1 | ||||
| - | RESTRICTOR PLUG | 1 | ||||
| - | 1 | |||||
| 0108169129 | SPRING PIN, option | 0 | ||||
| 0108169129 | SPRING PIN, option | 1 | For hot enviroment only. No need to use Pos.8 | |||
| - | LINER | 0 | ||||
| - | LINER | 1 | ||||
| 3315411810 | LOCKING PIN, option | 0 | ||||
| 3315411810 | LOCKING PIN, option | 1 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 0 | ||||
| 3315439101 | HATCON LABEL | 1 | ||||
| 3315439101 | HATCON LABEL | 0 |
