Base plate SB 1102
SB 1102 s/n BES059443 -
Base plate SB 1102
SB 1102 BES059443- PDF
Spare Parts
Base plate

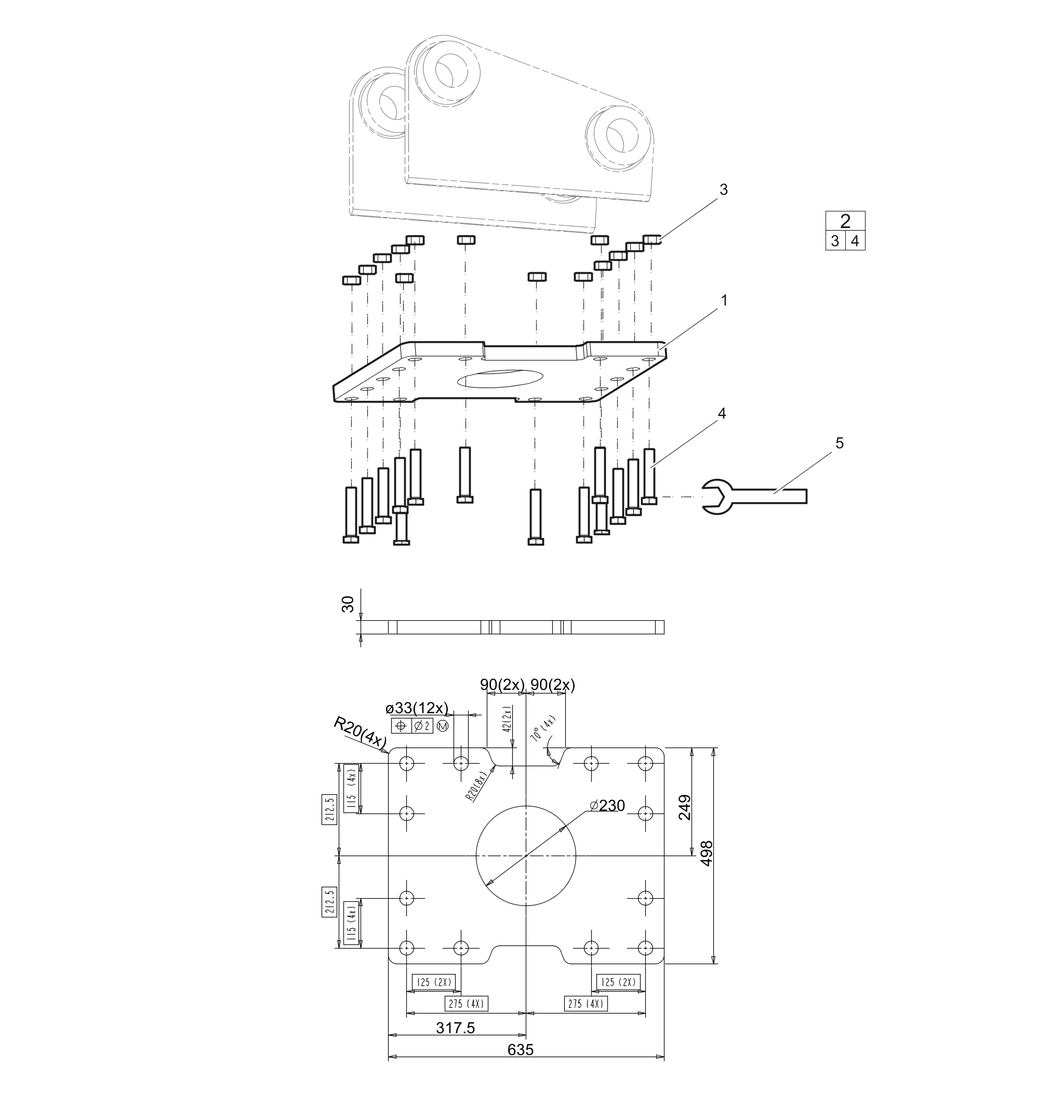

Illustration
#
Part number
Name
QTY
Remarks
Information
1
3315415800
BASE PLATE
1
EN10025-S355 J2G3
2
3315426602
BOLT KIT
1
3
0266113601
NUT
12
4
3315426600
SCREW
12
5
3360437943
Open end spanner (46/50 mm)
1
