Mechanical
Spare Parts

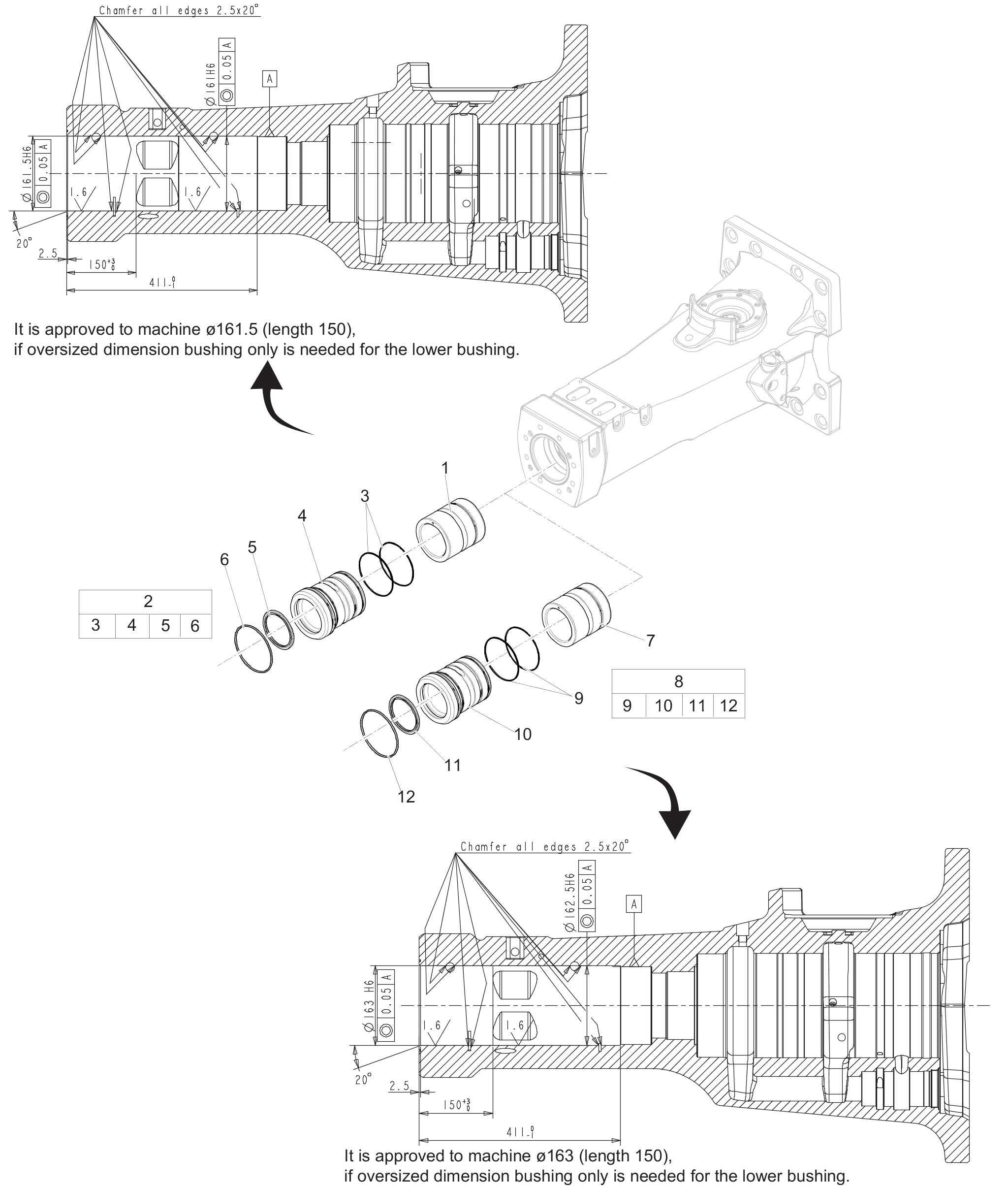

Optional parts - Bushing oversize, complete
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | UPPER WEAR BUSH, ø 161 mm (ø 6.34 in.) | 0 | ||||
| - | UPPER WEAR BUSH, ø 161 mm (ø 6.34 in.) | 1 | ||||
| - | LOWER WEAR BUSH, complete | 0 | ||||
| - | LOWER WEAR BUSH, complete | 1 | ||||
| 0663212001 | O-RING | 2 | ||||
| 0663212001 | O-RING | 2 | ||||
| - | LOWER WEAR BUSH, ø 161.5 mm (ø 6.34 in.) | 1 | ||||
| 3315412200 | SCRAPER RING | 1 | ||||
| 3315412200 | SCRAPER RING | 1 | ||||
| 0663212002 | O-RING | 1 | ||||
| 0663212002 | O-RING | 1 | ||||
| - | UPPER WEAR BUSH, ø 162.5 mm (ø 6.40 in.) | 0 | ||||
| - | UPPER WEAR BUSH, ø 162.5 mm (ø 6.40 in.) | 1 | ||||
| - | LOWER WEAR BUSH, complete | 0 | ||||
| - | LOWER WEAR BUSH, complete | 1 | ||||
| - | BREAKER BODY | 1 |
