Mechanical
Spare Parts

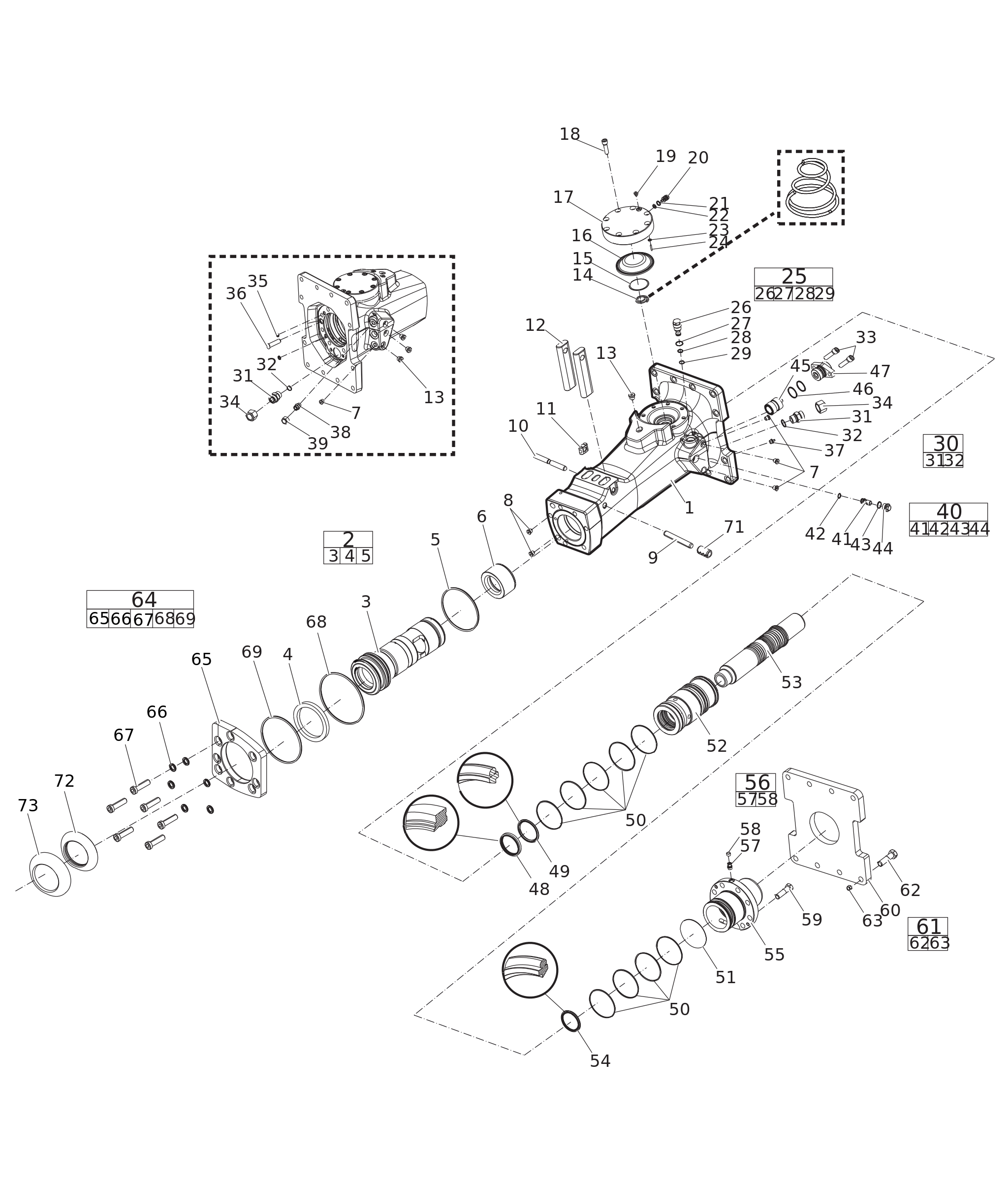

Spare part list
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | BREAKER BODY | 1 | ||||
| - | BREAKER BODY | 1 | ||||
| 3315434260 | BUSHING, complete | 1 | ||||
| - | BUSHING | 1 | ||||
| 3315325000 | SCRAPER RING | 1 | ||||
| 0663210617 | O-RING | 1 | ||||
| 3315301400 | STOP RING | 1 | ||||
| 0686644207 | PLUG | 4 | ||||
| 3315395200 | WATER NOSSLE | 2 | ||||
| 3315434900 | BUSHING PIN | 1 | ||||
| 3315434900 | BUSHING PIN | 1 | ||||
| 3315203110 | LOCK PIN | 1 | ||||
| 3315141900 | LOCK BUFFER | 1 | ||||
| 3315203010 | RETAINER BAR | 2 | ||||
| 0686371801 | PLUG | 4 | ||||
| 3315303500 | COIL SPRING | 1 | ||||
| 3315400700 | DIAPHRAGM SUPPORT | 1 | ||||
| 3315235000 | DIAPHRAGM | 1 | ||||
| 3315348700 | ACCUMULAT.HOUSE | 1 | ||||
| 0211196534 | HEX SOCK. SCREW | 8 | ||||
| 0686371805 | PLUG | 1 | ||||
| 3315366000 | VALVE | 1 | ||||
| 0663212000 | O-RING | 1 | ||||
| 3115329002 | SEAL RING | 1 | ||||
| 0663211400 | O-RING | 1 | ||||
| 0101414000 | PIN | 1 | ||||
| 3315365800 | PRESSURE RELIEF VALVE, complete | 1 | CAS No. see chapter "Environmental Product Compliance - REACH Declaration" | |||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| 0663212141 | O-RING | 1 | ||||
| 0663210421 | O-RING | 1 | ||||
| 0661200401 | BACK-UP RING | 1 | ||||
| 0580001845 | NIPPLE, complete | 1 | ||||
| - | NIPPLE | 1 | ||||
| 0664000004 | SEAL RING | 1 | ||||
| 0211110349 | SCREW, M14 x 65 mm (2.56 in.) | 2 | ||||
| 3361353486 | COVER | 2 | ||||
| 0665090014 | SEAL RING | 2 | ||||
| 3315336700 | PLUG | 1 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| 3176634800 | NIPPLE | 1 | ||||
| 3176542900 | CAP | 1 | ||||
| 3315369467 | RESTRICTOR, complete | 1 | ||||
| - | RESTRICTOR, Ø 6.7 mm (Ø 0.26 in.) | 1 | ||||
| 0663210421 | O-RING | 1 | ||||
| 0663212141 | O-RING | 1 | ||||
| 3315369200 | RESTRICTOR PLUG | 1 | ||||
| 3315277600 | CONTROL VALVE | 1 | ||||
| 0663211444 | O-RING | 2 | ||||
| 3315352013 | VALVE COVER | 1 | ||||
| 0665909957 | WIPER | 1 | ||||
| 0665070137 | PISTON ROD SEAL | 1 | ||||
| 0663990031 | SEAL RING | 9 | ||||
| 0663210669 | O-RING | 1 | ||||
| 3315301700 | LINER | 1 | ||||
| 3315302110 | PISTON | 1 | ||||
| 0665070146 | PISTON ROD SEAL | 1 | ||||
| 3315302000 | BACK HEAD | 1 | ||||
| 3315244881 | CHECK VALVE, complete | 1 | ||||
| - | CHECK VALVE | 1 | ||||
| 3315280800 | VALVE RUBBER | 1 | ||||
| 3315431201 | HEXAGON BOLT | 8 | ||||
| 3315356600 | BASE PLATE | 1 | ||||
| 3315365360 | SCREW SET | 1 | ||||
| - | SCREW | 8 | ||||
| - | NUT, M16 | 8 | ||||
| 3382070107 | WEAR PLATE, complete | 1 | ||||
| - | WEAR PLATE | 1 | ||||
| 0333520027 | LOCK WASHER | 6 | ||||
| 0215001042 | HEXAGON SOCKET SCREW | 6 | ||||
| 0663210785 | O-RING | 1 | ||||
| 0663210713 | O-RING | 1 | ||||
| 0108110322 | SPRING PIN | 1 | ||||
| 3315239700 | DUST COVER | 1 | ||||
| 3315264100 | FRONT SHIELD | 1 |
