Service, repair and wear part kits
Spare Parts

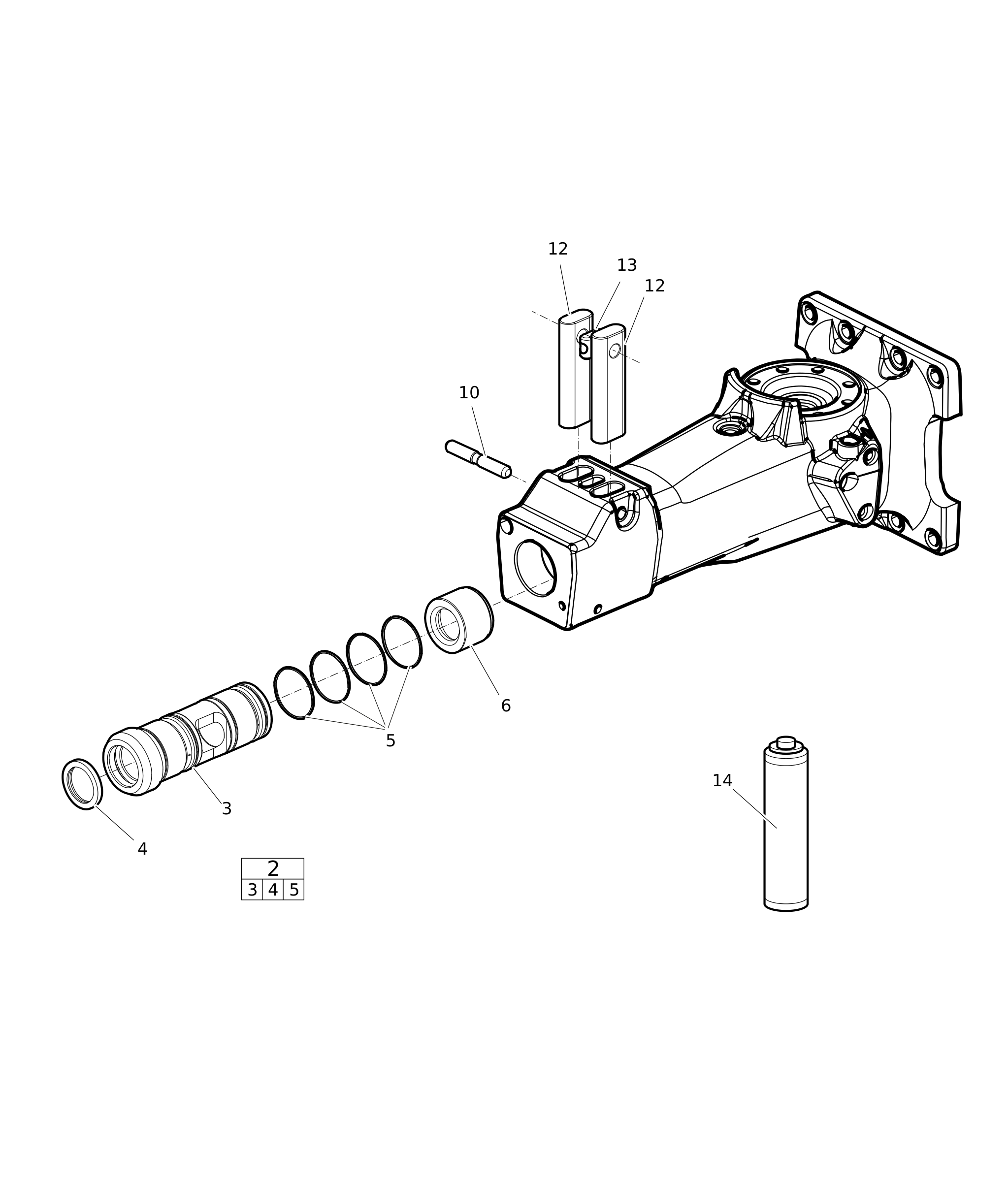

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3382070206 | LOWER HAMMER PART KIT | 0 | ||||
| 3382070206 | LOWER HAMMER PART KIT | 1 | ||||
| 3315353980 | BUSHING STANDARD, complete | 1 | ||||
| - | BUSHING | 1 | ||||
| 3315356400 | SCRAPER RING | 1 | ||||
| 0663210289 | O-RING | 4 | ||||
| 3315291800 | STOP RING | 1 | ||||
| 3315293000 | LOCK PIN | 1 | ||||
| 3315134900 | RETAINER BAR | 2 | ||||
| 3315141900 | LOCK BUFFER | 1 | ||||
| - | BIO CHISEL PASTE CARTRIDGE, 1 x 400 g (0.88 lbs) | 1 |
