Service, repair and wear part kits
Spare Parts

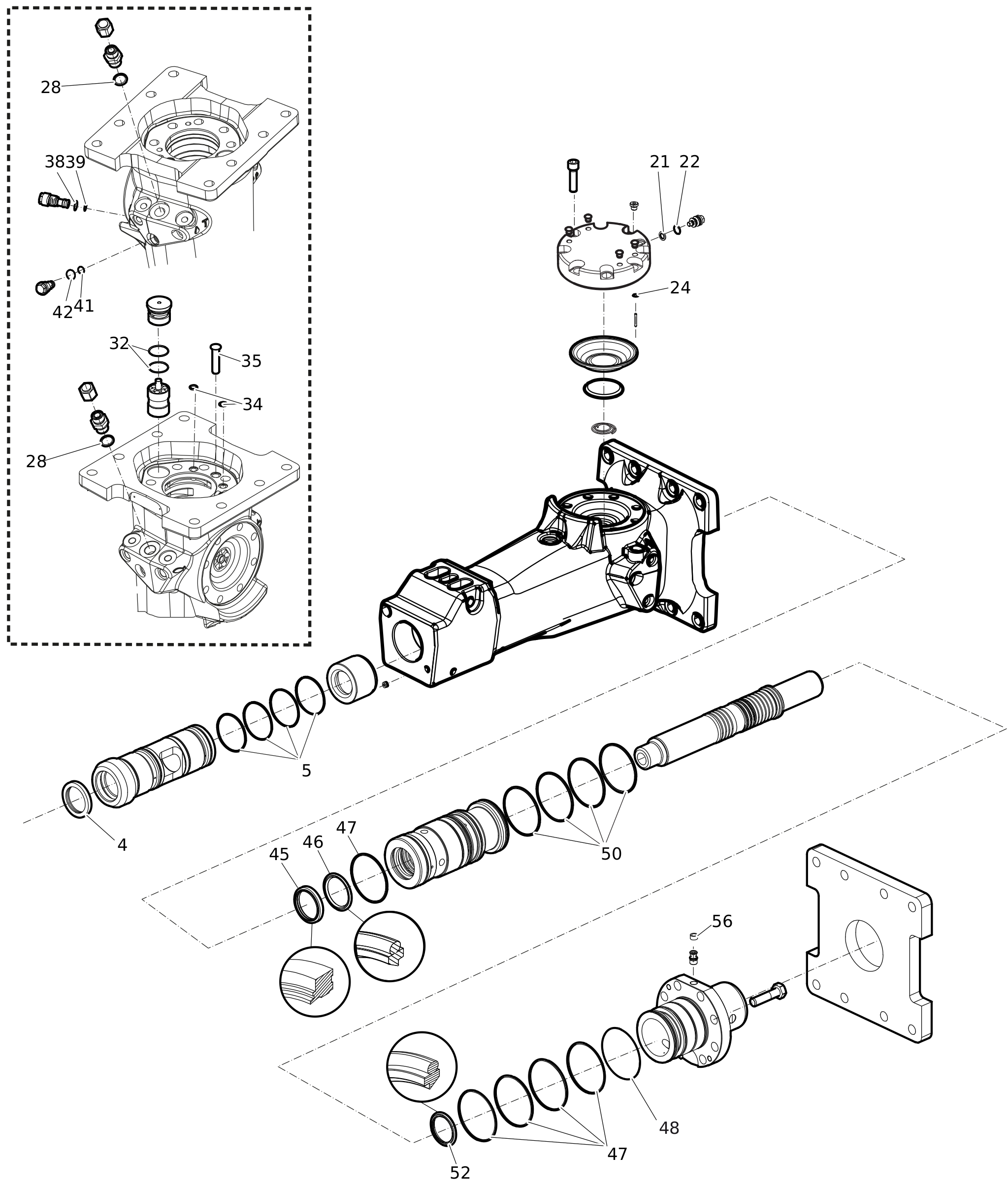

Seal kit
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3315290590 | SEAL KIT | 1 | ||||
| 3315356400 | SCRAPER RING | 1 | ||||
| 0663210289 | O-RING | 4 | ||||
| 3115329002 | SEAL RING | 1 | ||||
| 0663212000 | O-RING | 1 | ||||
| 0663211400 | O-RING | 1 | ||||
| 0664000003 | SEAL RING | 1 | ||||
| 0663211490 | O-RING | 2 | ||||
| 0665090014 | SEAL RING | 2 | ||||
| 3315305000 | PLUG | 1 | ||||
| 0663903201 | O-RING | 1 | ||||
| 0663903201 | O-RING | 1 | ||||
| - | O-RING | 1 | ||||
| - | O-RING | 1 | ||||
| 0665909954 | WIPER | 1 | ||||
| 0665070131 | PISTON ROD SEAL | 1 | ||||
| 0663211456 | O-RING | 5 | ||||
| 0663210631 | O-RING | 1 | ||||
| 0663210053 | O-RING | 4 | ||||
| 0665070132 | PISTON ROD SEAL | 1 | ||||
| 3315280800 | VALVE RUBBER | 1 |
