Service, repair and wear part kits
Spare Parts

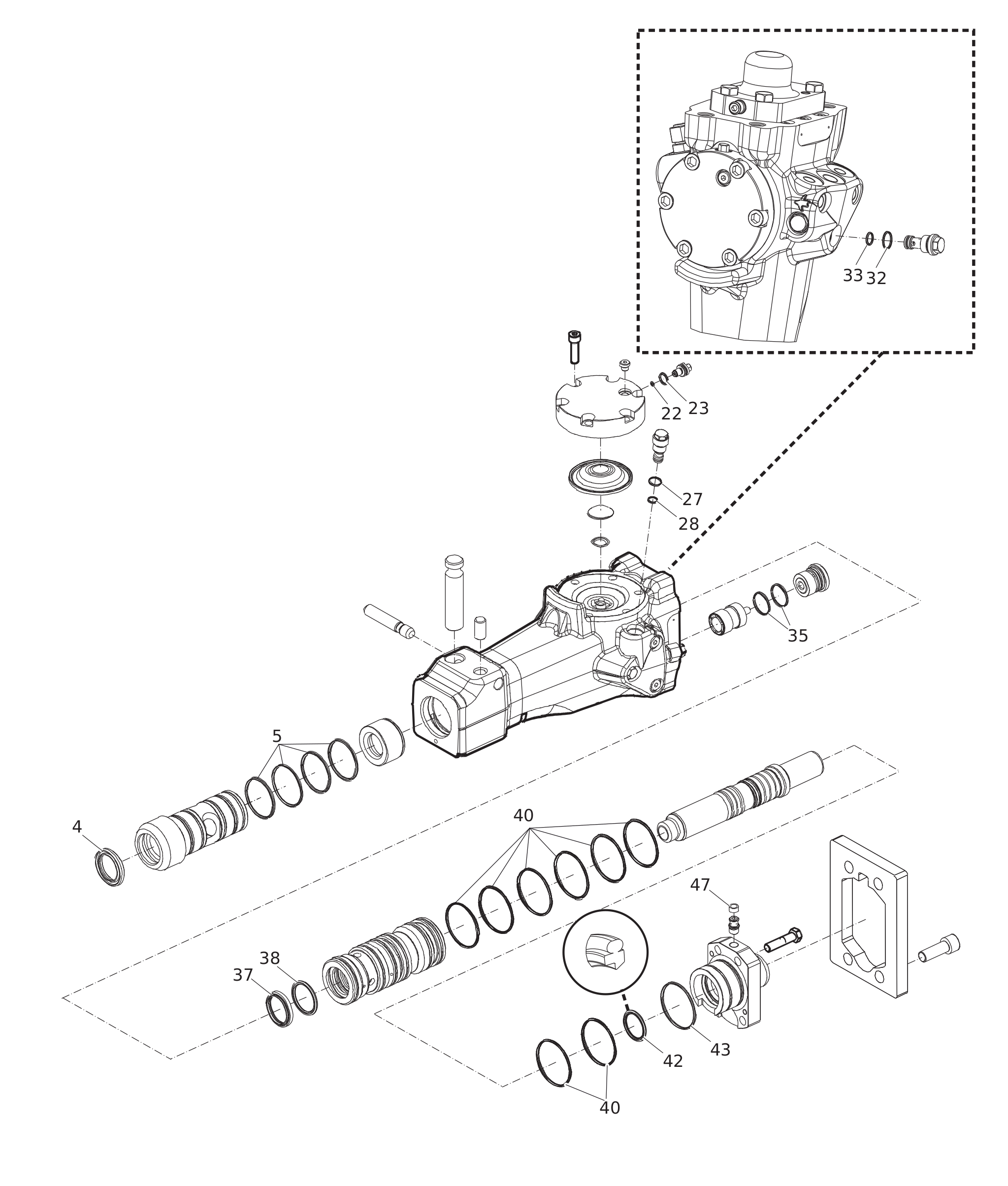

Seal kit
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | SEAL KIT | 1 | ||||
| 3315334200 | SCRAPER RING | 1 | ||||
| 0663210800 | O-RING | 4 | ||||
| 0661100048 | SEAL WASHER | 1 | ||||
| 0663212000 | O-RING | 1 | ||||
| 0663903201 | O-RING | 1 | ||||
| 0663903201 | O-RING | 1 | ||||
| - | O-RING | 1 | ||||
| - | O-RING | 1 | ||||
| 0663211489 | O-RING | 2 | ||||
| 0665909963 | WIPER | 1 | ||||
| 0665070142 | PISTON ROD SEAL | 1 | ||||
| 0663211364 | O-RING | 9 | ||||
| 0665070141 | PISTON ROD SEAL | 1 | ||||
| 0663210653 | O-RING | 1 | ||||
| 3315280800 | VALVE RUBBER | 1 | ||||
| 3315295000 | BACK-UP RING | 1 |
