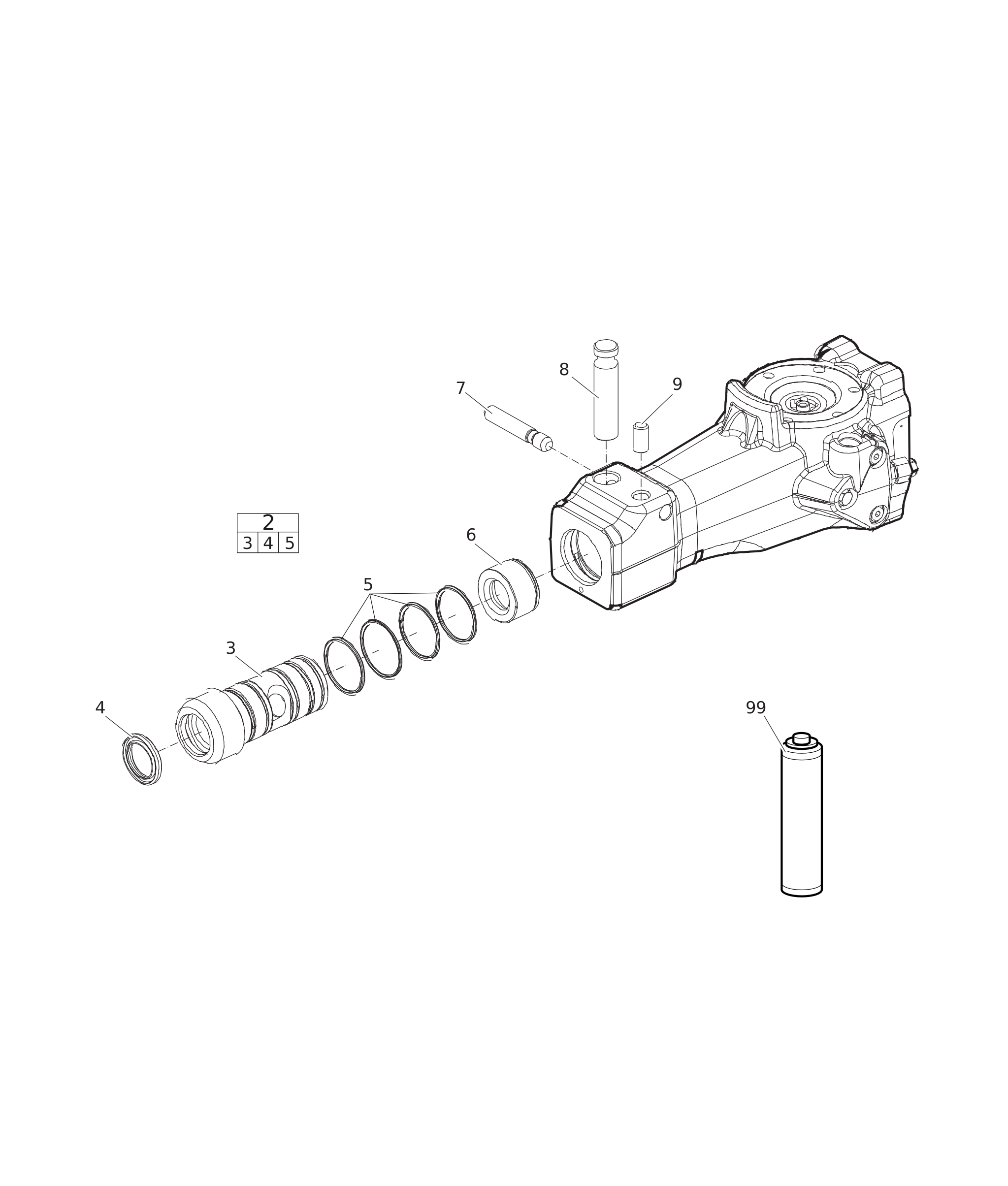

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3315352105 | LOWER HAMMER PART KIT | 1 | ||||
| 3315333780 | BUSHING, complete | 1 | ||||
| - | BUSHING | 1 | ||||
| - | BUSHING | 1 | ||||
| 3315334200 | SCRAPER RING | 1 | ||||
| 0663613501 | O-RING | 4 | ||||
| 3315334500 | STOP RING | 1 | ||||
| 3315333920 | Lock pin | 1 | ||||
| 3315346500 | TOOL RETAINER | 1 | ||||
| 3315304600 | LOCK BUFFER | 1 | ||||
| - | BIO CHISEL PASTE CARTRIDGE, 1 x 400 g (0.88 lbs) | 1 |
