Spare Parts

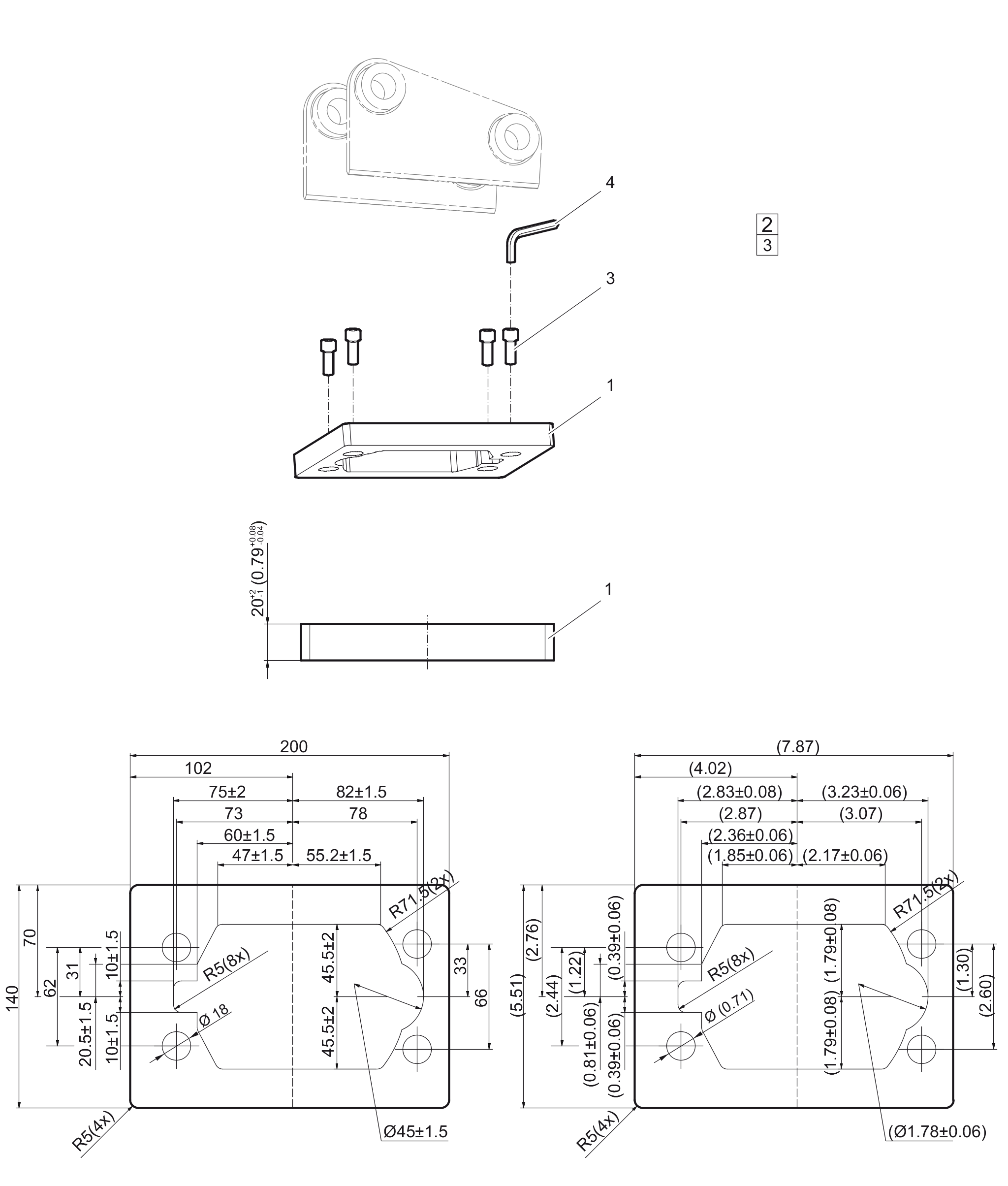

Base plate
Illustration
#
Part number
Name
QTY
Remarks
Information
1
3315347200
BASE PLATE
1
material: EN10025-S355 J2G3
2(3)
3315333592
BOLT KIT
1
3
0211147800
SCREW
4
4
3360204963
ALLEN KEY (14MM)
1
