Mechanical
Spare Parts

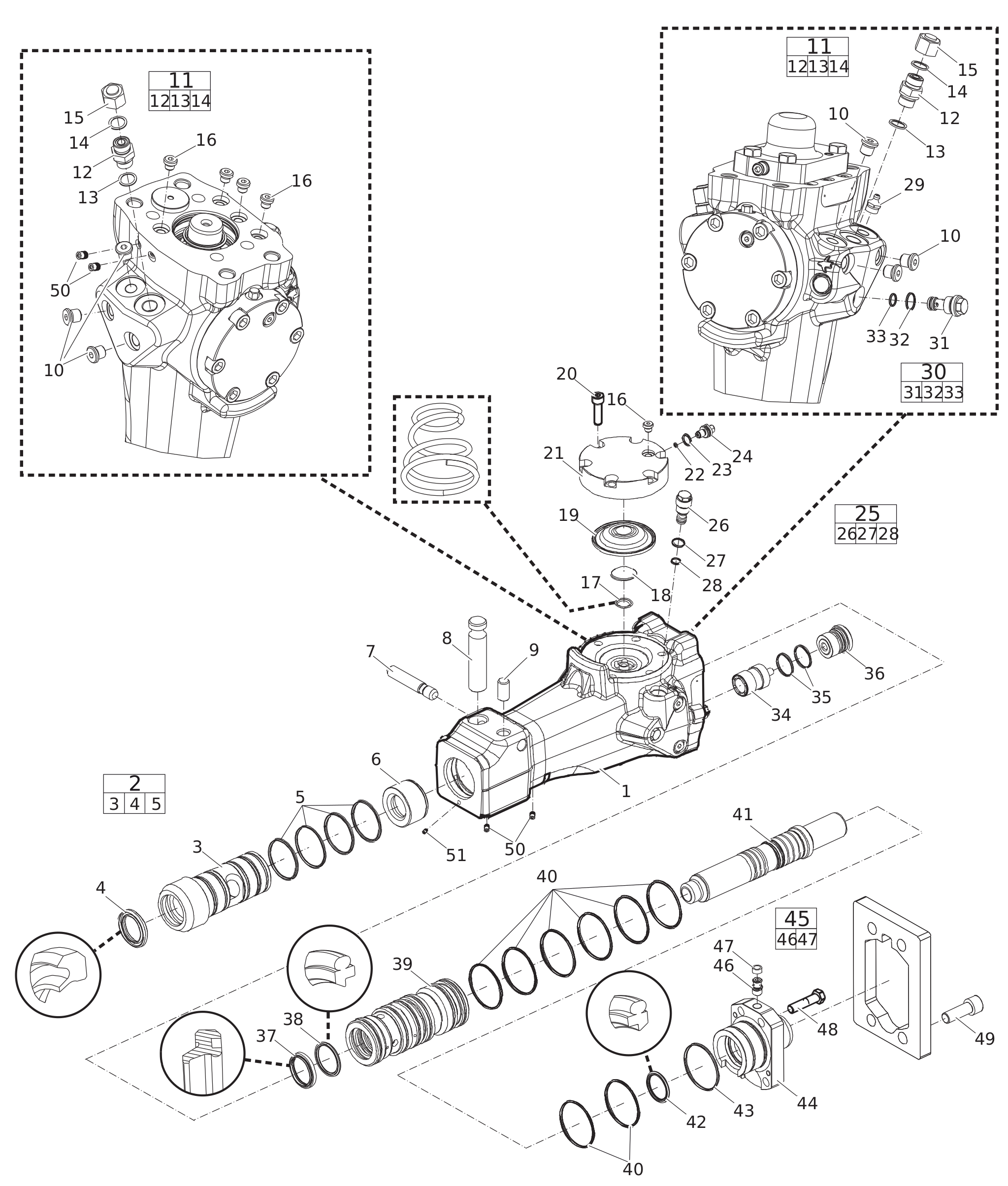

Hydraulic breaker
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | HAMMER BODY | 1 | ||||
| - | HAMMER BODY | 1 | ||||
| - | HAMMER BODY | 1 | ||||
| - | HAMMER BODY | 1 | ||||
| 3315333780 | BUSHING, complete | 1 | ||||
| - | BUSHING, Ø 60 mm (Ø 2.36 in.) | 1 | ||||
| - | BUSHING, Ø 60 mm (Ø 2.36 in.) | 1 | ||||
| - | BUSHING, Ø 60 mm (Ø 2.36 in.) | 1 | ||||
| 3315334200 | SCRAPER RING | 1 | ||||
| 0663210800 | O-RING | 4 | ||||
| 3315334500 | STOP RING | 1 | ||||
| 3315333920 | Lock pin | 1 | ||||
| 3315346500 | TOOL RETAINER | 1 | ||||
| 3315304600 | LOCK BUFFER | 1 | ||||
| 0686644207 | PLUG | 6 | ||||
| 0570700002 | NIPPLE, complete | 2 | ||||
| - | FITTING | 1 | ||||
| - | FITTING | 1 | ||||
| - | FITTING | 1 | ||||
| 0664000002 | SEAL RING | 1 | ||||
| 0663905001 | O-RING | 1 | ||||
| 0570700009 | CAP | 2 | ||||
| 0686371805 | PLUG | 5 | ||||
| 3315359610 | COIL SPRING | 1 | ||||
| 3315359520 | DIAPHRAGM SUPPORT | 1 | ||||
| 3315346200 | DIAPHRAGM | 1 | ||||
| 0211196548 | ALLEN SCREW | 6 | ||||
| 3315334600 | ACCUMULATOR COVER | 1 | ||||
| 0661100048 | SEAL WASHER | 1 | ||||
| 0663212000 | O-RING | 1 | ||||
| 3315346400 | CHARGE VALVE | 1 | ||||
| 3315335000 | PRESSURE RELIEF VALVE, complete | 1 | ||||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| 0663903201 | O-RING | 1 | ||||
| 0663903201 | O-RING | 1 | ||||
| - | O-RING | 1 | ||||
| - | O-RING | 1 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| 3315369537 | RESTRICTOR, complete | 1 | For more restrictors, see section "Restrictor, complete" | |||
| - | RESTRICTION | 1 | ||||
| - | RESTRICTION | 1 | ||||
| - | RESTRICTION | 1 | ||||
| 3315444256 | CONTROL VALVE | 1 | ||||
| 0663211489 | O-RING | 2 | ||||
| 3315365000 | VALVE COVER | 1 | ||||
| 0665909963 | WIPER | 1 | ||||
| 0665070142 | PISTON ROD SEAL | 1 | ||||
| 3315333800 | LINER | 1 | ||||
| 0663211364 | O-RING | 8 | ||||
| 3315334000 | PISTON | 1 | ||||
| 0665070141 | PISTON ROD SEAL | 1 | ||||
| 0663210653 | O-RING | 1 | ||||
| 3315333600 | BACK HEAD | 1 | ||||
| 3315244881 | CHECK VALVE, complete | 1 | ||||
| - | CHECK VALVE | 1 | ||||
| - | CHECK VALVE | 1 | ||||
| - | CHECK VALVE | 1 | ||||
| 3315280800 | VALVE RUBBER | 1 | ||||
| 0147140503 | SCREW, HEX HEAD | 4 | ||||
| 3315333592 | BOLT KIT | 1 | ||||
| 0686100016 | PLUG | 3 | ||||
| 5750533851 | PLUG | 1 |
