Tightening torque

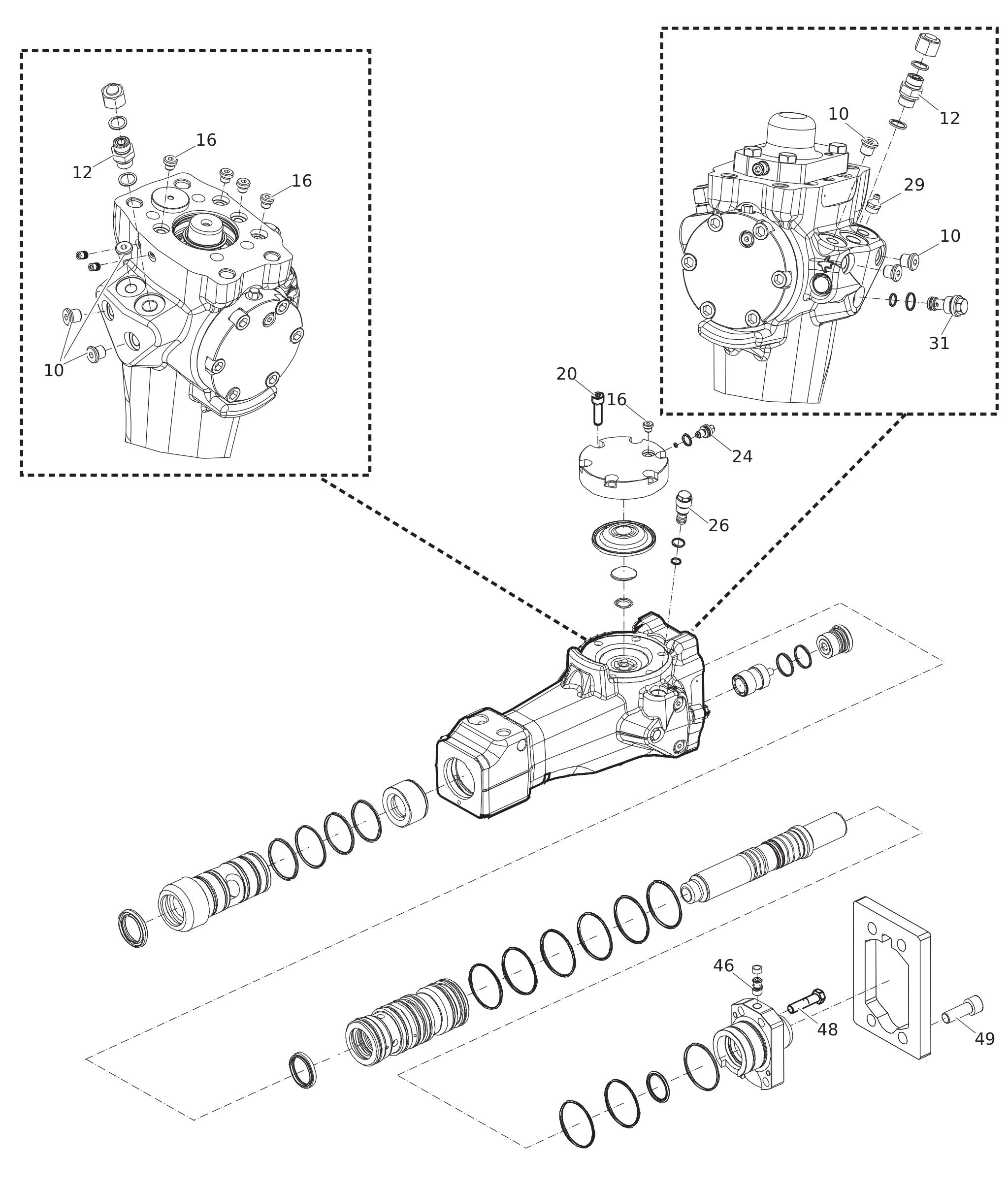

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | PLUG - 30 Nm (22 ft lbf) | 1 | ||||
| - | NIPPLE - 80 Nm (59 ft lbf) | 1 | ||||
| - | PLUG - 20 Nm (15 ft lbf) | 1 | ||||
| - | HEXAGON SOCKET SCREW - 75 Nm (55 ft lbf) | 1 | ||||
| - | VALVE - 27 Nm (20 ft lbf) | 1 | ||||
| - | PRESSURE RELIEF VALVE - 60 Nm (44 ft lbf) | 1 | ||||
| - | GREASE NIPPLE - 30 Nm (22 ft lbf) | 1 | ||||
| - | RESTRICTOR - 80 Nm (59 ft lbf) | 1 | ||||
| - | CHECK VALVE - 30 Nm (22 ft lbf) | 1 | ||||
| - | HEXAGON HEAD SCREW - 75 Nm (55 ft lbf) | 1 | ||||
| - | SET OF FOUR HEXAGON SOCKET SCREW - 290 Nm (214 ft lbf) | 1 |
