Weight (standard equipped without drill rod)

3 250 kg (7.165 Ibs)

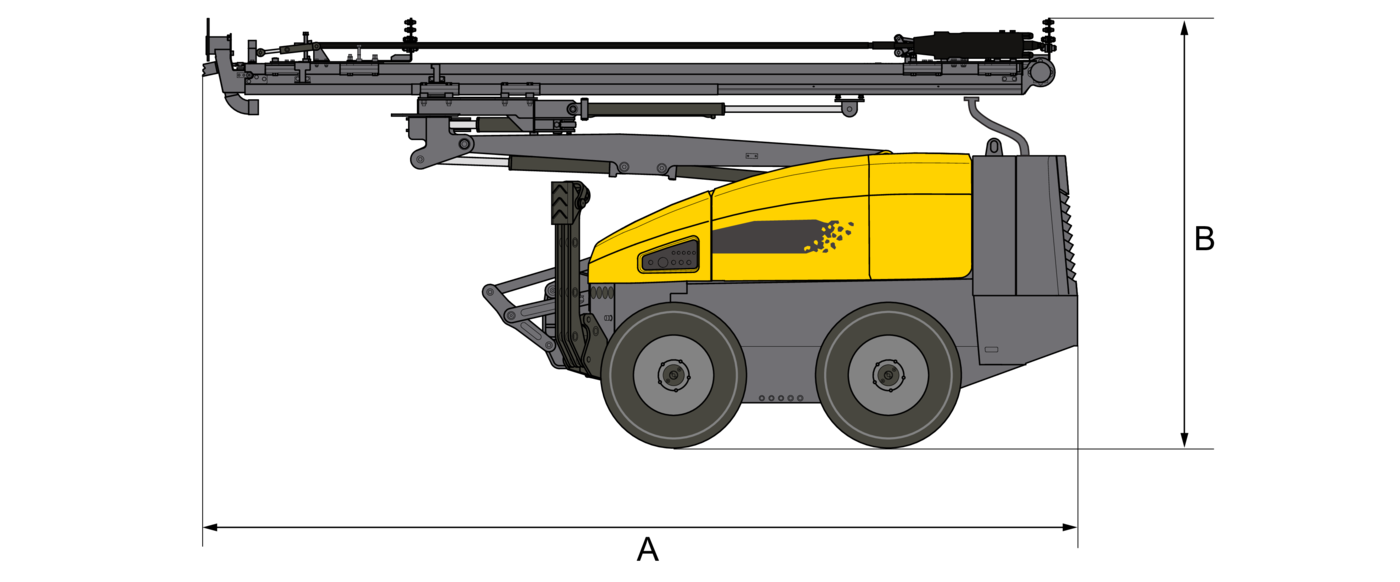

5,0 m (16 ft 5 inches)

2,4 m (7 ft 9 inches)

1.8 m (5 ft 10 inches)

Voltage

12 V

Batteries

Voltage

2 x 12 V / 70 Ah

Work lights

Voltage

12 V LED

Alternator

Voltage

12 V / 85 Ah

Compressor: C 55

Max. air pressure

8.5 bar

Free air delivery at 7 bar

22 l/s

Working pressure

7.0 bar

Hydraulic oil cooler for maximum ambient temperature

40 °C (104 °F)

Diesel engine, CAT 2.2 TA Stage V / Tier 4F

power output at 2800 rpm

55 kW

Temperature range in operation

-25º to +40ºC (-13 °F to +122 °F)

Tramming speed, max.

3,0 km/h (1.86 mph)

Traction force (low/high gear)

23 kN

Ground pressure, average

0,082 N/mm²

Ground clearance

235 mm (9.25 in)

Max. hydraulic pressure

230 bar (9.06 in)

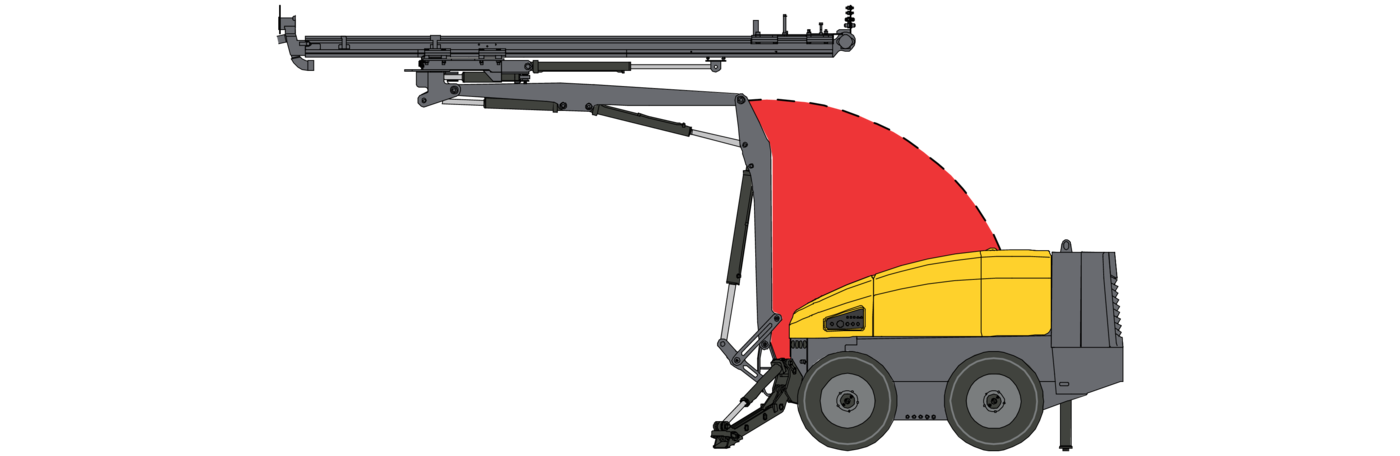

Inclination angles for drill rig when drilling:

longitudinally, max. (downward/ upward)

20°/20°

lateral (left/right).

8°/11°

laterally, (left/right), in extreme positions.

3°/ 7°

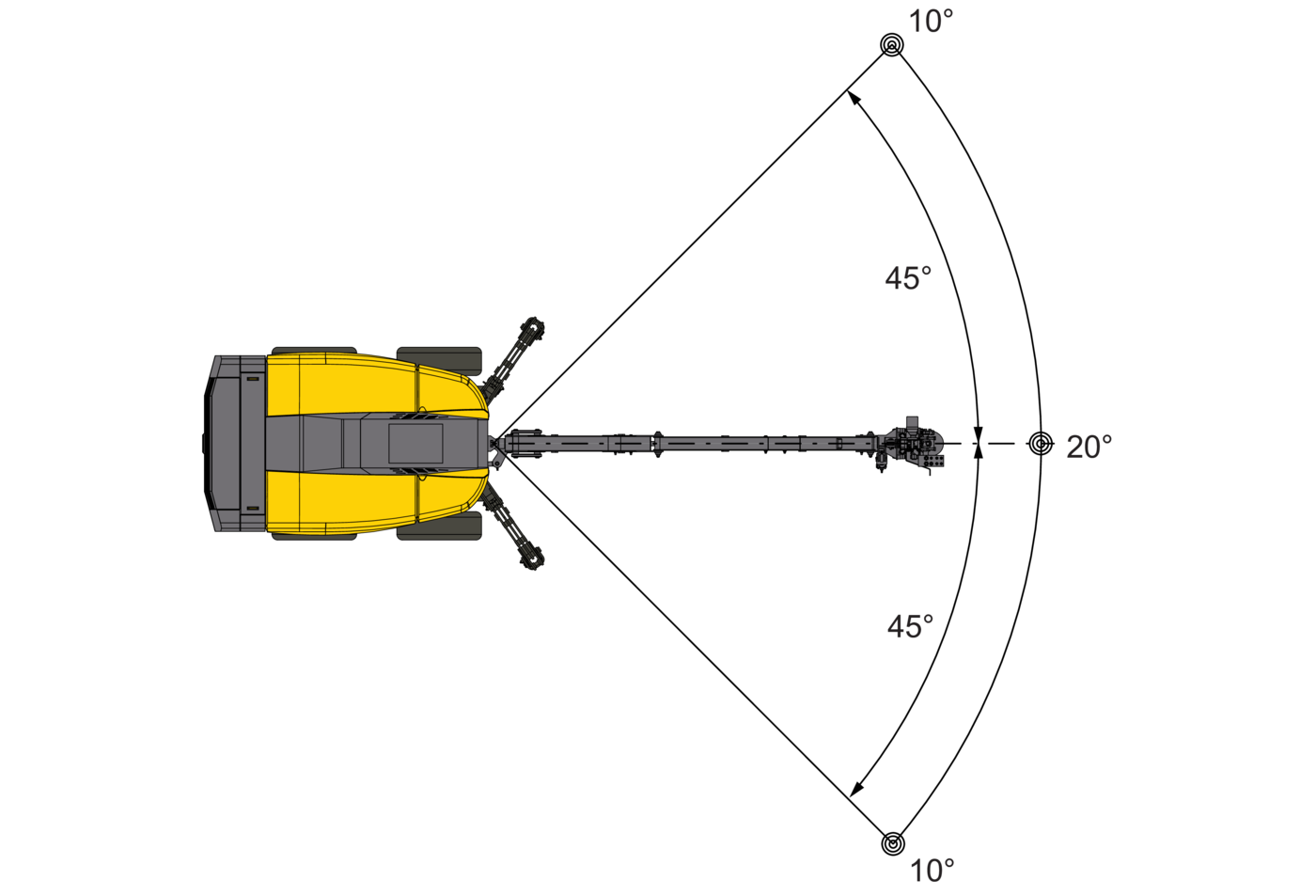

Tilt angles - tramming (in direction):

downward/upward, max. without winch

20°/20°

laterally, max. (Left/Right)

20°/20°

downward/upward, with winch

30°

Hydraulic Oil Reservoir

70/80 l (18.5/21.1 gal)

Hydraulic system, total

120-130 l (31.7/34.3 gal)

Fuel tank

67 l (17.7 gal)

Traction gear

0,8 l (0.2 gal)

Compressor oil

8 l (2.1 gal)

Lubricating oil tank ECL

5 l (1.3 gal)

Diesel engine oil

8 l (2.1 gal)

Engine cooling system

15 l (4.0 gal)

Fire extinguisher

A-B-C powder

x kg
