Mechanical
Spare Parts

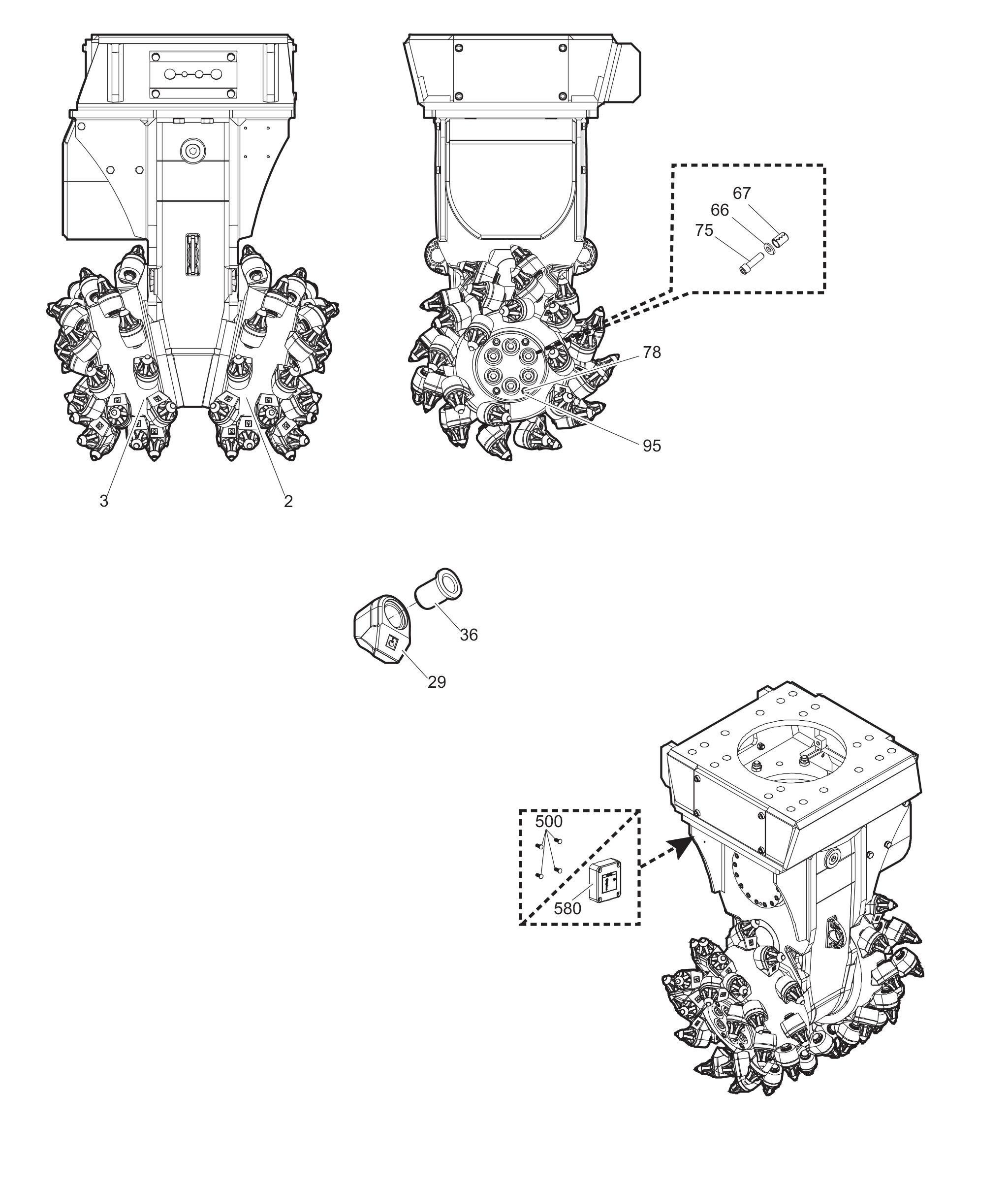

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3311005977 | Cutter drum (left) | 1 | ||||
| 3311005979 | Cutter drum (right/motor) | 1 | ||||
| 3311000792 | Pick box | 60 | ||||
| 3311000801 | Wear sleeve | 60 | ||||
| 3311006116 | Washer | 12 | ||||
| 3311006117 | Clamping sleeve | 12 | ||||
| 3311006121 | Allen screw | 12 | ||||
| 3311002937 | Allen screw | 8 | ||||
| 3311000533 | Pair of lock washers | 6 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | ||||
| 3315439180 | HATCON | 1 | only for drum cutters with HATCON / see separate chapter |
