Mechanical
Spare Parts

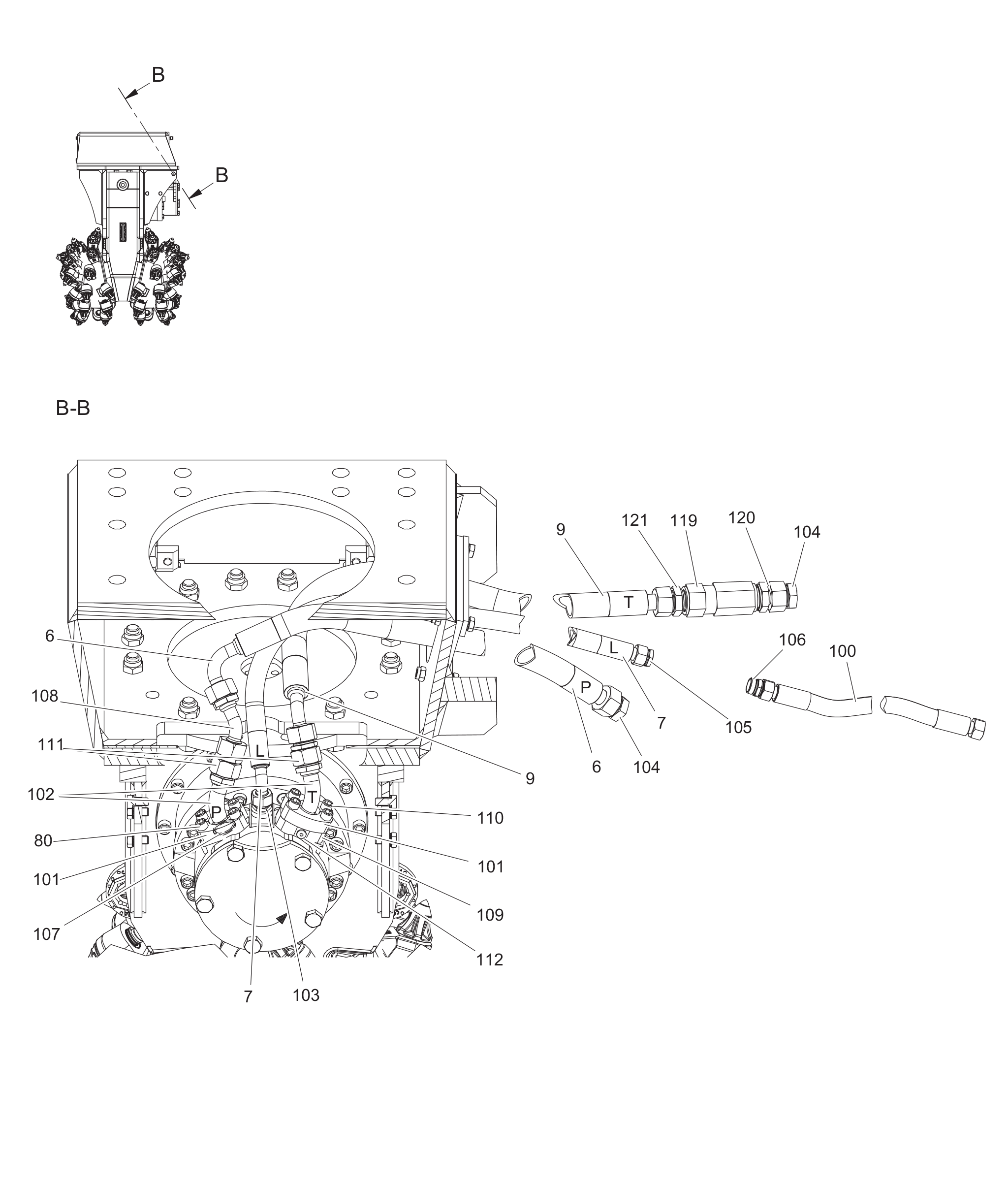

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3311006140 | Hose kit metric, 2.5 m (Standard) | 1 | ||||
| 3311005779 | Hydraulic hose | 1 | ||||
| 3311005779 | Hydraulic hose | 1 | ||||
| 3311000244 | Hydraulic hose | 1 | ||||
| 3311000244 | Hydraulic hose | 1 | ||||
| 3311000165 | Hydraulic hose | 1 | ||||
| 3311000165 | Hydraulic hose | 1 | ||||
| 3311000536 | Allen screw | 4 | ||||
| 3311000536 | Allen screw | 4 | ||||
| 3311001582 | Hydraulic hose | 1 | ||||
| 3311001582 | Hydraulic hose | 1 | ||||
| 3311000170 | Flange | 4 | ||||
| 3311000170 | Flange | 4 | ||||
| 3311005778 | Fitting | 2 | ||||
| 3311005778 | Fitting | 2 | ||||
| 3311000099 | Fitting | 1 | ||||
| 3311000099 | Fitting | 1 | ||||
| 3311000118 | Plug | 2 | ||||
| 3311000118 | Plug | 2 | ||||
| 3311000119 | Plug | 1 | ||||
| 3311000119 | Plug | 1 | ||||
| 3311000120 | Fitting | 1 | ||||
| 3311000120 | Fitting | 1 | ||||
| 3311000556 | O-ring | 3 | ||||
| 3311000556 | O-ring | 3 | ||||
| 3311002886 | Fitting | 1 | ||||
| 3311002886 | Fitting | 1 | ||||
| 3311001231 | Flange | 1 | ||||
| 3311001231 | Flange | 1 | ||||
| 3311000552 | Allen screw | 4 | ||||
| 3311000552 | Allen screw | 4 | ||||
| 3311002878 | Fitting | 2 | ||||
| 3311002878 | Fitting | 2 | ||||
| 3311002599 | Threaded plug | 1 | ||||
| 3311002599 | Threaded plug | 1 | ||||
| 3311002965 | Check valve | 1 | ||||
| 3311002965 | Check valve | 1 | ||||
| 3311000085 | Fitting | 1 | ||||
| 3311000085 | Fitting | 1 | ||||
| 3311000086 | Fitting | 1 | ||||
| 3311000086 | Fitting | 1 | ||||
| 3311006146 | Hose kit JIC, 2.5 m (Optional) | 1 | ||||
| 3311006145 | Hydraulic hose | 1 | ||||
| 3311006145 | Hydraulic hose | 1 | ||||
| 3311002208 | Hydraulic hose | 1 | ||||
| 3311002208 | Hydraulic hose | 1 | ||||
| 3311005878 | Hydraulic hose | 1 | ||||
| 3311005878 | Hydraulic hose | 1 | ||||
| 3311000536 | Allen screw | 4 | ||||
| 3311000536 | Allen screw | 4 | ||||
| 3311002209 | Hydraulic hose | 1 | ||||
| 3311002209 | Hydraulic hose | 1 | ||||
| 3311000170 | Flange | 4 | ||||
| 3311000170 | Flange | 4 | ||||
| 3311005778 | Fitting | 2 | ||||
| 3311005778 | Fitting | 2 | ||||
| 3311002210 | Fitting | 1 | ||||
| 3311002210 | Fitting | 1 | ||||
| 3311002745 | Plug | 2 | ||||
| 3311002745 | Plug | 2 | ||||
| 3311002747 | Plug | 1 | ||||
| 3311002747 | Plug | 1 | ||||
| 3311002211 | Fitting | 1 | ||||
| 3311002211 | Fitting | 1 | ||||
| 3311000556 | O-ring | 3 | ||||
| 3311000556 | O-ring | 3 | ||||
| 3311002886 | Fitting | 1 | ||||
| 3311002886 | Fitting | 1 | ||||
| 3311001231 | Flange | 1 | ||||
| 3311001231 | Flange | 1 | ||||
| 3311000552 | Allen screw | 4 | ||||
| 3311000552 | Allen screw | 4 | ||||
| 3311002878 | Fitting | 2 | ||||
| 3311002878 | Fitting | 2 | ||||
| 3311002599 | Threaded plug | 1 | ||||
| 3311002599 | Threaded plug | 1 | ||||
| 3311002965 | Check valve | 1 | ||||
| 3311002965 | Check valve | 1 | ||||
| 3311002744 | Fitting | 1 | ||||
| 3311002744 | Fitting | 1 | ||||
| 3311003016 | Fitting | 1 | ||||
| 3311003016 | Fitting | 1 |
