Mechanical

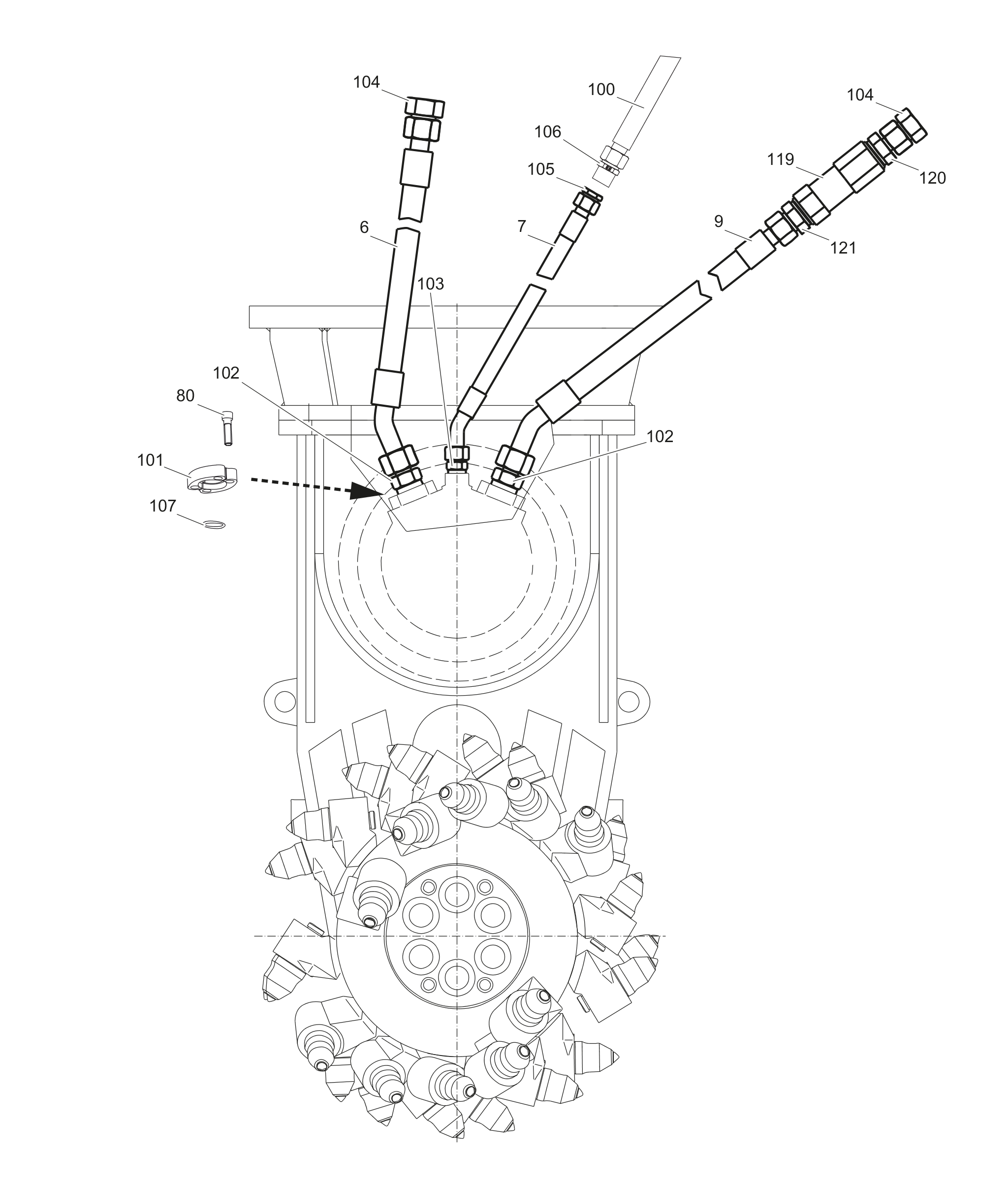

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3311001200 | Hose kit metric, 2.5 m (Standard) | 1 | ||||
| 3311000165 | Hydraulic hose | 1 | ||||
| 3311000165 | Hydraulic hose | 1 | ||||
| 3311000244 | Hydraulic hose | 1 | ||||
| 3311000536 | Allen screw | 8 | ||||
| 3311000536 | Allen screw | 8 | ||||
| 3311000536 | Allen screw | 8 | ||||
| 3311000536 | Allen screw | 8 | ||||
| 3311001582 | Hydraulic hose | 1 | ||||
| 3311001582 | Hydraulic hose | 1 | ||||
| 3311000168 | Flange | 2 | ||||
| 3311000168 | Flange | 2 | ||||
| 3311000086 | Fitting | 2 | ||||
| 3311000086 | Fitting | 1 | ||||
| 3311000086 | Fitting | 2 | ||||
| 3311000086 | Fitting | 1 | ||||
| 3311000099 | Fitting | 1 | ||||
| 3311000099 | Fitting | 1 | ||||
| 3311000099 | Fitting | 1 | ||||
| 3311000118 | Plug | 2 | ||||
| 3311000118 | Plug | 2 | ||||
| 3311000119 | Plug | 1 | ||||
| 3311000119 | Plug | 1 | ||||
| 3311000120 | Fitting | 1 | ||||
| 3311000120 | Fitting | 1 | ||||
| 3311000556 | O-ring | 2 | ||||
| 3311000556 | O-ring | 2 | ||||
| 3311000556 | O-ring | 2 | ||||
| 3311000556 | O-ring | 2 | ||||
| 3311002965 | Check valve | 1 | ||||
| 3311002965 | Check valve | 1 | ||||
| 3311002965 | Check valve | 1 | ||||
| 3311002965 | Check valve | 1 | ||||
| 3311000085 | Fitting | 1 | ||||
| 3311000085 | Fitting | 1 | ||||
| 3311004150 | Hose kit JIC, 2.5 m (Optional) | 1 | ||||
| 3311004131 | Hydraulic hose | 1 | ||||
| 3311002208 | Hydraulic hose | 1 | ||||
| 3311004151 | Hydraulic hose | 1 | ||||
| 3311002209 | Hydraulic hose | 1 | ||||
| 3311000170 | Flange | 4 | ||||
| 3311000170 | Flange | 4 | ||||
| 3311002210 | Fitting | 1 | ||||
| 3311002745 | Plug | 2 | ||||
| 3311002747 | Plug | 1 | ||||
| 3311002211 | Fitting | 1 | ||||
| 3311002744 | Fitting | 1 | ||||
| 3311003016 | Fitting | 1 | ||||
| 3311003887 | Hose kit metric, 3.3 m (Optional) | 1 | ||||
| 3311003136 | Hydraulic hose | 1 | ||||
| 3311003136 | Hydraulic hose | 1 | ||||
| 3311003137 | Hydraulic hose | 1 | ||||
| 3311004179 | Hose kit BSP, 3.3 m (Optional) | 1 | ||||
| 3311004145 | Hydraulic hose | 1 | ||||
| 3311004178 | Hydraulic hose | 1 | ||||
| 3311004146 | Hydraulic hose | 1 | ||||
| 3311004015 | Hydraulic hose | 1 | ||||
| 3311004016 | Plug | 2 | ||||
| 3311003877 | Plug | 1 | ||||
| 3311004017 | Fitting | 1 | ||||
| 3311004019 | Fitting | 1 | ||||
| 3311004020 | Fitting | 2 |
