Mechanical

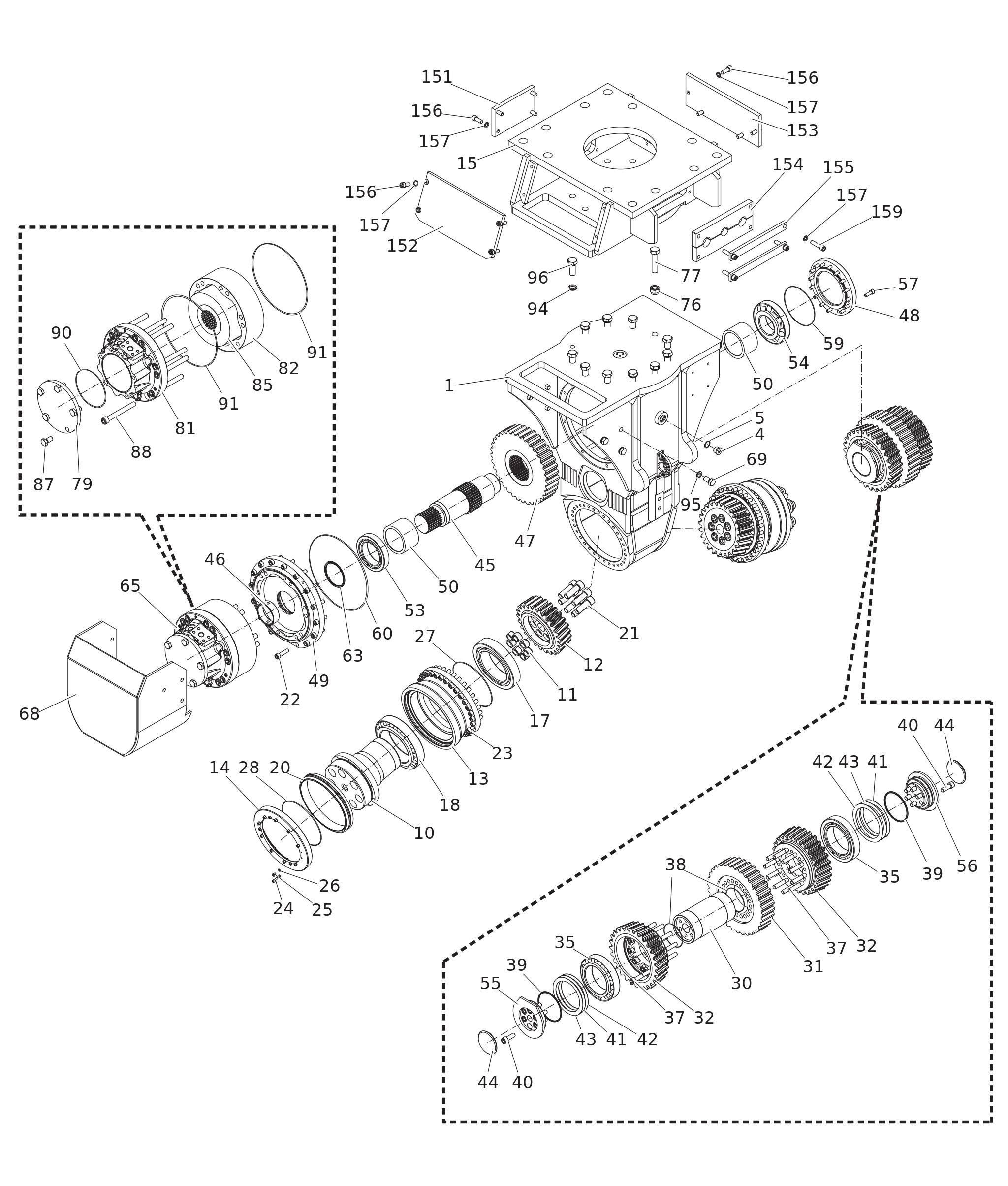

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3311006063 | Gear housing | 1 | ||||
| 3311000631 | Plug | 2 | ||||
| 3311001071 | Seal | 2 | ||||
| 3311006021 | Output shaft | 2 | see Output unit cpl. | |||
| 3311005891 | Bushing | 14 | ||||
| 3311006026 | Bevel gear | 2 | ||||
| 3311006023 | Housing (output shaft) | 2 | see Output unit cpl. | |||
| 3311004279 | Sealing cover | 2 | ||||
| 3311005672 | Intermediate bracket | 1 | ||||
| 3311000756 | Tapered roller bearing | 2 | ||||
| 3311004273 | Tapered roller bearing | 2 | ||||
| 3311004280 | Seal | 2 | ||||
| 3311006207 | Allen screw | 14 | ||||
| 3311000670 | Allen screw | 15 | ||||
| 3311000714 | Allen screw | 64 | ||||
| 3311000731 | Allen screw | 20 | ||||
| 3311000640 | Allen screw | 8 | ||||
| 3311000641 | Usit-ring | 28 | ||||
| 3311000594 | O-ring | 2 | ||||
| 3311004287 | O-ring | 2 | ||||
| 3311006024 | Idle cogwheel pin | 1 | ||||
| 3311006025 | Idle cogwheel | 1 | ||||
| 3311006022 | Bevel gear | 2 | ||||
| 3311006067 | Tapered roller bearing | 2 | ||||
| 3311006036 | Bolt | 20 | ||||
| 3311000760 | O-ring | 2 | ||||
| 3311006216 | Seal | 2 | ||||
| 3311006217 | Allen screw | 12 | ||||
| 3311006234 | Spacer | 5 | ||||
| 3311006235 | Spacer | 5 | ||||
| 3311006236 | Spacer | 5 | ||||
| 3311006029 | Cover | 2 | ||||
| 3311006030 | Drive shaft | 1 | ||||
| 3311001653 | Ring | 1 | ||||
| 3311006031 | Spur gear | 1 | ||||
| 3311004448 | Cover | 1 | ||||
| 3311006032 | Flange (motor) | 1 | ||||
| 3311006033 | Distance sleeve | 2 | ||||
| 3311000646 | Tapered roller bearing | 1 | ||||
| 3311001429 | Tapered roller bearing | 1 | ||||
| 3311006027 | Cover (left) | 1 | ||||
| 3311006028 | Cover (right) | 1 | ||||
| 3311000727 | Allen screw | 16 | ||||
| 3311004460 | O-ring | 1 | ||||
| 3311000715 | O-ring | 1 | ||||
| 3311000650 | Seal | 1 | ||||
| 3311001557 | Motor complete | 1 | ||||
| 3311001534 | Motor complete | 1 | ||||
| 3311001428 | Motor complete | 1 | ||||
| 3311006064 | Cover (motor) | 1 | ||||
| 3311000524 | Hexagon head screw | 6 | ||||
| 3311000663 | Hexagon head nut | 6 | ||||
| 3311001596 | Hexagon head screw | 6 | ||||
| 3311000247 | Cover (motor) | 1 | ||||
| 3311001430 | Distribution housing (motor) | 1 | ||||
| 3311001336 | Cam ring | 1 | ||||
| 3311002389 | Cam ring | 1 | ||||
| 3311002390 | Cam ring | 1 | ||||
| 3311001431 | Clyinder block | 1 | ||||
| 3311000524 | Hexagon head screw | 5 | ||||
| 3311000580 | Allen screw | 12 | ||||
| 3311000558 | O-ring | 1 | ||||
| 3311002372 | O-ring | 2 | ||||
| 3311000532 | Pair of lock washers | 16 | ||||
| 3311000533 | Pair of lock washers | 1 | ||||
| 3311004745 | Hexagon head screw | 4 | ||||
| 3311005858 | Cover | 1 | ||||
| 3311005859 | Cover | 1 | ||||
| 3311005860 | Cover | 1 | ||||
| 3311005861 | Rubber plate | 1 | ||||
| 3311005862 | Flat steel | 2 | ||||
| 3311000529 | Allen screw | 12 | ||||
| 3311000540 | Pair of lock washers | 12 | ||||
| 3311005904 | Allen screw | 4 |
