Spare Parts

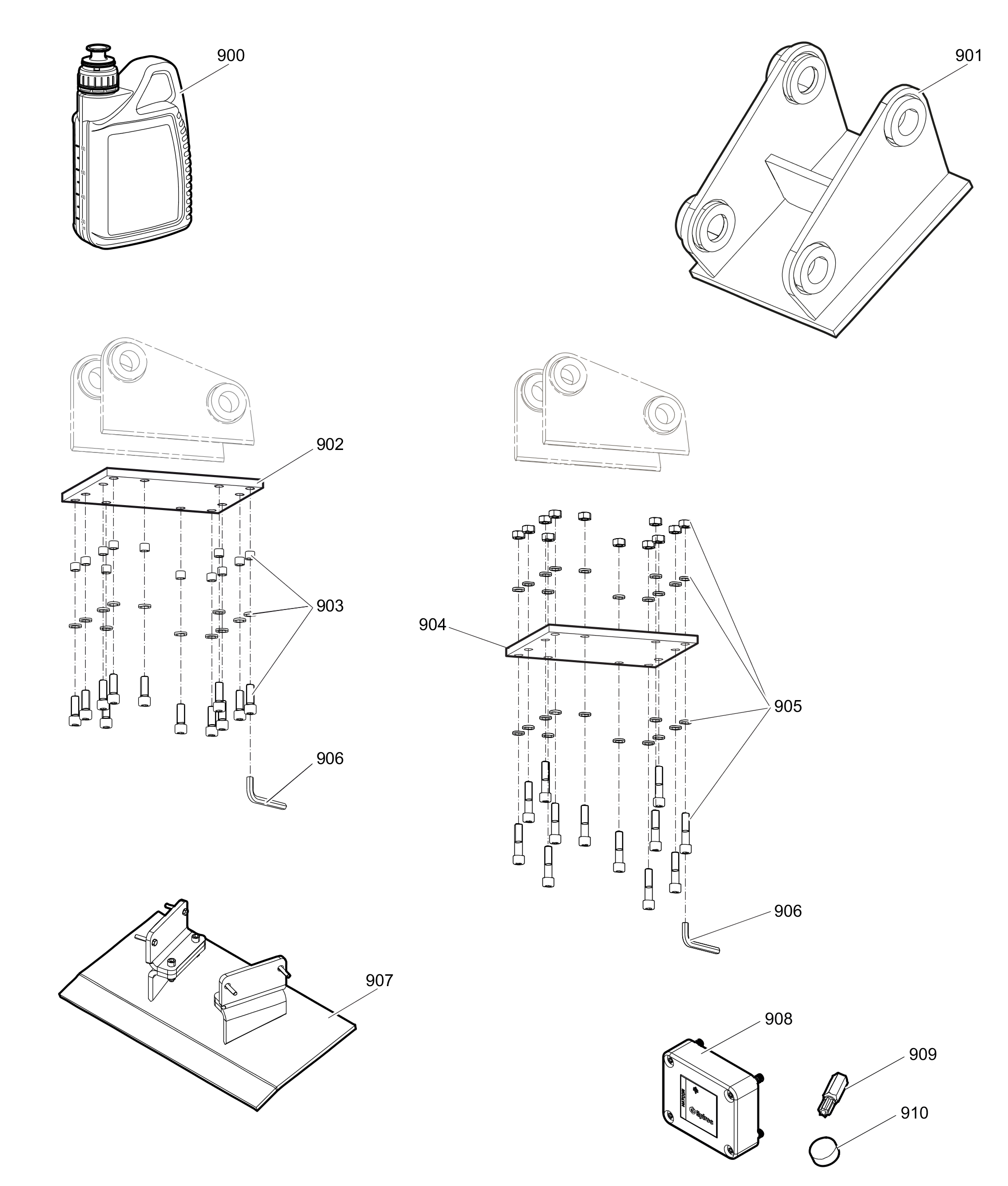

Optional equipment part 1
# | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 00024 | COMPACTOR OIL | 1 | Oil specificationApplication: Engine oilType: Mineral oilViscosity: SAE 15W-40API Service Classification: CI-4 | |||
| 00015 | ADAPTER PLATE | 1 | ||||
| 3363099799 | BASE PLATE WITH THREADED INSERTS | 1 | ||||
| 3363087303 | BOLT KIT | 1 | ||||
| 3363100697 | BASE PLATE WITH THROUGH BORINGS | 1 | ||||
| 3363094575 | BOLT KIT | 1 | ||||
| 3360209445 | ALLEN KEY (22 mm) | 1 | ||||
| 3376699108 | BACKFILL BLADE KIT | 1 | ||||
| 3315442500 | HATCON KIT 1 (3G) | 1 | ||||
| 3315439105 | Security bit | 1 | ||||
| 3315439106 | Magnet | 1 |
