Mechanical

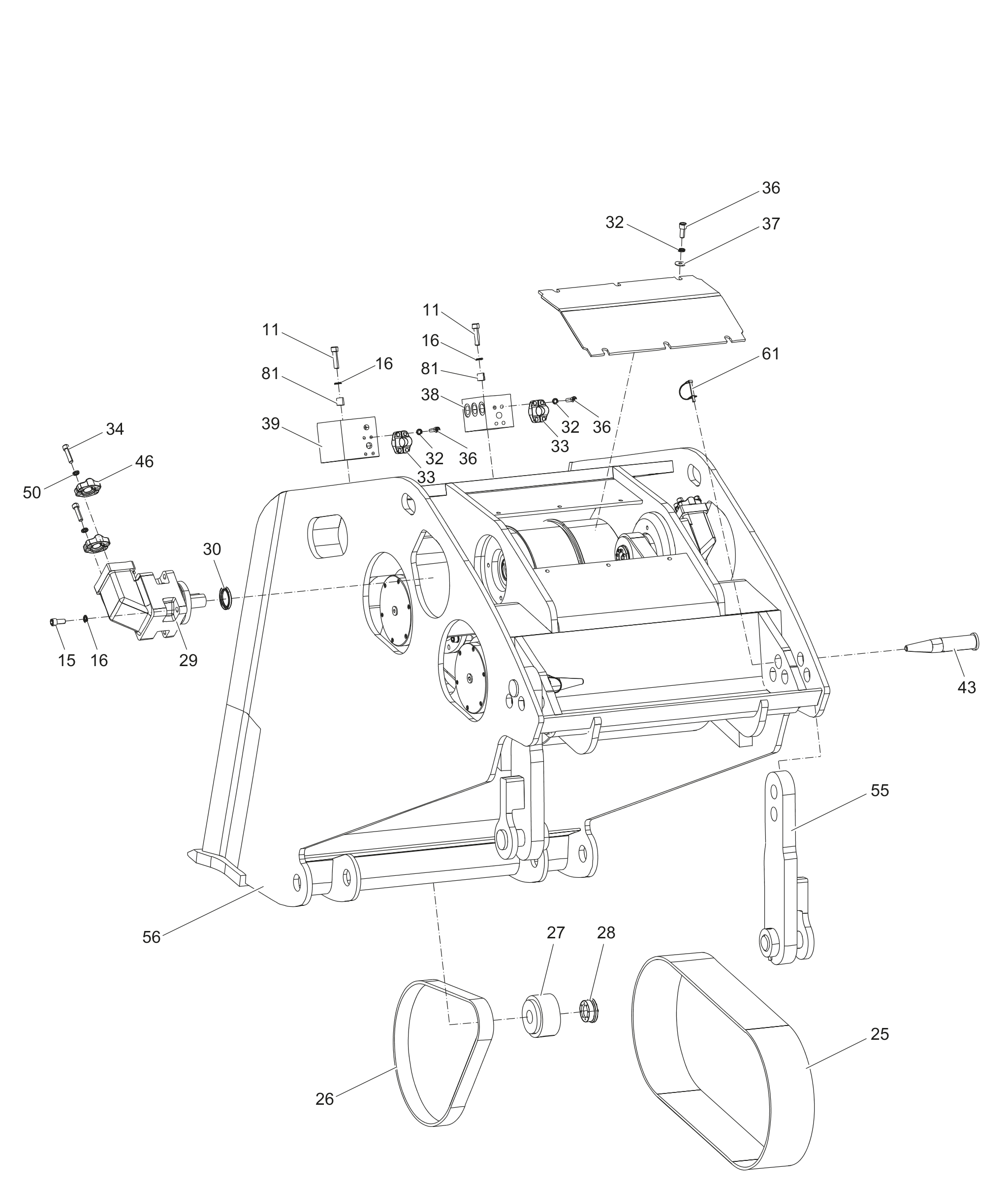

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363119910 | Gear cover | 1 | ||||
| 3363119911 | Allen screw | 8 | ||||
| 3363118444 | Allen screw | 8 | ||||
| 3361333703 | PAIR OF LOCK WASHERS | 16 | ||||
| 3363119913 | Main timing belt | 1 | ||||
| 3363119914 | Secondary timing belt | 2 | ||||
| 3363119915 | Gear | 2 | ||||
| 3363118457 | Conical attachment | 2 | ||||
| 3363119916 | Hydraulic motor | 2 | ||||
| 3363119918 | Seal kit (Hydraulic motor) | 2 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 14 | ||||
| 3361853208 | FLANGE HALF | 4 | ||||
| 3363119919 | Allen screw | 16 | ||||
| 3363118434 | Allen screw | 14 | ||||
| 3363119429 | Washer | 6 | ||||
| 3363119430 | Valve block | 1 | Working valve block | |||
| 3363119431 | Valve block | 1 | Return valve block | |||
| 3363119432 | Pin | 2 | ||||
| 3360992488 | FLANGE HALF | 8 | ||||
| 3362261563 | PAIR OF LOCK WASHERS | 16 | ||||
| 3363119434 | Tensioner fork | 2 | ||||
| 3363119479 | Housing | 1 | ||||
| 3363118420 | Locking pin | 2 | ||||
| 3363118472 | Spacer | 8 |
